D2603-EQUAL-X

D2603-E04-E04-E04-SS-X

$118.89

Attribute: D2603-E04-E04-E04-SS-X (E04MBT-E...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M08X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1

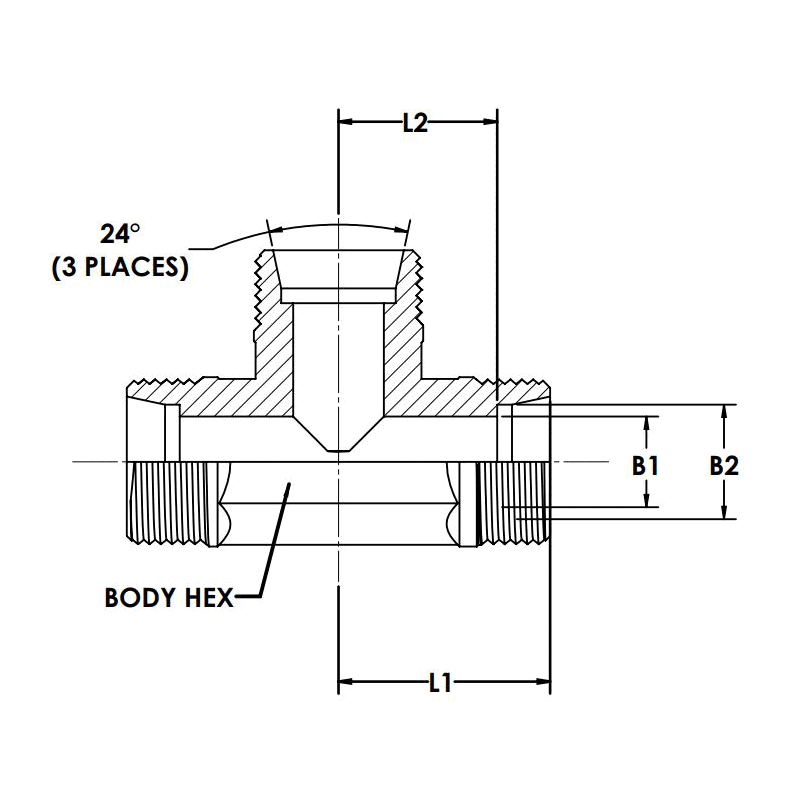

BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	11.0
CENTERLINE LENGTH M3 (MM)	15.0
CENTERLINE LENGTH M4 (MM)	11.0
CENTERLINE LENGTH L1 (MM)	15.0
CENTERLINE LENGTH L2 (MM)	11.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

D2603-E04-E04-E04-X

$11.01

Attribute: D2603-E04-E04-E04-X (E04MBT-E04M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M08X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	11.0
CENTERLINE LENGTH M3 (MM)	15.0
CENTERLINE LENGTH M4 (MM)	11.0
CENTERLINE LENGTH L1 (MM)	15.0
CENTERLINE LENGTH L2 (MM)	11.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

D2603-E06-E06-E06-SS-X

$119.15

Attribute: D2603-E06-E06-E06-SS-X (E06MBT-E...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M10X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	9.5
CENTERLINE LENGTH M3 (MM)	15.0
CENTERLINE LENGTH M4 (MM)	9.5
CENTERLINE LENGTH L1 (MM)	15.0
CENTERLINE LENGTH L2 (MM)	9.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

D2603-E06-E06-E06-X

$11.01

Attribute: D2603-E06-E06-E06-X (E06MBT-E06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M10X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	9.5
CENTERLINE LENGTH M3 (MM)	15.0
CENTERLINE LENGTH M4 (MM)	9.5
CENTERLINE LENGTH L1 (MM)	15.0
CENTERLINE LENGTH L2 (MM)	9.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.321

D2603-E08-E08-E08-SS-X

$129.64

Attribute: D2603-E08-E08-E08-SS-X (E08MBT-E...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M12X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	11.5
CENTERLINE LENGTH M3 (MM)	17.0
CENTERLINE LENGTH M4 (MM)	11.5
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	11.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.048
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.573

D2603-E08-E08-E08-X

$13.23

Attribute: D2603-E08-E08-E08-X (E08MBT-E08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M12X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	11.5
CENTERLINE LENGTH M3 (MM)	17.0
CENTERLINE LENGTH M4 (MM)	11.5
CENTERLINE LENGTH L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	11.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.048
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.573

D2603-E10-E10-E10-SS-X

$528.20

Attribute: D2603-E10-E10-E10-SS-X (E10MBT-E...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M14X1.0
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	16.5
CENTERLINE LENGTH M3 (MM)	22.0
CENTERLINE LENGTH M4 (MM)	16.5
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	16.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.068
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.902

D2603-L06-L06-L06-SS-X

$76.38

Attribute: D2603-L06-L06-L06-SS-X (L06MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	12.0
CENTERLINE LENGTH M3 (MM)	19.0
CENTERLINE LENGTH M4 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	19.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.696

D2603-L06-L06-L06-X

$17.80

Attribute: D2603-L06-L06-L06-X (L06MBT-L06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	12.0
CENTERLINE LENGTH M3 (MM)	19.0
CENTERLINE LENGTH M4 (MM)	12.0
CENTERLINE LENGTH L1 (MM)	19.0
CENTERLINE LENGTH L2 (MM)	12.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.070
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.696

D2603-L08-L08-L08-SS-X

$77.15

Attribute: D2603-L08-L08-L08-SS-X (L08MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.830

D2603-L08-L08-L08-X

$16.17

Attribute: D2603-L08-L08-L08-X (L08MBT-L08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGTH M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	14.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.084
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.830

D2603-L10-L10-L10-SS-X

$87.60

Attribute: D2603-L10-L10-L10-SS-X (L10MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH M3 (MM)	22.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.090

D2603-L10-L10-L10-X

$21.16

Attribute: D2603-L10-L10-L10-X (L10MBT-L10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH M3 (MM)	22.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	22.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.101
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.090

D2603-L12-L12-L12-SS-X

$104.54

Attribute: D2603-L12-L12-L12-SS-X (L12MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	17.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.618

D2603-L12-L12-L12-X

$24.37

Attribute: D2603-L12-L12-L12-X (L12MBT-L12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	17.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.134
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.618

D2603-L15-L15-L15-SS-X

$158.78

Attribute: D2603-L15-L15-L15-SS-X (L15MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	28.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.435

D2603-L15-L15-L15-X

$32.91

Attribute: D2603-L15-L15-L15-X (L15MBT-L15M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	28.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.238
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.435

D2603-L18-L18-L18-SS-X

$198.35

Attribute: D2603-L18-L18-L18-SS-X (L18MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.905

D2603-L18-L18-L18-X

$32.59

Attribute: D2603-L18-L18-L18-X (L18MBT-L18M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.5
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.348
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.905

D2603-L22-L22-L22-SS-X

$308.26

Attribute: D2603-L22-L22-L22-SS-X (L22MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGTH M3 (MM)	35.0
CENTERLINE LENGTH M4 (MM)	27.5
CENTERLINE LENGTH L1 (MM)	35.0
CENTERLINE LENGTH L2 (MM)	27.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.458
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.594

D2603-L22-L22-L22-X

$58.76

Attribute: D2603-L22-L22-L22-X (L22MBT-L22M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGTH M3 (MM)	35.0
CENTERLINE LENGTH M4 (MM)	27.5
CENTERLINE LENGTH L1 (MM)	35.0
CENTERLINE LENGTH L2 (MM)	27.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.458
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.594

D2603-L28-L28-L28-SS-X

$482.92

Attribute: D2603-L28-L28-L28-SS-X (L28MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	30.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.749
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.350

D2603-L28-L28-L28-X

$93.96

Attribute: D2603-L28-L28-L28-X (L28MBT-L28M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	30.5
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	30.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.749
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.350

D2603-L35-L35-L35-SS-X

$910.12

Attribute: D2603-L35-L35-L35-SS-X (L35MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGTH M3 (MM)	45.0
CENTERLINE LENGTH M4 (MM)	34.5
CENTERLINE LENGTH L1 (MM)	45.0
CENTERLINE LENGTH L2 (MM)	34.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.108
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.749

D2603-L35-L35-L35-X

$124.57

Attribute: D2603-L35-L35-L35-X (L35MBT-L35M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGTH M3 (MM)	45.0
CENTERLINE LENGTH M4 (MM)	34.5
CENTERLINE LENGTH L1 (MM)	45.0
CENTERLINE LENGTH L2 (MM)	34.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.108
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.749

D2603-L42-L42-L42-SS-X

$797.38

Attribute: D2603-L42-L42-L42-SS-X (L42MBT-L...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGTH M3 (MM)	51.0
CENTERLINE LENGTH M4 (MM)	40.0
CENTERLINE LENGTH L1 (MM)	51.0
CENTERLINE LENGTH L2 (MM)	40.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.656
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.653

D2603-L42-L42-L42-X

$196.55

Attribute: D2603-L42-L42-L42-X (L42MBT-L42M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGTH M3 (MM)	51.0
CENTERLINE LENGTH M4 (MM)	40.0
CENTERLINE LENGTH L1 (MM)	51.0
CENTERLINE LENGTH L2 (MM)	40.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.656
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	23.653

D2603-S06-S06-S06-SS-X

$81.76

Attribute: D2603-S06-S06-S06-SS-X (S06MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGTH M3 (MM)	23.0
CENTERLINE LENGTH M4 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	23.0
CENTERLINE LENGTH L2 (MM)	16.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.977

D2603-S06-S06-S06-X

$18.30

Attribute: D2603-S06-S06-S06-X (S06MBT-S06M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGTH M3 (MM)	23.0
CENTERLINE LENGTH M4 (MM)	16.0
CENTERLINE LENGTH L1 (MM)	23.0
CENTERLINE LENGTH L2 (MM)	16.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.977

D2603-S08-S08-S08-SS-X

$86.92

Attribute: D2603-S08-S08-S08-SS-X (S08MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	17.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.271

D2603-S08-S08-S08-X

$22.78

Attribute: D2603-S08-S08-S08-X (S08MBT-S08M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	17.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.271

D2603-S10-S10-S10-SS-X

$106.00

Attribute: D2603-S10-S10-S10-SS-X (S10MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH M3 (MM)	25.0
CENTERLINE LENGTH M4 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	25.0
CENTERLINE LENGTH L2 (MM)	17.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.738

D2603-S10-S10-S10-X

$25.31

Attribute: D2603-S10-S10-S10-X (S10MBT-S10M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGTH M3 (MM)	25.0
CENTERLINE LENGTH M4 (MM)	17.5
CENTERLINE LENGTH L1 (MM)	25.0
CENTERLINE LENGTH L2 (MM)	17.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.738

D2603-S12-S12-S12-SS-X

$137.33

Attribute: D2603-S12-S12-S12-SS-X (S12MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.256

D2603-S12-S12-S12-X

$27.44

Attribute: D2603-S12-S12-S12-X (S12MBT-S12M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.5
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.256

D2603-S14-S14-S14-SS-X

$142.52

Attribute: D2603-S14-S14-S14-SS-X (S14MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-S14-S14-S14-X

$50.01

Attribute: D2603-S14-S14-S14-X (S14MBT-S14M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.308
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-S16-S16-S16-SS-X

$205.00

Attribute: D2603-S16-S16-S16-SS-X (S16MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGTH M3 (MM)	33.0
CENTERLINE LENGTH M4 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	33.0
CENTERLINE LENGTH L2 (MM)	24.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.432
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.350

D2603-S16-S16-S16-X

$41.05

Attribute: D2603-S16-S16-S16-X (S16MBT-S16M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGTH M3 (MM)	33.0
CENTERLINE LENGTH M4 (MM)	24.5
CENTERLINE LENGTH L1 (MM)	33.0
CENTERLINE LENGTH L2 (MM)	24.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.432
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.350

D2603-S20-S20-S20-SS-X

$309.50

Attribute: D2603-S20-S20-S20-SS-X (S20MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH M3 (MM)	37.0
CENTERLINE LENGTH M4 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	26.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.617
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.157

D2603-S20-S20-S20-X

$68.83

Attribute: D2603-S20-S20-S20-X (S20MBT-S20M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGTH M3 (MM)	37.0
CENTERLINE LENGTH M4 (MM)	26.5
CENTERLINE LENGTH L1 (MM)	37.0
CENTERLINE LENGTH L2 (MM)	26.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.617
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.157

D2603-S25-S25-S25-SS-X

$479.59

Attribute: D2603-S25-S25-S25-SS-X (S25MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	42.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.072

D2603-S25-S25-S25-X

$95.71

Attribute: D2603-S25-S25-S25-X (S25MBT-S25M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	42.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.051
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.072

D2603-S30-S30-S30-SS-X

$487.64

Attribute: D2603-S30-S30-S30-SS-X (S30MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	35.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.606
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.041

D2603-S30-S30-S30-X

$125.33

Attribute: D2603-S30-S30-S30-X (S30MBT-S30M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	35.5
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	35.5
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.606
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.041

D2603-S38-S38-S38-SS-X

$1,283.32

Attribute: D2603-S38-S38-S38-SS-X (S38MBT-S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	41.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	41.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.509
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.523

D2603-S38-S38-S38-X

$194.20

Attribute: D2603-S38-S38-S38-X (S38MBT-S38M...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	41.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	41.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.509
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.523

ID	10164728
Category	DIN Metric Tube Fittings

Description

Description

Variations (47)

D2603-E04-E04-E04-SS-X

D2603-E04-E04-E04-X

D2603-E06-E06-E06-SS-X

D2603-E06-E06-E06-X

D2603-E08-E08-E08-SS-X

D2603-E08-E08-E08-X

D2603-E10-E10-E10-SS-X

D2603-L06-L06-L06-SS-X

D2603-L06-L06-L06-X

D2603-L08-L08-L08-SS-X

D2603-L08-L08-L08-X

D2603-L10-L10-L10-SS-X

D2603-L10-L10-L10-X

D2603-L12-L12-L12-SS-X

D2603-L12-L12-L12-X

D2603-L15-L15-L15-SS-X

D2603-L15-L15-L15-X

D2603-L18-L18-L18-SS-X

D2603-L18-L18-L18-X

D2603-L22-L22-L22-SS-X

D2603-L22-L22-L22-X

D2603-L28-L28-L28-SS-X

D2603-L28-L28-L28-X

D2603-L35-L35-L35-SS-X

D2603-L35-L35-L35-X

D2603-L42-L42-L42-SS-X

D2603-L42-L42-L42-X

D2603-S06-S06-S06-SS-X

D2603-S06-S06-S06-X

D2603-S08-S08-S08-SS-X

D2603-S08-S08-S08-X

D2603-S10-S10-S10-SS-X

D2603-S10-S10-S10-X

D2603-S12-S12-S12-SS-X

D2603-S12-S12-S12-X

D2603-S14-S14-S14-SS-X

D2603-S14-S14-S14-X

D2603-S16-S16-S16-SS-X

D2603-S16-S16-S16-X

D2603-S20-S20-S20-SS-X

D2603-S20-S20-S20-X

D2603-S25-S25-S25-SS-X

D2603-S25-S25-S25-X

D2603-S30-S30-S30-SS-X

D2603-S30-S30-S30-X

D2603-S38-S38-S38-SS-X

D2603-S38-S38-S38-X

General Attributes

PDF Documents
