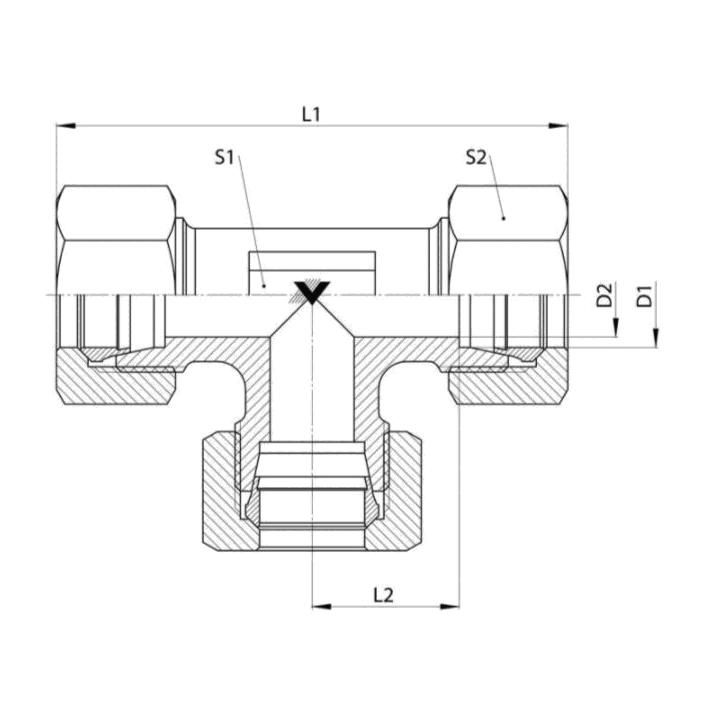

D2603-EQUAL

D2603-E04-E04-E04

$17.75

Attribute: D2603-E04-E04-E04 (E04MBT-E04MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 3 THREAD SIZE	M08X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
HEX C 2 (MM)	10.0
HEX C 3 (MM)	10.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.666

D2603-E04-E04-E04-SS

$162.76

Attribute: D2603-E04-E04-E04-SS (E04MBT-E04...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 3 THREAD SIZE	M08X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
HEX C 2 (MM)	10.0
HEX C 3 (MM)	10.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.666

D2603-E06-E06-E06

$17.58

Attribute: D2603-E06-E06-E06 (E06MBT-E06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M10X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
HEX C 3 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.83

D2603-E06-E06-E06-SS

$176.93

Attribute: D2603-E06-E06-E06-SS (E06MBT-E06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M10X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
HEX C 3 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGTH M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	21.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.83

D2603-E08-E08-E08

$20.15

Attribute: D2603-E08-E08-E08 (E08MBT-E08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH M3 (MM)	23.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	23.0
CENTERLINE LENGTH L2 (MM)	17.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.107
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.179

D2603-E08-E08-E08-SS

$180.80

Attribute: D2603-E08-E08-E08-SS (E08MBT-E08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGTH M3 (MM)	23.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH L1 (MM)	23.0
CENTERLINE LENGTH L2 (MM)	17.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.107
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.179

D2603-L06-L06-L06

$27.05

Attribute: D2603-L06-L06-L06 (L06MBT-L06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGTH M3 (MM)	27.0
CENTERLINE LENGTH M4 (MM)	19.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	19.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.157
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.569

D2603-L06-L06-L06-SS

$117.09

Attribute: D2603-L06-L06-L06-SS (L06MBT-L06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M12X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
HEX C 3 (MM)	14.0
CENTERLINE LENGTH M1 (MM)	27.0
CENTERLINE LENGTH M2 (MM)	19.0
CENTERLINE LENGTH M3 (MM)	27.0
CENTERLINE LENGTH M4 (MM)	19.0
CENTERLINE LENGTH L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	19.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.157
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.569

D2603-L08-L08-L08

$30.90

Attribute: D2603-L08-L08-L08 (L08MBT-L08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.209
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.256

D2603-L08-L08-L08-SS

$121.49

Attribute: D2603-L08-L08-L08-SS (L08MBT-L08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGTH M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.209
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.256

D2603-L10-L10-L10

$32.43

Attribute: D2603-L10-L10-L10 (L10MBT-L10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.255
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-L10-L10-L10-SS

$147.23

Attribute: D2603-L10-L10-L10-SS (L10MBT-L10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGTH M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH L1 (MM)	30.0
CENTERLINE LENGTH L2 (MM)	22.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.255
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.748

D2603-L12-L12-L12

$39.01

Attribute: D2603-L12-L12-L12 (L12MBT-L12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L12-L12-L12-SS

$176.41

Attribute: D2603-L12-L12-L12-SS (L12MBT-L12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.339
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.695

D2603-L15-L15-L15

$53.39

Attribute: D2603-L15-L15-L15 (L15MBT-L15MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.565
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.014

D2603-L15-L15-L15-SS

$259.79

Attribute: D2603-L15-L15-L15-SS (L15MBT-L15...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGTH M3 (MM)	36.5
CENTERLINE LENGTH M4 (MM)	28.0
CENTERLINE LENGTH L1 (MM)	36.5
CENTERLINE LENGTH L2 (MM)	28.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.565
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.014

D2603-L18-L18-L18

$69.51

Attribute: D2603-L18-L18-L18 (L18MBT-L18MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.829
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.937

D2603-L18-L18-L18-SS

$395.27

Attribute: D2603-L18-L18-L18-SS (L18MBT-L18...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
HEX C 3 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	31.0
CENTERLINE LENGTH M3 (MM)	40.5
CENTERLINE LENGTH M4 (MM)	31.0
CENTERLINE LENGTH L1 (MM)	40.5
CENTERLINE LENGTH L2 (MM)	31.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.829
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.937

D2603-L22-L22-L22

$98.49

Attribute: D2603-L22-L22-L22 (L22MBT-L22MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.102
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.694

D2603-L22-L22-L22-SS

$559.05

Attribute: D2603-L22-L22-L22-SS (L22MBT-L22...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	45.5
CENTERLINE LENGTH M2 (MM)	35.0
CENTERLINE LENGTH M3 (MM)	45.5
CENTERLINE LENGTH M4 (MM)	35.0
CENTERLINE LENGTH L1 (MM)	45.5
CENTERLINE LENGTH L2 (MM)	35.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.102
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.694

D2603-L28-L28-L28

$165.14

Attribute: D2603-L28-L28-L28 (L28MBT-L28MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.486
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.041

D2603-L28-L28-L28-SS

$945.24

Attribute: D2603-L28-L28-L28-SS (L28MBT-L28...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
HEX C 3 (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	38.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	38.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.486
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.041

D2603-L35-L35-L35

$219.04

Attribute: D2603-L35-L35-L35 (L35MBT-L35MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.256
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.522

D2603-L35-L35-L35-SS

$1,496.17

Attribute: D2603-L35-L35-L35-SS (L35MBT-L35...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 3 THREAD SIZE	M45X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	45.0
CENTERLINE LENGTH M3 (MM)	57.0
CENTERLINE LENGTH M4 (MM)	45.0
CENTERLINE LENGTH L1 (MM)	57.0
CENTERLINE LENGTH L2 (MM)	45.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.256
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	28.522

D2603-L42-L42-L42

$310.65

Attribute: D2603-L42-L42-L42 (L42MBT-L42MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.399
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	42.905

D2603-L42-L42-L42-SS

$2,015.92

Attribute: D2603-L42-L42-L42-SS (L42MBT-L42...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	63.0
CENTERLINE LENGTH M2 (MM)	51.0
CENTERLINE LENGTH M3 (MM)	63.0
CENTERLINE LENGTH M4 (MM)	51.0
CENTERLINE LENGTH L1 (MM)	63.0
CENTERLINE LENGTH L2 (MM)	51.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.399
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	42.905

D2603-S06-S06-S06

$31.79

Attribute: D2603-S06-S06-S06 (S06MBT-S06MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.0
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.259
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.541

D2603-S06-S06-S06-SS

$148.62

Attribute: D2603-S06-S06-S06-SS (S06MBT-S06...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
HEX C 3 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGTH M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.0
CENTERLINE LENGTH L1 (MM)	31.0
CENTERLINE LENGTH L2 (MM)	23.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.259
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.541

D2603-S08-S08-S08

$34.86

Attribute: D2603-S08-S08-S08 (S08MBT-S08MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.08

D2603-S08-S08-S08-SS

$167.83

Attribute: D2603-S08-S08-S08-SS (S08MBT-S08...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
HEX C 3 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	24.0
CENTERLINE LENGTH M3 (MM)	32.0
CENTERLINE LENGTH M4 (MM)	24.0
CENTERLINE LENGTH L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	24.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.08

D2603-S10-S10-S10

$39.48

Attribute: D2603-S10-S10-S10 (S10MBT-S10MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH M4 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.431
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.108

D2603-S10-S10-S10-SS

$198.94

Attribute: D2603-S10-S10-S10-SS (S10MBT-S10...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
HEX C 3 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	25.0
CENTERLINE LENGTH M3 (MM)	34.0
CENTERLINE LENGTH M4 (MM)	25.0
CENTERLINE LENGTH L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.431
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.108

D2603-S12-S12-S12

$43.10

Attribute: D2603-S12-S12-S12 (S12MBT-S12MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.538
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.565

D2603-S12-S12-S12-SS

$254.75

Attribute: D2603-S12-S12-S12-SS (S12MBT-S12...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
HEX C 3 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	29.0
CENTERLINE LENGTH M3 (MM)	38.0
CENTERLINE LENGTH M4 (MM)	29.0
CENTERLINE LENGTH L1 (MM)	38.0
CENTERLINE LENGTH L2 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.538
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.565

D2603-S14-S14-S14

$79.03

Attribute: D2603-S14-S14-S14 (S14MBT-S14MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.713
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.052

D2603-S14-S14-S14-SS

$287.10

Attribute: D2603-S14-S14-S14-SS (S14MBT-S14...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
HEX C 3 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGTH M3 (MM)	40.0
CENTERLINE LENGTH M4 (MM)	30.0
CENTERLINE LENGTH L1 (MM)	40.0
CENTERLINE LENGTH L2 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.713
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.052

D2603-S16-S16-S16

$71.81

Attribute: D2603-S16-S16-S16 (S16MBT-S16MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.931
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.132

D2603-S16-S16-S16-SS

$359.82

Attribute: D2603-S16-S16-S16-SS (S16MBT-S16...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 3 THREAD SIZE	M24X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
HEX C 3 (MM)	30.0
CENTERLINE LENGTH M1 (MM)	43.0
CENTERLINE LENGTH M2 (MM)	33.0
CENTERLINE LENGTH M3 (MM)	43.0
CENTERLINE LENGTH M4 (MM)	33.0
CENTERLINE LENGTH L1 (MM)	43.0
CENTERLINE LENGTH L2 (MM)	33.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.931
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.132

D2603-S20-S20-S20

$112.96

Attribute: D2603-S20-S20-S20 (S20MBT-S20MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.417
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.424

D2603-S20-S20-S20-SS

$566.13

Attribute: D2603-S20-S20-S20-SS (S20MBT-S20...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 3 THREAD SIZE	M30X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
HEX C 3 (MM)	36.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	37.0
CENTERLINE LENGTH M3 (MM)	49.0
CENTERLINE LENGTH M4 (MM)	37.0
CENTERLINE LENGTH L1 (MM)	49.0
CENTERLINE LENGTH L2 (MM)	37.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.417
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.424

D2603-S25-S25-S25

$173.98

Attribute: D2603-S25-S25-S25 (S25MBT-S25MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.597
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.085

D2603-S25-S25-S25-SS

$940.15

Attribute: D2603-S25-S25-S25-SS (S25MBT-S25...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 3 THREAD SIZE	M36X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	36.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
HEX C 3 (MM)	46.0
CENTERLINE LENGTH M1 (MM)	55.0
CENTERLINE LENGTH M2 (MM)	42.0
CENTERLINE LENGTH M3 (MM)	55.0
CENTERLINE LENGTH M4 (MM)	42.0
CENTERLINE LENGTH L1 (MM)	55.0
CENTERLINE LENGTH L2 (MM)	42.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.597
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	24.085

D2603-S30-S30-S30

$235.89

Attribute: D2603-S30-S30-S30 (S30MBT-S30MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	3.324
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	34.062

D2603-S30-S30-S30-SS

$1,368.80

Attribute: D2603-S30-S30-S30-SS (S30MBT-S30...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 3 THREAD SIZE	M42X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
HEX C 3 (MM)	50.0
CENTERLINE LENGTH M1 (MM)	63.2
CENTERLINE LENGTH M2 (MM)	49.0
CENTERLINE LENGTH M3 (MM)	63.2
CENTERLINE LENGTH M4 (MM)	49.0
CENTERLINE LENGTH L1 (MM)	63.2
CENTERLINE LENGTH L2 (MM)	49.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	3.324
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	34.062

D2603-S38-S38-S38

$335.96

Attribute: D2603-S38-S38-S38 (S38MBT-S38MBT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	4.99
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	54.418

D2603-S38-S38-S38-SS

$2,203.81

Attribute: D2603-S38-S38-S38-SS (S38MBT-S38...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 3 THREAD SIZE	M52X2.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	50.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
HEX C 3 (MM)	60.0
CENTERLINE LENGTH M1 (MM)	72.5
CENTERLINE LENGTH M2 (MM)	57.0
CENTERLINE LENGTH M3 (MM)	72.5
CENTERLINE LENGTH M4 (MM)	57.0
CENTERLINE LENGTH L1 (MM)	72.5
CENTERLINE LENGTH L2 (MM)	57.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	4.99
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	54.418

ID	10164679
Category	DIN Metric Tube Fittings

Description

Description

Variations (46)

D2603-E04-E04-E04

D2603-E04-E04-E04-SS

D2603-E06-E06-E06

D2603-E06-E06-E06-SS

D2603-E08-E08-E08

D2603-E08-E08-E08-SS

D2603-L06-L06-L06

D2603-L06-L06-L06-SS

D2603-L08-L08-L08

D2603-L08-L08-L08-SS

D2603-L10-L10-L10

D2603-L10-L10-L10-SS

D2603-L12-L12-L12

D2603-L12-L12-L12-SS

D2603-L15-L15-L15

D2603-L15-L15-L15-SS

D2603-L18-L18-L18

D2603-L18-L18-L18-SS

D2603-L22-L22-L22

D2603-L22-L22-L22-SS

D2603-L28-L28-L28

D2603-L28-L28-L28-SS

D2603-L35-L35-L35

D2603-L35-L35-L35-SS

D2603-L42-L42-L42

D2603-L42-L42-L42-SS

D2603-S06-S06-S06

D2603-S06-S06-S06-SS

D2603-S08-S08-S08

D2603-S08-S08-S08-SS

D2603-S10-S10-S10

D2603-S10-S10-S10-SS

D2603-S12-S12-S12

D2603-S12-S12-S12-SS

D2603-S14-S14-S14

D2603-S14-S14-S14-SS

D2603-S16-S16-S16

D2603-S16-S16-S16-SS

D2603-S20-S20-S20

D2603-S20-S20-S20-SS

D2603-S25-S25-S25

D2603-S25-S25-S25-SS

D2603-S30-S30-S30

D2603-S30-S30-S30-SS

D2603-S38-S38-S38

D2603-S38-S38-S38-SS

General Attributes

PDF Documents
