D2605

D2605-E06-02-E06-SS

$142.35

Attribute: D2605-E06-02-E06-SS (E06MBT-02MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 3 THREAD SIZE	M10X1.0
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1

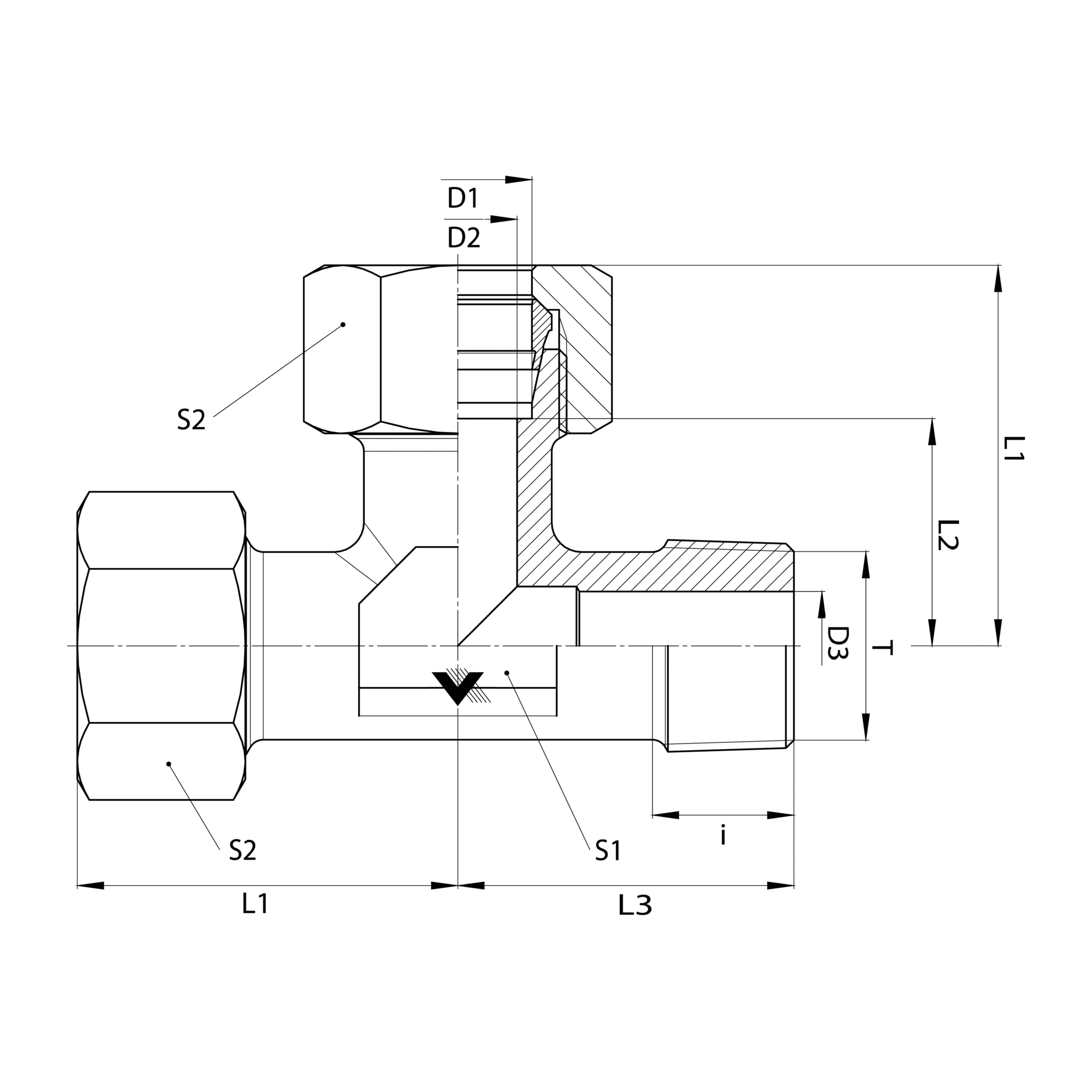

BODY HEX (MM)	9.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT M3 (MM)	15.0
CENTERLINE LENGTH M4 (MM)	9.5
CENTERLINE LENGTH M5 (MM)	10.0
CENTERLINE LENGTH L1 (MM)	21.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.751

D2605-L08-04-L08-SS

$166.94

Attribute: D2605-L08-04-L08-SS (L08MBT-04MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 3 THREAD SIZE	M14X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGHT M3 (MM)	21.0
CENTERLINE LENGTH M4 (MM)	14.0
CENTERLINE LENGTH M5 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	29.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.179

D2605-L10-04-L10-SS

$184.42

Attribute: D2605-L10-04-L10-SS (L10MBT-04MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGHT M3 (MM)	22.0
CENTERLINE LENGTH M4 (MM)	15.0
CENTERLINE LENGTH M5 (MM)	15.0
CENTERLINE LENGTH L1 (MM)	30.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.216
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.611

D2605-L12-06-L12

$229.53

Attribute: D2605-L12-06-L12 (L12MBT-06MP-L1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH M5 (MM)	15.5
CENTERLINE LENGTH L1 (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.291
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.464

D2605-L12-06-L12-SS

$222.40

Attribute: D2605-L12-06-L12-SS (L12MBT-06MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH M5 (MM)	15.5
CENTERLINE LENGTH L1 (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.291
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.464

D2605-L15-08-L15-SS

$305.37

Attribute: D2605-L15-08-L15-SS (L15MBT-08MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	36.5
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGHT M3 (MM)	28.0
CENTERLINE LENGTH M4 (MM)	21.0
CENTERLINE LENGTH M5 (MM)	13.5
CENTERLINE LENGTH L1 (MM)	36.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.501
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.808

D2605-L18-08-L18-SS

$494.32

Attribute: D2605-L18-08-L18-SS (L18MBT-08MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 3 THREAD SIZE	M26X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
CENTERLINE LENGTH M1 (MM)	40.5
CENTERLINE LENGTH M2 (MM)	36.0
CENTERLINE LENGHT M3 (MM)	31.0
CENTERLINE LENGTH M4 (MM)	23.5
CENTERLINE LENGTH M5 (MM)	13.5
CENTERLINE LENGTH L1 (MM)	40.5
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.440

D2605-S08-04-S08-SS

$175.76

Attribute: D2605-S08-04-S08-SS (S08MBT-04MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY08MM TUBE OD
CONNECTION 3 THREAD SIZE	M16X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
CENTERLINE LENGTH M1 (MM)	32.0
CENTERLINE LENGTH M2 (MM)	27.0
CENTERLINE LENGHT M3 (MM)	24.0
CENTERLINE LENGTH M4 (MM)	17.0
CENTERLINE LENGTH M5 (MM)	13.0
CENTERLINE LENGTH L1 (MM)	32.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.267
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.839

D2605-S10-06-S10-SS

$214.17

Attribute: D2605-S10-06-S10-SS (S10MBT-06MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY10MM TUBE OD
CONNECTION 3 THREAD SIZE	M18X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
CENTERLINE LENGTH M1 (MM)	34.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	25.0
CENTERLINE LENGTH M4 (MM)	17.5
CENTERLINE LENGTH M5 (MM)	14.0
CENTERLINE LENGTH L1 (MM)	34.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.364
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.746

D2605-S12-06-S12-SS

$250.45

Attribute: D2605-S12-06-S12-SS (S12MBT-06MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY12MM TUBE OD
CONNECTION 3 THREAD SIZE	M20X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	28.0
CENTERLINE LENGHT M3 (MM)	29.0
CENTERLINE LENGTH M4 (MM)	21.5
CENTERLINE LENGTH M5 (MM)	15.5
CENTERLINE LENGTH L1 (MM)	38.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.434
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.833

D2605-S14-08-S14

$148.38

Attribute: D2605-S14-08-S14 (S14MBT-08MP-S1...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGHT M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH M5 (MM)	14.5
CENTERLINE LENGTH L1 (MM)	40.0
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.604
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.523

D2605-S14-08-S14-SS

$307.32

Attribute: D2605-S14-08-S14-SS (S14MBT-08MP...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
CONNECTION 3 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 3 TUBE SIZE	HEAVY14MM TUBE OD
CONNECTION 3 THREAD SIZE	M22X1.5
CONNECTION 3 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
CENTERLINE LENGTH M1 (MM)	40.0
CENTERLINE LENGTH M2 (MM)	34.0
CENTERLINE LENGHT M3 (MM)	30.0
CENTERLINE LENGTH M4 (MM)	22.0
CENTERLINE LENGTH M5 (MM)	14.5
CENTERLINE LENGTH L1 (MM)	40.0
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.604
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.523

ID	10164664
Category	DIN Metric Tube Fittings

Description

Description

Variations (12)

D2605-E06-02-E06-SS

D2605-L08-04-L08-SS

D2605-L10-04-L10-SS

D2605-L12-06-L12

D2605-L12-06-L12-SS

D2605-L15-08-L15-SS

D2605-L18-08-L18-SS

D2605-S08-04-S08-SS

D2605-S10-06-S10-SS

D2605-S12-06-S12-SS

D2605-S14-08-S14

D2605-S14-08-S14-SS

General Attributes

PDF Documents
