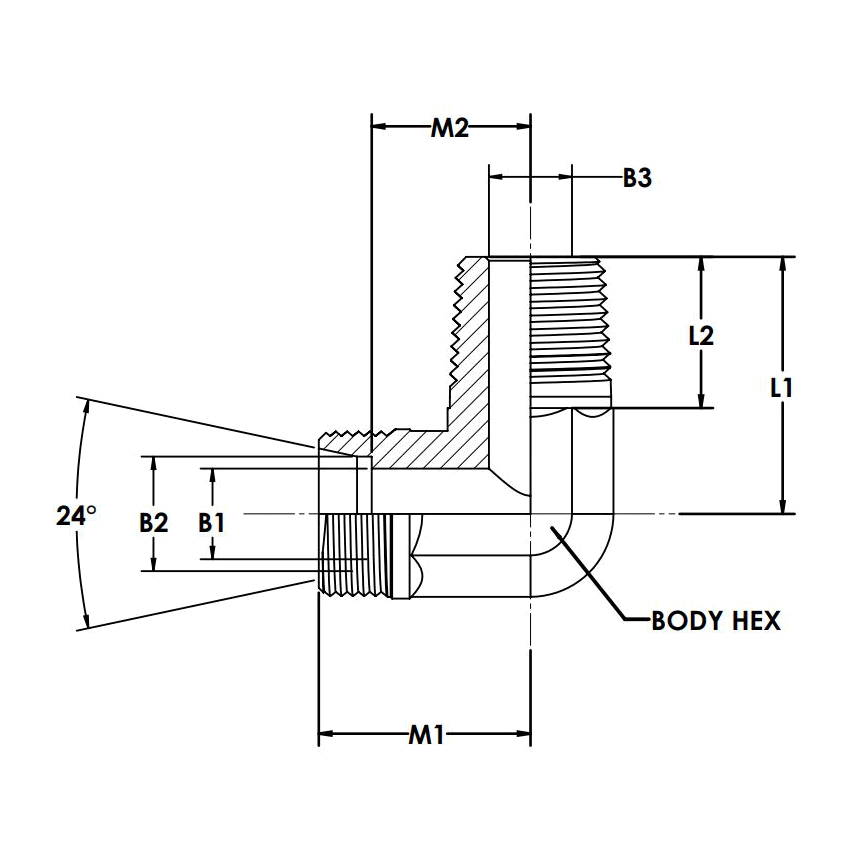

D2501-X

D2501-E04-02-SS-X

$80.82

Attribute: D2501-E04-02-SS-X (E04MBT-02MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	11.0
CENTERLINE LENGHT L1 (MM)	17.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.230

D2501-E06-02-SS-X

$87.10

Attribute: D2501-E06-02-SS-X (E06MBT-02MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	9.5
CENTERLINE LENGHT L1 (MM)	17.1
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.026
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.231

D2501-E06-02-X

$12.41

Attribute: D2501-E06-02-X (E06MBT-02MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	9.0
CENTERLINE LENGTH M1 (MM)	15.0
CENTERLINE LENGTH M2 (MM)	9.5
CENTERLINE LENGHT L1 (MM)	17.1
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.026
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.231

D2501-E08-02-SS-X

$88.12

Attribute: D2501-E08-02-SS-X (E08MBT-02MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	11.5
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.438

D2501-E08-02-X

$14.08

Attribute: D2501-E08-02-X (E08MBT-02MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	17.0
CENTERLINE LENGTH M2 (MM)	11.5
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.438

D2501-L06-02-SS-X

$89.95

Attribute: D2501-L06-02-SS-X (L06MBT-02MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	12.0
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.048
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D2501-L06-02-X

$13.61

Attribute: D2501-L06-02-X (L06MBT-02MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	19.0
CENTERLINE LENGTH M2 (MM)	12.0
CENTERLINE LENGHT L1 (MM)	20.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.048
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D2501-L06-04-SS-X

$96.02

Attribute: D2501-L06-04-SS-X (L06MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.680

D2501-L06-04-X

$25.39

Attribute: D2501-L06-04-X (L06MBT-04MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	23.0
CENTERLINE LENGTH M2 (MM)	16.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.079
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.680

D2501-L06-06-SS-X

$132.20

Attribute: D2501-L06-06-SS-X (L06MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	18.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.957

D2501-L08-02-SS-X

$100.58

Attribute: D2501-L08-02-SS-X (L08MBT-02MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	24.0
CENTERLINE LENGTH L2 (MM)	10.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.066
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.593

D2501-L08-04-SS-X

$110.82

Attribute: D2501-L08-04-SS-X (L08MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D2501-L08-04-X

$15.83

Attribute: D2501-L08-04-X (L08MBT-04MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	21.0
CENTERLINE LENGTH M2 (MM)	14.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D2501-L08-06-SS-X

$132.15

Attribute: D2501-L08-06-SS-X (L08MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2501-L08-08-SS-X

$155.16

Attribute: D2501-L08-08-SS-X (L08MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2501-L10-04-SS-X

$122.72

Attribute: D2501-L10-04-SS-X (L10MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

D2501-L10-04-X

$21.93

Attribute: D2501-L10-04-X (L10MBT-04MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.842

D2501-L10-06-SS-X

$129.34

Attribute: D2501-L10-06-SS-X (L10MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	22.0
CENTERLINE LENGTH M2 (MM)	15.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.867

D2501-L10-08-SS-X

$148.62

Attribute: D2501-L10-08-SS-X (L10MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2501-L12-04-SS-X

$129.34

Attribute: D2501-L12-04-SS-X (L12MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D2501-L12-04-X

$31.41

Attribute: D2501-L12-04-X (L12MBT-04MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D2501-L12-06-SS-X

$129.34

Attribute: D2501-L12-06-SS-X (L12MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.115
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D2501-L12-06-X

$26.11

Attribute: D2501-L12-06-X (L12MBT-06MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.115
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.231

D2501-L12-08-SS-X

$154.43

Attribute: D2501-L12-08-SS-X (L12MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D2501-L12-08-X

$54.28

Attribute: D2501-L12-08-X (L12MBT-08MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D2501-L15-08-SS-X

$166.98

Attribute: D2501-L15-08-SS-X (L15MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D2501-L15-08-X

$34.91

Attribute: D2501-L15-08-X (L15MBT-08MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	28.0
CENTERLINE LENGTH M2 (MM)	21.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

D2501-L18-08-SS-X

$202.27

Attribute: D2501-L18-08-SS-X (L18MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGHT L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.286
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.023

D2501-L18-08-X

$47.03

Attribute: D2501-L18-08-X (L18MBT-08MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	31.0
CENTERLINE LENGTH M2 (MM)	23.5
CENTERLINE LENGHT L1 (MM)	36.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.286
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.023

D2501-L22-08-SS-X

$251.21

Attribute: D2501-L22-08-SS-X (L22MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2501-L22-12-SS-X

$251.21

Attribute: D2501-L22-12-SS-X (L22MBT-12MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGHT L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.435

D2501-L22-12-X

$70.33

Attribute: D2501-L22-12-X (L22MBT-12MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	35.0
CENTERLINE LENGTH M2 (MM)	27.5
CENTERLINE LENGHT L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.435

D2501-L28-16-SS-X

$499.99

Attribute: D2501-L28-16-SS-X (L28MBT-16MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGHT L1 (MM)	48.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.120

D2501-L28-16-X

$102.97

Attribute: D2501-L28-16-X (L28MBT-16MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	38.0
CENTERLINE LENGTH M2 (MM)	30.5
CENTERLINE LENGHT L1 (MM)	48.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.700
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.120

D2501-L35-20-SS-X

$788.03

Attribute: D2501-L35-20-SS-X (L35MBT-20MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGHT L1 (MM)	54.0
CENTERLINE LENGTH L2 (MM)	25.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.095
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.209

D2501-L35-20-X

$161.00

Attribute: D2501-L35-20-X (L35MBT-20MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	45.0
CENTERLINE LENGTH M2 (MM)	34.5
CENTERLINE LENGHT L1 (MM)	54.0
CENTERLINE LENGTH L2 (MM)	25.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.095
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.209

D2501-L42-24-SS-X

$1,091.39

Attribute: D2501-L42-24-SS-X (L42MBT-24MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGHT L1 (MM)	61.0
CENTERLINE LENGTH L2 (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.586
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.943

D2501-L42-24-X

$247.92

Attribute: D2501-L42-24-X (L42MBT-24MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	51.0
CENTERLINE LENGTH M2 (MM)	40.0
CENTERLINE LENGHT L1 (MM)	61.0
CENTERLINE LENGTH L2 (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.586
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	19.943

D2501-S06-04-SS-X

$96.44

Attribute: D2501-S06-04-SS-X (S06MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.703

D2501-S06-04-X

$21.07

Attribute: D2501-S06-04-X (S06MBT-04MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	26.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.703

D2501-S06-06-SS-X

$125.46

Attribute: D2501-S06-06-SS-X (S06MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2501-S08-04-SS-X

$117.30

Attribute: D2501-S08-04-SS-X (S08MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.900

D2501-S08-04-X

$24.37

Attribute: D2501-S08-04-X (S08MBT-04MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	24.0
CENTERLINE LENGTH M2 (MM)	17.0
CENTERLINE LENGHT L1 (MM)	27.0
CENTERLINE LENGTH L2 (MM)	15.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.900

D2501-S08-06-SS-X

$129.26

Attribute: D2501-S08-06-SS-X (S08MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	18.0
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	12.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.137
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.957

D2501-S08-08-SS-X

$187.46

Attribute: D2501-S08-08-SS-X (S08MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	23.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	19.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.295
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.992

D2501-S10-04-SS-X

$143.38

Attribute: D2501-S10-04-SS-X (S10MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.268

D2501-S10-06-SS-X

$124.01

Attribute: D2501-S10-06-SS-X (S10MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.268

D2501-S10-06-X

$26.84

Attribute: D2501-S10-06-X (S10MBT-06MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	25.0
CENTERLINE LENGTH M2 (MM)	17.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.268

D2501-S10-08-SS-X

$176.41

Attribute: D2501-S10-08-SS-X (S10MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.5
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	19.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.284
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.992

D2501-S12-04-SS-X

$159.29

Attribute: D2501-S12-04-SS-X (S12MBT-04MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	29.0
CENTERLINE LENGTH L2 (MM)	13.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.459

D2501-S12-06-SS-X

$154.22

Attribute: D2501-S12-06-SS-X (S12MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.420

D2501-S12-06-X

$30.64

Attribute: D2501-S12-06-X (S12MBT-06MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	28.0
CENTERLINE LENGTH L2 (MM)	15.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.420

D2501-S12-08-SS-X

$178.20

Attribute: D2501-S12-08-SS-X (S12MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
CENTERLINE LENGTH M1 (MM)	29.0
CENTERLINE LENGTH M2 (MM)	21.5
CENTERLINE LENGHT L1 (MM)	32.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.576

D2501-S14-06-SS-X

$167.53

Attribute: D2501-S14-06-SS-X (S14MBT-06MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2501-S14-08-SS-X

$169.15

Attribute: D2501-S14-08-SS-X (S14MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.260
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.992

D2501-S14-08-X

$67.17

Attribute: D2501-S14-08-X (S14MBT-08MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
CENTERLINE LENGTH M1 (MM)	30.0
CENTERLINE LENGTH M2 (MM)	22.0
CENTERLINE LENGHT L1 (MM)	34.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.260
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.992

D2501-S16-08-SS-X

$220.28

Attribute: D2501-S16-08-SS-X (S16MBT-08MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGHT L1 (MM)	33.5
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.326
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

D2501-S16-08-X

$46.38

Attribute: D2501-S16-08-X (S16MBT-08MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
CENTERLINE LENGTH M1 (MM)	33.0
CENTERLINE LENGTH M2 (MM)	24.5
CENTERLINE LENGHT L1 (MM)	33.5
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.326
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

D2501-S20-12-SS-X

$252.57

Attribute: D2501-S20-12-SS-X (S20MBT-12MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGHT L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.618

D2501-S20-12-X

$68.62

Attribute: D2501-S20-12-X (S20MBT-12MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
CENTERLINE LENGTH M1 (MM)	37.0
CENTERLINE LENGTH M2 (MM)	26.5
CENTERLINE LENGHT L1 (MM)	42.0
CENTERLINE LENGTH L2 (MM)	20.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.618

D2501-S25-16-SS-X

$585.72

Attribute: D2501-S25-16-SS-X (S25MBT-16MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGHT L1 (MM)	48.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	0.919
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2501-S25-16-X

$121.87

Attribute: D2501-S25-16-X (S25MBT-16MP 90 W...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
CENTERLINE LENGTH M1 (MM)	42.0
CENTERLINE LENGTH M2 (MM)	30.0
CENTERLINE LENGHT L1 (MM)	48.0
CENTERLINE LENGTH L2 (MM)	25.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.919
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.700

D2501-S30-20-SS-X

$882.63

Attribute: D2501-S30-20-SS-X (S30MBT-20MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
CENTERLINE LENGTH M1 (MM)	49.0
CENTERLINE LENGTH M2 (MM)	35.5
CENTERLINE LENGHT L1 (MM)	54.0
CENTERLINE LENGTH L2 (MM)	25.5
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	1.427
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.955

D2501-S38-24-SS-X

$1,188.89

Attribute: D2501-S38-24-SS-X (S38MBT-24MP 9...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
CENTERLINE LENGTH M1 (MM)	57.0
CENTERLINE LENGTH M2 (MM)	41.0
CENTERLINE LENGHT L1 (MM)	61.0
CENTERLINE LENGTH L2 (MM)	26.0
SHAPE	90 DEGREE ANGLE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STAINLESS STEEL FORGING
WEIGHT (LBS)	2.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	21.517

Description

Description

Variations (64)

D2501-E04-02-SS-X

D2501-E06-02-SS-X

D2501-E06-02-X

D2501-E08-02-SS-X

D2501-E08-02-X

D2501-L06-02-SS-X

D2501-L06-02-X

D2501-L06-04-SS-X

D2501-L06-04-X

D2501-L06-06-SS-X

D2501-L08-02-SS-X

D2501-L08-04-SS-X

D2501-L08-04-X

D2501-L08-06-SS-X

D2501-L08-08-SS-X

D2501-L10-04-SS-X

D2501-L10-04-X

D2501-L10-06-SS-X

D2501-L10-08-SS-X

D2501-L12-04-SS-X

D2501-L12-04-X

D2501-L12-06-SS-X

D2501-L12-06-X

D2501-L12-08-SS-X

D2501-L12-08-X

D2501-L15-08-SS-X

D2501-L15-08-X

D2501-L18-08-SS-X

D2501-L18-08-X

D2501-L22-08-SS-X

D2501-L22-12-SS-X

D2501-L22-12-X

D2501-L28-16-SS-X

D2501-L28-16-X

D2501-L35-20-SS-X

D2501-L35-20-X

D2501-L42-24-SS-X

D2501-L42-24-X

D2501-S06-04-SS-X

D2501-S06-04-X

D2501-S06-06-SS-X

D2501-S08-04-SS-X

D2501-S08-04-X

D2501-S08-06-SS-X

D2501-S08-08-SS-X

D2501-S10-04-SS-X

D2501-S10-06-SS-X

D2501-S10-06-X

D2501-S10-08-SS-X

D2501-S12-04-SS-X

D2501-S12-06-SS-X

D2501-S12-06-X

D2501-S12-08-SS-X

D2501-S14-06-SS-X

D2501-S14-08-SS-X

D2501-S14-08-X

D2501-S16-08-SS-X

D2501-S16-08-X

D2501-S20-12-SS-X

D2501-S20-12-X

D2501-S25-16-SS-X

D2501-S25-16-X

D2501-S30-20-SS-X

D2501-S38-24-SS-X

General Attributes

PDF Documents
