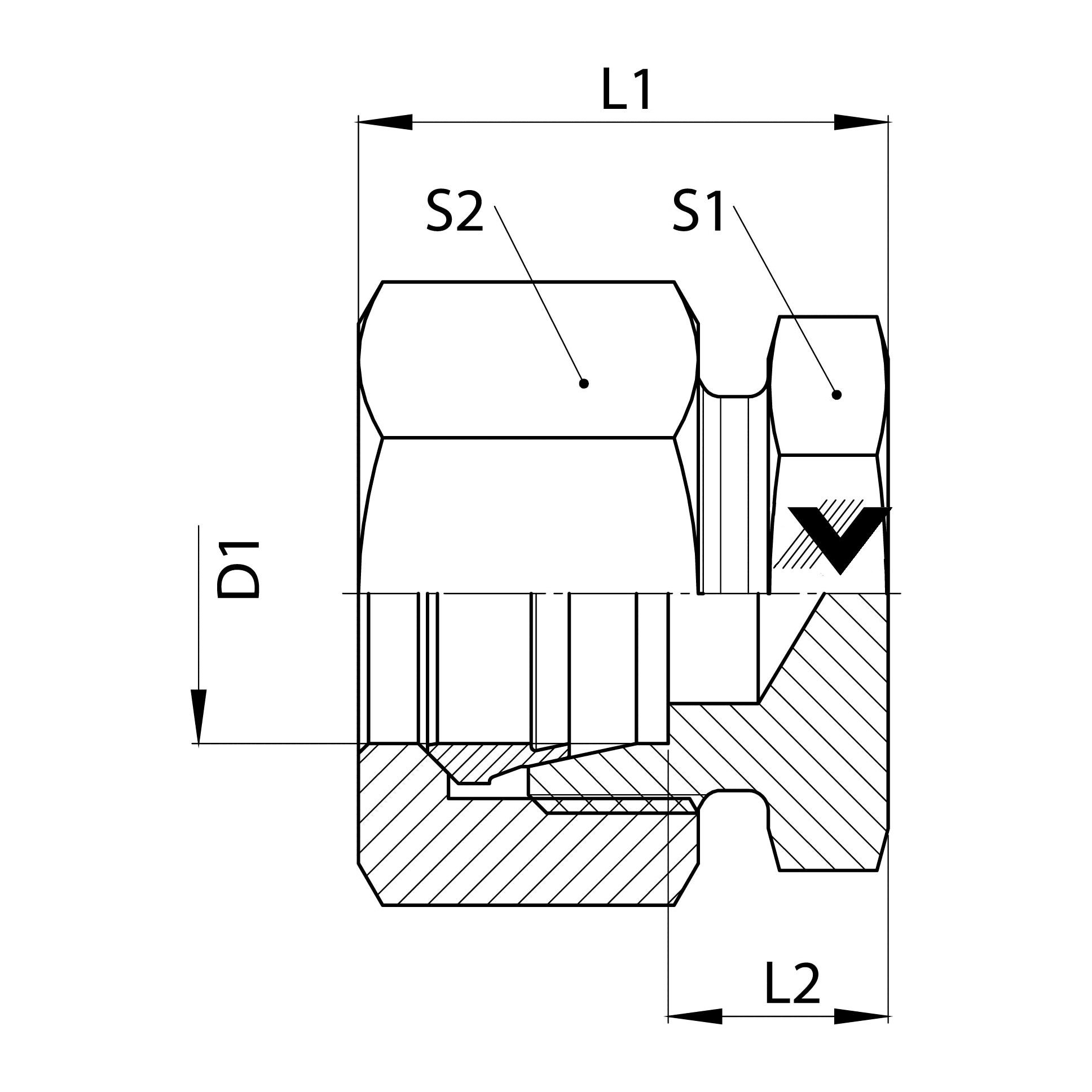

D2408-X

D2408-E04-X

$18.87

Attribute: D2408-E04-X (E04(M08X1.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2408-L06-SS-X

$24.28

Attribute: D2408-L06-SS-X (L06(M12X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	14.0
OVERALL LENGTH L2 (MM)	7.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.022
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.123

D2408-L06-X

$7.25

Attribute: D2408-L06-X (L06(M12X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	14.0
OVERALL LENGTH L2 (MM)	7.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.022
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.123

D2408-L08-SS-X

$40.45

Attribute: D2408-L08-SS-X (L08(M14X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	15.0
OVERALL LENGTH L2 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.179

D2408-L08-X

$7.77

Attribute: D2408-L08-X (L08(M14X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	15.0
OVERALL LENGTH L2 (MM)	8.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.179

D2408-L10-SS-X

$49.29

Attribute: D2408-L10-SS-X (L10(M16X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	16.0
OVERALL LENGTH L2 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.282

D2408-L10-X

$8.96

Attribute: D2408-L10-X (L10(M16X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	16.0
OVERALL LENGTH L2 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.282

D2408-L12-SS-X

$59.14

Attribute: D2408-L12-SS-X (L12(M18X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	17.0
OVERALL LENGTH L2 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.375

D2408-L12-X

$10.54

Attribute: D2408-L12-X (L12(M18X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	17.0
OVERALL LENGTH L2 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.057
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.375

D2408-L15-SS-X

$97.34

Attribute: D2408-L15-SS-X (L15(M22X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	18.0
OVERALL LENGTH L2 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D2408-L15-X

$13.19

Attribute: D2408-L15-X (L15(M22X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	18.0
OVERALL LENGTH L2 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.633

D2408-L18-SS-X

$93.32

Attribute: D2408-L18-SS-X (L18(M26X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	19.0
OVERALL LENGTH L2 (MM)	11.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.845

D2408-L18-X

$20.62

Attribute: D2408-L18-X (L18(M26X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	19.0
OVERALL LENGTH L2 (MM)	11.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.132
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.845

D2408-L22-SS-X

$115.51

Attribute: D2408-L22-SS-X (L22(M30X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	21.0
OVERALL LENGTH L2 (MM)	13.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.312

D2408-L22-X

$31.58

Attribute: D2408-L22-X (L22(M30X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	21.0
OVERALL LENGTH L2 (MM)	13.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.185
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.312

D2408-L28-SS-X

$183.06

Attribute: D2408-L28-SS-X (L28(M36X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	14.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.302
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.257

D2408-L28-X

$59.31

Attribute: D2408-L28-X (L28(M36X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	14.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.302
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.257

D2408-L35-SS-X

$292.56

Attribute: D2408-L35-SS-X (L35(M45X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	14.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.460
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.228

D2408-L35-X

$109.75

Attribute: D2408-L35-X (L35(M45X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	14.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.460
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.228

D2408-L42-SS-X

$340.49

Attribute: D2408-L42-SS-X (L42(M52X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.698
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.984

D2408-L42-X

$130.28

Attribute: D2408-L42-X (L42(M52X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.698
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.984

D2408-S06-SS-X

$30.26

Attribute: D2408-S06-SS-X (S06(M14X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	18.0
OVERALL LENGTH L2 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.215

D2408-S06-X

$9.55

Attribute: D2408-S06-X (S06(M14X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	18.0
OVERALL LENGTH L2 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.042
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.215

D2408-S08-SS-X

$37.63

Attribute: D2408-S08-SS-X (S08(M16X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.353

D2408-S08-X

$10.11

Attribute: D2408-S08-X (S08(M16X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.353

D2408-S10-SS-X

$48.39

Attribute: D2408-S10-SS-X (S10(M18X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.441

D2408-S10-X

$9.78

Attribute: D2408-S10-X (S10(M18X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	12.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.441

D2408-S12-SS-X

$54.28

Attribute: D2408-S12-SS-X (S12(M20X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	14.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.650

D2408-S12-X

$11.99

Attribute: D2408-S12-X (S12(M20X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	14.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.650

D2408-S14-SS-X

$67.33

Attribute: D2408-S14-SS-X (S14(M22X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.844

D2408-S14-X

$23.13

Attribute: D2408-S14-X (S14(M22X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.139
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.844

D2408-S16-SS-X

$93.16

Attribute: D2408-S16-SS-X (S16(M24X1.5) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.068

D2408-S16-X

$23.43

Attribute: D2408-S16-X (S16(M24X1.5) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.068

D2408-S20-SS-X

$122.72

Attribute: D2408-S20-SS-X (S20(M30X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	17.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.278
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.750

D2408-S20-X

$34.39

Attribute: D2408-S20-X (S20(M30X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	17.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.278
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.750

D2408-S25-SS-X

$219.89

Attribute: D2408-S25-SS-X (S25(M36X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

D2408-S25-X

$53.56

Attribute: D2408-S25-X (S25(M36X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.283

D2408-S30-SS-X

$303.01

Attribute: D2408-S30-SS-X (S30(M42X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	20.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.390

D2408-S30-X

$90.04

Attribute: D2408-S30-X (S30(M42X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	20.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.390

D2408-S38-SS-X

$384.57

Attribute: D2408-S38-SS-X (S38(M52X2.0) MBT...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.093
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.199

D2408-S38-X

$129.73

Attribute: D2408-S38-X (S38(M52X2.0) MBT Pl...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.093
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.199

ID	10164352
Category	DIN Metric Tube Fittings

Description

Description

Variations (41)

D2408-E04-X

D2408-L06-SS-X

D2408-L06-X

D2408-L08-SS-X

D2408-L08-X

D2408-L10-SS-X

D2408-L10-X

D2408-L12-SS-X

D2408-L12-X

D2408-L15-SS-X

D2408-L15-X

D2408-L18-SS-X

D2408-L18-X

D2408-L22-SS-X

D2408-L22-X

D2408-L28-SS-X

D2408-L28-X

D2408-L35-SS-X

D2408-L35-X

D2408-L42-SS-X

D2408-L42-X

D2408-S06-SS-X

D2408-S06-X

D2408-S08-SS-X

D2408-S08-X

D2408-S10-SS-X

D2408-S10-X

D2408-S12-SS-X

D2408-S12-X

D2408-S14-SS-X

D2408-S14-X

D2408-S16-SS-X

D2408-S16-X

D2408-S20-SS-X

D2408-S20-X

D2408-S25-SS-X

D2408-S25-X

D2408-S30-SS-X

D2408-S30-X

D2408-S38-SS-X

D2408-S38-X

General Attributes

PDF Documents
