D2405-X

D2405-L06-02-SS-X

$75.19

Attribute: D2405-L06-02-SS-X (L06MBT-02FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 SPECIFICATION	ANSI B1.20.1

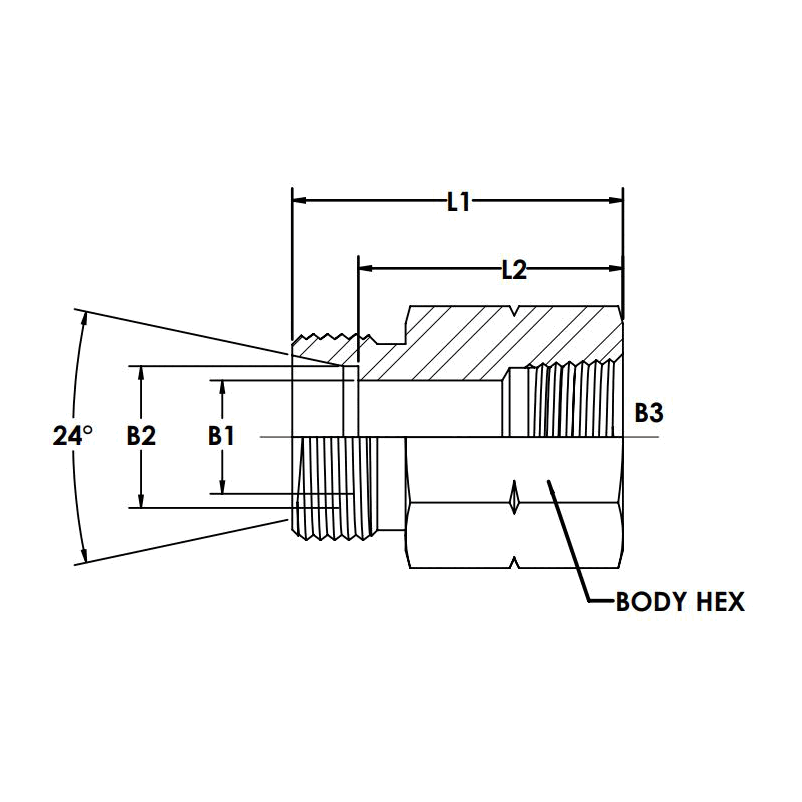

BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	26.0
OVERALL LENGTH L2 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.044
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.311

D2405-L06-04-SS-X

$75.19

Attribute: D2405-L06-04-SS-X (L06MBT-04FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

D2405-L08-04-SS-X

$76.25

Attribute: D2405-L08-04-SS-X (L08MBT-04FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D2405-L10-04-SS-X

$76.25

Attribute: D2405-L10-04-SS-X (L10MBT-04FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.097
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2405-L10-06-SS-X

$96.74

Attribute: D2405-L10-06-SS-X (L10MBT-06FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D2405-L10-08-SS-X

$97.80

Attribute: D2405-L10-08-SS-X (L10MBT-08FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D2405-L12-04-SS-X

$76.25

Attribute: D2405-L12-04-SS-X (L12MBT-04FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.104
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

D2405-L12-06-SS-X

$93.88

Attribute: D2405-L12-06-SS-X (L12MBT-06FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D2405-L12-08-SS-X

$105.15

Attribute: D2405-L12-08-SS-X (L12MBT-08FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.242
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.913

D2405-L15-08-SS-X

$132.29

Attribute: D2405-L15-08-SS-X (L15MBT-08FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.256
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D2405-L18-08-SS-X

$139.45

Attribute: D2405-L18-08-SS-X (L18MBT-08FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.262
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D2405-L22-12-SS-X

$272.29

Attribute: D2405-L22-12-SS-X (L22MBT-12FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.419
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.401

D2405-L28-16-SS-X

$401.89

Attribute: D2405-L28-16-SS-X (L28MBT-16FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.559
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.026

D2405-L35-20-SS-X

$521.25

Attribute: D2405-L35-20-SS-X (L35MBT-20FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.066
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.414

D2405-L42-24-SS-X

$591.31

Attribute: D2405-L42-24-SS-X (L42MBT-24FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	60.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.236
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.643

D2405-S06-04-SS-X

$85.35

Attribute: D2405-S06-04-SS-X (S06MBT-04FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D2405-S08-04-SS-X

$86.20

Attribute: D2405-S08-04-SS-X (S08MBT-04FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.097
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D2405-S10-06-SS-X

$93.88

Attribute: D2405-S10-06-SS-X (S10MBT-06FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.195

D2405-S12-06-SS-X

$98.65

Attribute: D2405-S12-06-SS-X (S12MBT-06FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.167
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.195

D2405-S12-08-SS-X

$139.45

Attribute: D2405-S12-08-SS-X (S12MBT-08FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.262
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D2405-S16-08-SS-X

$145.13

Attribute: D2405-S16-08-SS-X (S16MBT-08FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.214
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D2405-S20-12-SS-X

$301.99

Attribute: D2405-S20-12-SS-X (S20MBT-12FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.454
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.559

D2405-S25-16-SS-X

$416.65

Attribute: D2405-S25-16-SS-X (S25MBT-16FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.637
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.437

D2405-S30-20-SS-X

$657.79

Attribute: D2405-S30-20-SS-X (S30MBT-20FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.804
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.933

D2405-S38-24-SS-X

$675.20

Attribute: D2405-S38-24-SS-X (S38MBT-24FP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC DIN 24 DEGREE DIN
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	60.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.434
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.961

ID	10164281
Category	DIN Metric Tube Fittings

Description

Description

Variations (25)

D2405-L06-02-SS-X

D2405-L06-04-SS-X

D2405-L08-04-SS-X

D2405-L10-04-SS-X

D2405-L10-06-SS-X

D2405-L10-08-SS-X

D2405-L12-04-SS-X

D2405-L12-06-SS-X

D2405-L12-08-SS-X

D2405-L15-08-SS-X

D2405-L18-08-SS-X

D2405-L22-12-SS-X

D2405-L28-16-SS-X

D2405-L35-20-SS-X

D2405-L42-24-SS-X

D2405-S06-04-SS-X

D2405-S08-04-SS-X

D2405-S10-06-SS-X

D2405-S12-06-SS-X

D2405-S12-08-SS-X

D2405-S16-08-SS-X

D2405-S20-12-SS-X

D2405-S25-16-SS-X

D2405-S30-20-SS-X

D2405-S38-24-SS-X

General Attributes

PDF Documents
