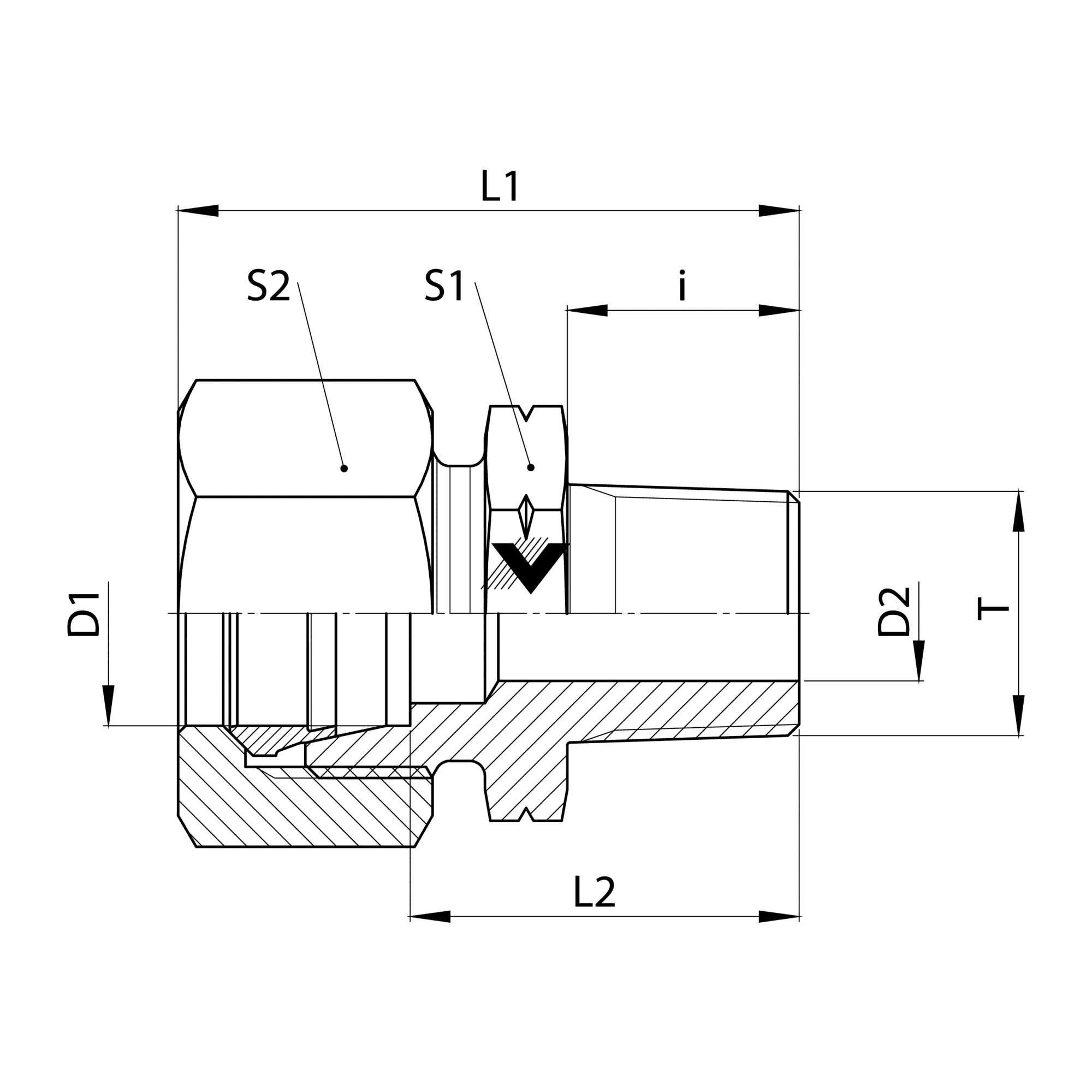

D2404-X

D2404-E04-02-SS-X

$42.93

Attribute: D2404-E04-02-SS-X (E04MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 THREAD TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.162

D2404-E04-02-X

$3.63

Attribute: D2404-E04-02-X (E04MBT-02MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 THREAD TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	3.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.162

D2404-E06-02-SS-X

$47.15

Attribute: D2404-E06-02-SS-X (E06MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 THREAD TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.162

D2404-E06-02-X

$3.50

Attribute: D2404-E06-02-X (E06MBT-02MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 THREAD TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	22.0
OVERALL LENGTH L2 (MM)	16.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.024
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.162

D2404-E08-02-SS-X

$54.28

Attribute: D2404-E08-02-SS-X (E08MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 THREAD TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.211

D2404-E08-02-X

$9.69

Attribute: D2404-E08-02-X (E08MBT-02MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 THREAD TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	18.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.211

D2404-L06-02-SS-X

$41.57

Attribute: D2404-L06-02-SS-X (L06MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.211

D2404-L06-02-X

$3.21

Attribute: D2404-L06-02-X (L06MBT-02MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	17.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.031
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.211

D2404-L06-04-SS-X

$42.04

Attribute: D2404-L06-04-SS-X (L06MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.066
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

D2404-L06-04-X

$11.61

Attribute: D2404-L06-04-X (L06MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.066
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

D2404-L06-06-SS-X

$59.78

Attribute: D2404-L06-06-SS-X (L06MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.099
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.683

D2404-L06-08-SS-X

$75.36

Attribute: D2404-L06-08-SS-X (L06MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.265

D2404-L08-02-SS-X

$40.02

Attribute: D2404-L08-02-SS-X (L08MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	18.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.040
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.299

D2404-L08-04-SS-X

$44.38

Attribute: D2404-L08-04-SS-X (L08MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

D2404-L08-04-X

$5.68

Attribute: D2404-L08-04-X (L08MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.529

D2404-L08-06-SS-X

$67.94

Attribute: D2404-L08-06-SS-X (L08MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D2404-L08-08-SS-X

$76.60

Attribute: D2404-L08-08-SS-X (L08MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	6.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.176
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.265

D2404-L10-02-SS-X

$51.72

Attribute: D2404-L10-02-SS-X (L10MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.5
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	26.0
OVERALL LENGTH L2 (MM)	19.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.051
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.459

D2404-L10-04-SS-X

$51.55

Attribute: D2404-L10-04-SS-X (L10MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D2404-L10-04-X

$6.19

Attribute: D2404-L10-04-X (L10MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.064
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.547

D2404-L10-06-SS-X

$73.61

Attribute: D2404-L10-06-SS-X (L10MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2404-L10-06-X

$7.51

Attribute: D2404-L10-06-X (L10MBT-06MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2404-L10-08-SS-X

$82.83

Attribute: D2404-L10-08-SS-X (L10MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.170
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-L10-12-SS-X

$95.20

Attribute: D2404-L10-12-SS-X (L10MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.690

D2404-L12-02-SS-X

$58.46

Attribute: D2404-L12-02-SS-X (L12MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.066
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.595

D2404-L12-04-SS-X

$60.81

Attribute: D2404-L12-04-SS-X (L12MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2404-L12-04-X

$7.00

Attribute: D2404-L12-04-X (L12MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.077
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2404-L12-06-SS-X

$66.40

Attribute: D2404-L12-06-SS-X (L12MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2404-L12-06-X

$6.36

Attribute: D2404-L12-06-X (L12MBT-06MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2404-L12-08-SS-X

$37.27

Attribute: D2404-L12-08-SS-X (L12MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-L12-08-X

$9.69

Attribute: D2404-L12-08-X (L12MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.154
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-L12-12-SS-X

$100.32

Attribute: D2404-L12-12-SS-X (L12MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.231
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.690

D2404-L15-04-SS-X

$75.36

Attribute: D2404-L15-04-SS-X (L15MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.112
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D2404-L15-06-SS-X

$83.17

Attribute: D2404-L15-06-SS-X (L15MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D2404-L15-06-X

$11.26

Attribute: D2404-L15-06-X (L15MBT-06MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	33.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.126
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.160

D2404-L15-08-SS-X

$85.35

Attribute: D2404-L15-08-SS-X (L15MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

D2404-L15-08-X

$10.32

Attribute: D2404-L15-08-X (L15MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	11.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.172
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

D2404-L15-12-SS-X

$95.88

Attribute: D2404-L15-12-SS-X (L15MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.240
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.779

D2404-L18-06-SS-X

$110.01

Attribute: D2404-L18-06-SS-X (L18MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.513

D2404-L18-08-SS-X

$104.98

Attribute: D2404-L18-08-SS-X (L18MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D2404-L18-08-X

$10.28

Attribute: D2404-L18-08-X (L18MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.183
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D2404-L18-12-SS-X

$112.65

Attribute: D2404-L18-12-SS-X (L18MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.262
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.142

D2404-L18-12-X

$73.95

Attribute: D2404-L18-12-X (L18MBT-12MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.262
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.142

D2404-L18-16-SS-X

$167.74

Attribute: D2404-L18-16-SS-X (L18MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 THREAD TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	15.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.478
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.480

D2404-L22-06-SS-X

$146.32

Attribute: D2404-L22-06-SS-X (L22MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	28.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.209
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.250

D2404-L22-08-SS-X

$127.29

Attribute: D2404-L22-08-SS-X (L22MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D2404-L22-08-X

$66.48

Attribute: D2404-L22-08-X (L22MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	14.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.233
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D2404-L22-12-SS-X

$141.08

Attribute: D2404-L22-12-SS-X (L22MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.260
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D2404-L22-12-X

$17.20

Attribute: D2404-L22-12-X (L22MBT-12MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.260
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.562

D2404-L22-16-SS-X

$174.87

Attribute: D2404-L22-16-SS-X (L22MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	19.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.454
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.717

D2404-L28-08-SS-X

$210.59

Attribute: D2404-L28-08-SS-X (L28MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.361
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.308

D2404-L28-12-SS-X

$205.30

Attribute: D2404-L28-12-SS-X (L28MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.370
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.308

D2404-L28-16-SS-X

$195.49

Attribute: D2404-L28-16-SS-X (L28MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.447
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

D2404-L28-16-X

$38.87

Attribute: D2404-L28-16-X (L28MBT-16MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.447
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.821

D2404-L28-20-SS-X

$242.59

Attribute: D2404-L28-20-SS-X (L28MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	24.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	41.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.744
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.327

D2404-L35-12-SS-X

$272.60

Attribute: D2404-L35-12-SS-X (L35MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	18.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.515
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.811

D2404-L35-16-SS-X

$143.15

Attribute: D2404-L35-16-SS-X (L35MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	23.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	39.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.595
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.456

D2404-L35-20-SS-X

$134.48

Attribute: D2404-L35-20-SS-X (L35MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.663
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.585

D2404-L35-20-X

$54.24

Attribute: D2404-L35-20-X (L35MBT-20MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.663
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.585

D2404-L35-24-SS-X

$329.86

Attribute: D2404-L35-24-SS-X (L35MBT-24MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.905
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.781

D2404-L42-16-SS-X

$302.33

Attribute: D2404-L42-16-SS-X (L42MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	22.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.874
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.784

D2404-L42-20-SS-X

$294.23

Attribute: D2404-L42-20-SS-X (L42MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	30.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.883
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.784

D2404-L42-24-SS-X

$345.99

Attribute: D2404-L42-24-SS-X (L42MBT-24MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.824
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.784

D2404-L42-24-X

$70.96

Attribute: D2404-L42-24-X (L42MBT-24MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	36.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.824
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.784

D2404-S06-02-SS-X

$43.99

Attribute: D2404-S06-02-SS-X (S06MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	21.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.053
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.335

D2404-S06-04-SS-X

$45.79

Attribute: D2404-S06-04-SS-X (S06MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D2404-S06-04-X

$6.61

Attribute: D2404-S06-04-X (S06MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D2404-S06-06-SS-X

$73.52

Attribute: D2404-S06-06-SS-X (S06MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D2404-S06-08-SS-X

$72.20

Attribute: D2404-S06-08-SS-X (S06MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.198
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.181

D2404-S08-02-SS-X

$57.82

Attribute: D2404-S08-02-SS-X (S08MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	29.5
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.520

D2404-S08-04-SS-X

$55.72

Attribute: D2404-S08-04-SS-X (S08MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2404-S08-04-X

$7.13

Attribute: D2404-S08-04-X (S08MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D2404-S08-06-SS-X

$59.49

Attribute: D2404-S08-06-SS-X (S08MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	29.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.128
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

D2404-S08-08-SS-X

$74.63

Attribute: D2404-S08-08-SS-X (S08MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.203
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.181

D2404-S10-02-SS-X

$64.65

Attribute: D2404-S10-02-SS-X (S10MBT-02MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 THREAD ID (MM)	4.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	22.5
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.661

D2404-S10-04-SS-X

$62.99

Attribute: D2404-S10-04-SS-X (S10MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D2404-S10-04-X

$7.93

Attribute: D2404-S10-04-X (S10MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D2404-S10-06-SS-X

$65.17

Attribute: D2404-S10-06-SS-X (S10MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D2404-S10-06-X

$8.79

Attribute: D2404-S10-06-X (S10MBT-06MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	27.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.121
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.771

D2404-S10-08-SS-X

$75.19

Attribute: D2404-S10-08-SS-X (S10MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D2404-S10-12-SS-X

$89.45

Attribute: D2404-S10-12-SS-X (S10MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	7.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.291
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.868

D2404-S12-04-SS-X

$69.26

Attribute: D2404-S12-04-SS-X (S12MBT-04MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-S12-04-X

$10.16

Attribute: D2404-S12-04-X (S12MBT-04MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 THREAD ID (MM)	5.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.141
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-S12-06-SS-X

$73.31

Attribute: D2404-S12-06-SS-X (S12MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-S12-06-X

$11.90

Attribute: D2404-S12-06-X (S12MBT-06MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	37.0
OVERALL LENGTH L2 (MM)	29.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.150
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.093

D2404-S12-08-SS-X

$81.89

Attribute: D2404-S12-08-SS-X (S12MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D2404-S12-08-X

$7.90

Attribute: D2404-S12-08-X (S12MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.211
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D2404-S12-12-SS-X

$90.16

Attribute: D2404-S12-12-SS-X (S12MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.247
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

D2404-S14-06-SS-X

$76.22

Attribute: D2404-S14-06-SS-X (S14MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.178
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.371

D2404-S14-08-SS-X

$84.71

Attribute: D2404-S14-08-SS-X (S14MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.547

D2404-S14-08-X

$15.44

Attribute: D2404-S14-08-X (S14MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.225
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.547

D2404-S14-12-SS-X

$95.11

Attribute: D2404-S14-12-SS-X (S14MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	10.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.306
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D2404-S16-06-SS-X

$107.19

Attribute: D2404-S16-06-SS-X (S16MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	8.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	30.5
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.205
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.735

D2404-S16-08-SS-X

$60.17

Attribute: D2404-S16-08-SS-X (S16MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	35.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D2404-S16-08-X

$15.20

Attribute: D2404-S16-08-X (S16MBT-08MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	35.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.236
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

D2404-S16-12-SS-X

$118.71

Attribute: D2404-S16-12-SS-X (S16MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.471

D2404-S16-12-X

$71.52

Attribute: D2404-S16-12-X (S16MBT-12MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	36.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.317
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.471

D2404-S16-16-SS-X

$132.62

Attribute: D2404-S16-16-SS-X (S16MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 THREAD TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.610
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.033

D2404-S20-06-SS-X

$144.96

Attribute: D2404-S20-06-SS-X (S20MBT-06MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 THREAD ID (MM)	9.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	43.5
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	15.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.319
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.718

D2404-S20-08-SS-X

$136.86

Attribute: D2404-S20-08-SS-X (S20MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.350
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

D2404-S20-12-SS-X

$75.19

Attribute: D2404-S20-12-SS-X (S20MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.372
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

D2404-S20-12-X

$20.65

Attribute: D2404-S20-12-X (S20MBT-12MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	37.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.372
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.999

D2404-S20-16-SS-X

$193.64

Attribute: D2404-S20-16-SS-X (S20MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	42.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.595
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.192

D2404-S20-20-SS-X

$275.49

Attribute: D2404-S20-20-SS-X (S20MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	43.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.681
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.973

D2404-S25-08-SS-X

$222.92

Attribute: D2404-S25-08-SS-X (S25MBT-08MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 THREAD ID (MM)	12.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.115
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D2404-S25-12-SS-X

$207.86

Attribute: D2404-S25-12-SS-X (S25MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.597
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.334

D2404-S25-16-SS-X

$226.72

Attribute: D2404-S25-16-SS-X (S25MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.694
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

D2404-S25-16-X

$40.45

Attribute: D2404-S25-16-X (S25MBT-16MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.694
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.847

D2404-S25-20-SS-X

$236.24

Attribute: D2404-S25-20-SS-X (S25MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	46.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.031
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.489

D2404-S30-12-SS-X

$291.07

Attribute: D2404-S30-12-SS-X (S30MBT-12MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 THREAD ID (MM)	16.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	40.5
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.758
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.973

D2404-S30-16-SS-X

$309.72

Attribute: D2404-S30-16-SS-X (S30MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.857
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.618

D2404-S30-16-X

$112.96

Attribute: D2404-S30-16-X (S30MBT-16MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	59.0
OVERALL LENGTH L2 (MM)	45.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.857
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.618

D2404-S30-20-SS-X

$291.07

Attribute: D2404-S30-20-SS-X (S30MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.980
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.748

D2404-S30-20-X

$59.75

Attribute: D2404-S30-20-X (S30MBT-20MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.980
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.748

D2404-S30-24-SS-X

$344.37

Attribute: D2404-S30-24-SS-X (S30MBT-24MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	46.5
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.251
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.154

D2404-S38-16-SS-X

$434.02

Attribute: D2404-S38-16-SS-X (S38MBT-16MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 THREAD ID (MM)	20.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	64.0
OVERALL LENGTH L2 (MM)	48.0
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.306
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.814

D2404-S38-20-SS-X

$434.02

Attribute: D2404-S38-20-SS-X (S38MBT-20MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 THREAD ID (MM)	25.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.425
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

D2404-S38-24-SS-X

$467.99

Attribute: D2404-S38-24-SS-X (S38MBT-24MP S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.383
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

D2404-S38-24-X

$84.92

Attribute: D2404-S38-24-X (S38MBT-24MP Strt...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 THREAD TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 THREAD ID (MM)	32.0
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.383
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.999

Description

Description

Variations (119)

D2404-E04-02-SS-X

D2404-E04-02-X

D2404-E06-02-SS-X

D2404-E06-02-X

D2404-E08-02-SS-X

D2404-E08-02-X

D2404-L06-02-SS-X

D2404-L06-02-X

D2404-L06-04-SS-X

D2404-L06-04-X

D2404-L06-06-SS-X

D2404-L06-08-SS-X

D2404-L08-02-SS-X

D2404-L08-04-SS-X

D2404-L08-04-X

D2404-L08-06-SS-X

D2404-L08-08-SS-X

D2404-L10-02-SS-X

D2404-L10-04-SS-X

D2404-L10-04-X

D2404-L10-06-SS-X

D2404-L10-06-X

D2404-L10-08-SS-X

D2404-L10-12-SS-X

D2404-L12-02-SS-X

D2404-L12-04-SS-X

D2404-L12-04-X

D2404-L12-06-SS-X

D2404-L12-06-X

D2404-L12-08-SS-X

D2404-L12-08-X

D2404-L12-12-SS-X

D2404-L15-04-SS-X

D2404-L15-06-SS-X

D2404-L15-06-X

D2404-L15-08-SS-X

D2404-L15-08-X

D2404-L15-12-SS-X

D2404-L18-06-SS-X

D2404-L18-08-SS-X

D2404-L18-08-X

D2404-L18-12-SS-X

D2404-L18-12-X

D2404-L18-16-SS-X

D2404-L22-06-SS-X

D2404-L22-08-SS-X

D2404-L22-08-X

D2404-L22-12-SS-X

D2404-L22-12-X

D2404-L22-16-SS-X

D2404-L28-08-SS-X

D2404-L28-12-SS-X

D2404-L28-16-SS-X

D2404-L28-16-X

D2404-L28-20-SS-X

D2404-L35-12-SS-X

D2404-L35-16-SS-X

D2404-L35-20-SS-X

D2404-L35-20-X

D2404-L35-24-SS-X

D2404-L42-16-SS-X

D2404-L42-20-SS-X

D2404-L42-24-SS-X

D2404-L42-24-X

D2404-S06-02-SS-X

D2404-S06-04-SS-X

D2404-S06-04-X

D2404-S06-06-SS-X

D2404-S06-08-SS-X

D2404-S08-02-SS-X

D2404-S08-04-SS-X

D2404-S08-04-X

D2404-S08-06-SS-X

D2404-S08-08-SS-X

D2404-S10-02-SS-X

D2404-S10-04-SS-X
