D2403-EQUAL-X

D2403-E04-E04-SS-X

$30.43

Attribute: D2403-E04-E04-SS-X (E04MBT-E04MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1

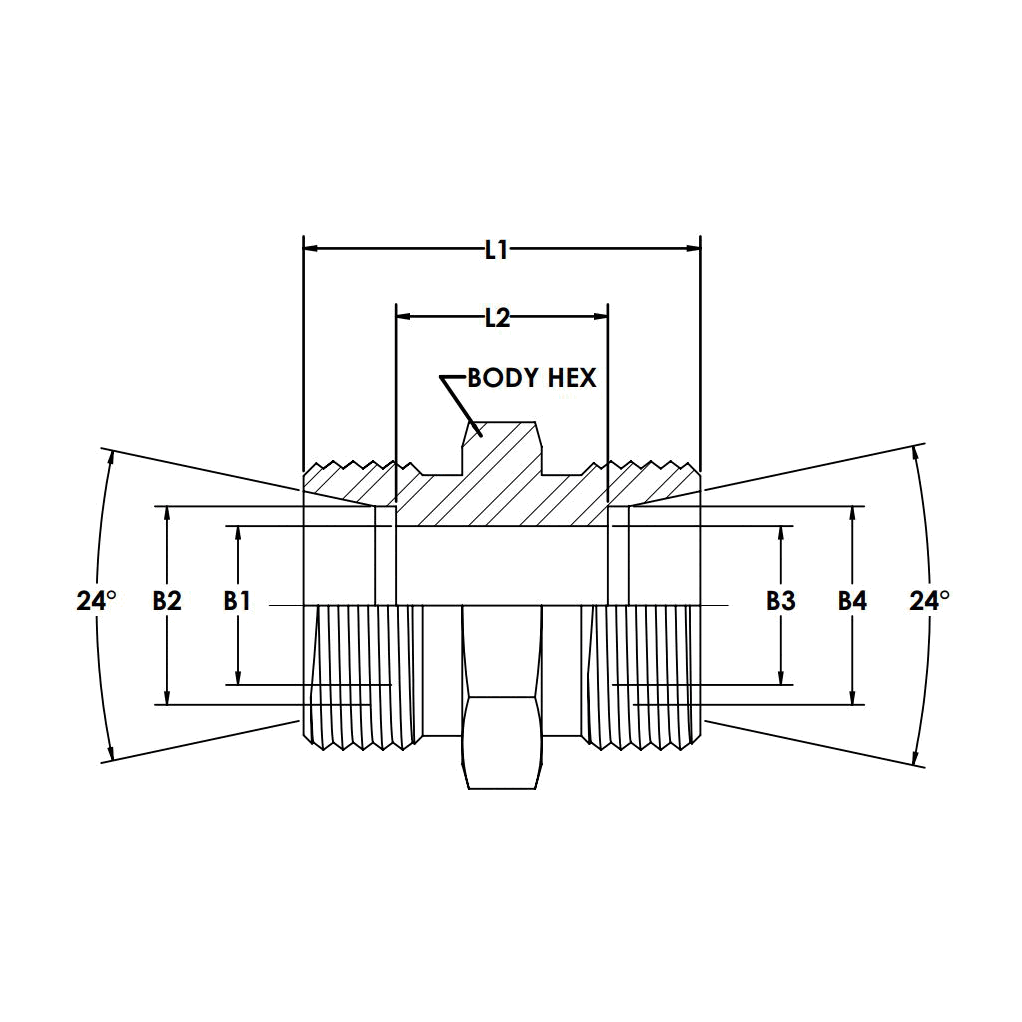

BODY HEX (MM)	9.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.099

D2403-E04-E04-X

$17.71

Attribute: D2403-E04-E04-X (E04MBT-E04MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.013
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.099

D2403-E06-E06-SS-X

$33.88

Attribute: D2403-E06-E06-SS-X (E06MBT-E06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.020
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.148

D2403-E06-E06-X

$2.90

Attribute: D2403-E06-E06-X (E06MBT-E06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	11.0
OVERALL LENGTH L1 (MM)	20.0
OVERALL LENGTH L2 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.020
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.148

D2403-E08-E08-SS-X

$35.24

Attribute: D2403-E08-E08-SS-X (E08MBT-E08MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	23.0
OVERALL LENGTH L2 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.202

D2403-E08-E08-X

$2.90

Attribute: D2403-E08-E08-X (E08MBT-E08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	23.0
OVERALL LENGTH L2 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.029
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.202

D2403-L06-L06-SS-X

$18.27

Attribute: D2403-L06-L06-SS-X (L06MBT-L06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.211

D2403-L06-L06-X

$3.37

Attribute: D2403-L06-L06-X (L06MBT-L06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
OVERALL LENGTH L1 (MM)	24.0
OVERALL LENGTH L2 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.033
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.211

D2403-L08-L08-SS-X

$23.98

Attribute: D2403-L08-L08-SS-X (L08MBT-L08MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.044
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.299

D2403-L08-L08-X

$3.63

Attribute: D2403-L08-L08-X (L08MBT-L08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	25.0
OVERALL LENGTH L2 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.044
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.299

D2403-L10-L10-SS-X

$30.34

Attribute: D2403-L10-L10-SS-X (L10MBT-L10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.059
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D2403-L10-L10-X

$4.39

Attribute: D2403-L10-L10-X (L10MBT-L10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	27.0
OVERALL LENGTH L2 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.059
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.476

D2403-L12-L12-SS-X

$35.38

Attribute: D2403-L12-L12-SS-X (L12MBT-L12MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D2403-L12-L12-X

$7.55

Attribute: D2403-L12-L12-X (L12MBT-L12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	28.0
OVERALL LENGTH L2 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.617

D2403-L15-L15-SS-X

$44.59

Attribute: D2403-L15-L15-SS-X (L15MBT-L15MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.054

D2403-L15-L15-X

$7.81

Attribute: D2403-L15-L15-X (L15MBT-L15MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.123
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.054

D2403-L18-L18-SS-X

$61.14

Attribute: D2403-L18-L18-SS-X (L18MBT-L18MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.170
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.379

D2403-L18-L18-X

$11.05

Attribute: D2403-L18-L18-X (L18MBT-L18MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	31.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.170
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.379

D2403-L22-L22-SS-X

$91.45

Attribute: D2403-L22-L22-SS-X (L22MBT-L22MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.187

D2403-L22-L22-X

$15.44

Attribute: D2403-L22-L22-X (L22MBT-L22MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.229
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.187

D2403-L28-L28-SS-X

$157.84

Attribute: D2403-L28-L28-SS-X (L28MBT-L28MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.341
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.693

D2403-L28-L28-X

$32.18

Attribute: D2403-L28-L28-X (L28MBT-L28MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	36.0
OVERALL LENGTH L2 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.341
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.693

D2403-L35-L35-SS-X

$200.98

Attribute: D2403-L35-L35-SS-X (L35MBT-L35MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.526
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.294

D2403-L35-L35-X

$75.83

Attribute: D2403-L35-L35-X (L35MBT-L35MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.526
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.294

D2403-L42-L42-SS-X

$292.82

Attribute: D2403-L42-L42-SS-X (L42MBT-L42MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.938

D2403-L42-L42-X

$68.27

Attribute: D2403-L42-L42-X (L42MBT-L42MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.725
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.938

D2403-S06-S06-SS-X

$23.93

Attribute: D2403-S06-S06-SS-X (S06MBT-S06MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.066
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.359

D2403-S06-S06-X

$6.10

Attribute: D2403-S06-S06-X (S06MBT-S06MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
OVERALL LENGTH L1 (MM)	30.0
OVERALL LENGTH L2 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.066
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.359

D2403-S08-S08-SS-X

$29.23

Attribute: D2403-S08-S08-SS-X (S08MBT-S08MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.564

D2403-S08-S08-X

$5.77

Attribute: D2403-S08-S08-X (S08MBT-S08MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.093
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.564

D2403-S10-S10-SS-X

$37.30

Attribute: D2403-S10-S10-SS-X (S10MBT-S10MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2403-S10-S10-X

$11.40

Attribute: D2403-S10-S10-X (S10MBT-S10MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.108
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.705

D2403-S12-S12-SS-X

$43.66

Attribute: D2403-S12-S12-SS-X (S12MBT-S12MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.004

D2403-S12-S12-X

$7.34

Attribute: D2403-S12-S12-X (S12MBT-S12MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.148
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.004

D2403-S14-S14-SS-X

$56.84

Attribute: D2403-S14-S14-SS-X (S14MBT-S14MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

D2403-S14-S14-X

$14.76

Attribute: D2403-S14-S14-X (S14MBT-S14MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.187
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

D2403-S16-S16-SS-X

$66.35

Attribute: D2403-S16-S16-SS-X (S16MBT-S16MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.690

D2403-S16-S16-X

$12.12

Attribute: D2403-S16-S16-X (S16MBT-S16MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
OVERALL LENGTH L1 (MM)	38.0
OVERALL LENGTH L2 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.690

D2403-S20-S20-SS-X

$106.98

Attribute: D2403-S20-S20-SS-X (S20MBT-S20MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.357
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.749

D2403-S20-S20-X

$20.22

Attribute: D2403-S20-S20-X (S20MBT-S20MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.357
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.749

D2403-S25-S25-SS-X

$103.22

Attribute: D2403-S25-S25-SS-X (S25MBT-S25MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.615
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.129

D2403-S25-S25-X

$32.39

Attribute: D2403-S25-S25-X (S25MBT-S25MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.615
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.129

D2403-S30-S30-SS-X

$249.80

Attribute: D2403-S30-S30-SS-X (S30MBT-S30MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.811
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.973

D2403-S30-S30-X

$48.77

Attribute: D2403-S30-S30-X (S30MBT-S30MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
OVERALL LENGTH L1 (MM)	54.0
OVERALL LENGTH L2 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.811
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.973

D2403-S38-S38-SS-X

$353.42

Attribute: D2403-S38-S38-SS-X (S38MBT-S38MB...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.313
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.260

D2403-S38-S38-X

$59.05

Attribute: D2403-S38-S38-X (S38MBT-S38MBT S...)

Stock Status: True

CONNECTION 1 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	MALE METRIC 24 DEGREE DIN SEAT
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
OVERALL LENGTH L1 (MM)	61.0
OVERALL LENGTH L2 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.313
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.260

ID	10163873
Category	DIN Metric Tube Fittings

Description

Description

Variations (46)

D2403-E04-E04-SS-X

D2403-E04-E04-X

D2403-E06-E06-SS-X

D2403-E06-E06-X

D2403-E08-E08-SS-X

D2403-E08-E08-X

D2403-L06-L06-SS-X

D2403-L06-L06-X

D2403-L08-L08-SS-X

D2403-L08-L08-X

D2403-L10-L10-SS-X

D2403-L10-L10-X

D2403-L12-L12-SS-X

D2403-L12-L12-X

D2403-L15-L15-SS-X

D2403-L15-L15-X

D2403-L18-L18-SS-X

D2403-L18-L18-X

D2403-L22-L22-SS-X

D2403-L22-L22-X

D2403-L28-L28-SS-X

D2403-L28-L28-X

D2403-L35-L35-SS-X

D2403-L35-L35-X

D2403-L42-L42-SS-X

D2403-L42-L42-X

D2403-S06-S06-SS-X

D2403-S06-S06-X

D2403-S08-S08-SS-X

D2403-S08-S08-X

D2403-S10-S10-SS-X

D2403-S10-S10-X

D2403-S12-S12-SS-X

D2403-S12-S12-X

D2403-S14-S14-SS-X

D2403-S14-S14-X

D2403-S16-S16-SS-X

D2403-S16-S16-X

D2403-S20-S20-SS-X

D2403-S20-S20-X

D2403-S25-S25-SS-X

D2403-S25-S25-X

D2403-S30-S30-SS-X

D2403-S30-S30-X

D2403-S38-S38-SS-X

D2403-S38-S38-X

General Attributes

PDF Documents
