D2403-EQUAL

D2403-E04-E04

$19.59

Attribute: D2403-E04-E04 (E04MBT-E04MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1

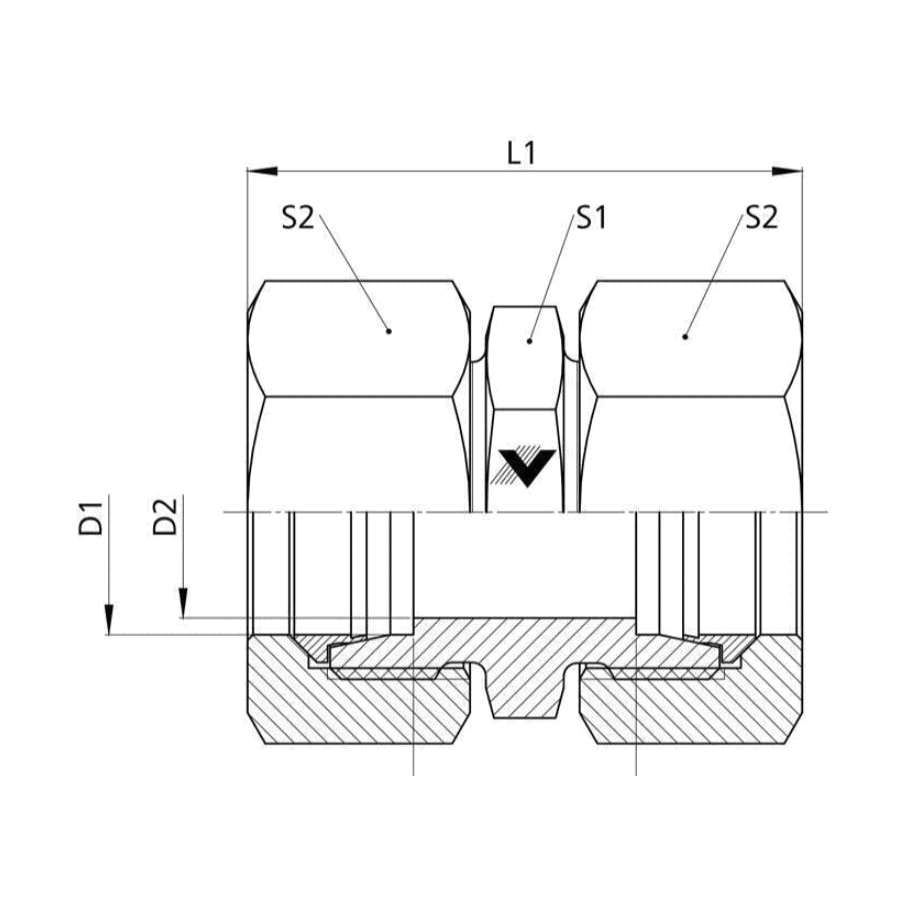

BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
HEX C 2 (MM)	10.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.037
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.195

D2403-E04-E04-SS

$60.51

Attribute: D2403-E04-E04-SS (E04MBT-E04MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 THREAD SIZE	M08X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 2 THREAD SIZE	M08X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	9.0
HEX C 1 (MM)	10.0
HEX C 2 (MM)	10.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.037
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.195

D2403-E06-E06

$20.69

Attribute: D2403-E06-E06 (E06MBT-E06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	11.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D2403-E06-E06-SS

$67.21

Attribute: D2403-E06-E06-SS (E06MBT-E06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M10X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M10X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	11.0
HEX C 1 (MM)	12.0
HEX C 2 (MM)	12.0
OVERALL LENGTH L1 (MM)	32.0
OVERALL LENGTH L2 (MM)	20.0
OVERALL LENGTH L3 (MM)	9.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.281

D2403-E08-E08

$19.24

Attribute: D2403-E08-E08 (E08MBT-E08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.067
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.419

D2403-E08-E08-SS

$77.75

Attribute: D2403-E08-E08-SS (E08MBT-E08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	35.0
OVERALL LENGTH L2 (MM)	23.0
OVERALL LENGTH L3 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.067
MAXIMUM DYNAMIC PRESSURE (BAR)	100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.419

D2403-L06-L06

$8.58

Attribute: D2403-L06-L06 (L06MBT-L06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.478

D2403-L06-L06-SS

$43.82

Attribute: D2403-L06-L06-SS (L06MBT-L06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M12X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	12.0
HEX C 1 (MM)	14.0
HEX C 2 (MM)	14.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	24.0
OVERALL LENGTH L3 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.090
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.478

D2403-L08-L08

$10.02

Attribute: D2403-L08-L08 (L08MBT-L08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.127
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.723

D2403-L08-L08-SS

$53.72

Attribute: D2403-L08-L08-SS (L08MBT-L08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	25.0
OVERALL LENGTH L3 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.127
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.723

D2403-L10-L10

$15.32

Attribute: D2403-L10-L10 (L10MBT-L10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.162
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D2403-L10-L10-SS

$68.66

Attribute: D2403-L10-L10-SS (L10MBT-L10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	27.0
OVERALL LENGTH L3 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.162
MAXIMUM DYNAMIC PRESSURE (BAR)	500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.947

D2403-L12-L12

$14.00

Attribute: D2403-L12-L12 (L12MBT-L12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.210
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D2403-L12-L12-SS

$81.59

Attribute: D2403-L12-L12-SS (L12MBT-L12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	28.0
OVERALL LENGTH L3 (MM)	14.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.210
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.300

D2403-L15-L15

$19.68

Attribute: D2403-L15-L15 (L15MBT-L15MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.342
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D2403-L15-L15-SS

$114.58

Attribute: D2403-L15-L15-SS (L15MBT-L15MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.342
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D2403-L18-L18

$28.76

Attribute: D2403-L18-L18 (L18MBT-L18MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.490
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

D2403-L18-L18-SS

$181.06

Attribute: D2403-L18-L18-SS (L18MBT-L18MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 2 THREAD SIZE	M26X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
HEX C 2 (MM)	32.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.490
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.124

D2403-L22-L22

$39.04

Attribute: D2403-L22-L22 (L22MBT-L22MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.429

D2403-L22-L22-SS

$227.70

Attribute: D2403-L22-L22-SS (L22MBT-L22MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	56.0
OVERALL LENGTH L2 (MM)	35.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.659
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.429

D2403-L28-L28

$68.95

Attribute: D2403-L28-L28 (L28MBT-L28MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.845
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

D2403-L28-L28-SS

$352.43

Attribute: D2403-L28-L28-SS (L28MBT-L28MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
HEX C 2 (MM)	41.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.845
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.950

D2403-L35-L35

$101.73

Attribute: D2403-L35-L35 (L35MBT-L35MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.293
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.916

D2403-L35-L35-SS

$497.95

Attribute: D2403-L35-L35-SS (L35MBT-L35MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 2 THREAD SIZE	M45X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	41.0
OVERALL LENGTH L3 (MM)	20.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.293
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.916

D2403-L42-L42

$149.09

Attribute: D2403-L42-L42 (L42MBT-L42MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.888
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.719

D2403-L42-L42-SS

$695.22

Attribute: D2403-L42-L42-SS (L42MBT-L42MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	67.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.888
MAXIMUM DYNAMIC PRESSURE (BAR)	250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.719

D2403-S06-S06

$10.72

Attribute: D2403-S06-S06 (S06MBT-S06MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.811

D2403-S06-S06-SS

$56.28

Attribute: D2403-S06-S06-SS (S06MBT-S06MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 2 THREAD SIZE	M14X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
HEX C 2 (MM)	17.0
OVERALL LENGTH L1 (MM)	46.0
OVERALL LENGTH L2 (MM)	30.0
OVERALL LENGTH L3 (MM)	16.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.159
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.811

D2403-S08-S08

$12.08

Attribute: D2403-S08-S08 (S08MBT-S08MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.201
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.057

D2403-S08-S08-SS

$67.17

Attribute: D2403-S08-S08-SS (S08MBT-S08MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 2 THREAD SIZE	M16X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
HEX C 2 (MM)	19.0
OVERALL LENGTH L1 (MM)	48.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	18.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.201
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.057

D2403-S10-S10

$14.85

Attribute: D2403-S10-S10 (S10MBT-S10MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (BAR)	800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.477

D2403-S10-S10-SS

$86.66

Attribute: D2403-S10-S10-SS (S10MBT-S10MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 2 THREAD SIZE	M18X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
HEX C 2 (MM)	22.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	17.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.477

D2403-S12-S12

$16.59

Attribute: D2403-S12-S12 (S12MBT-S12MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.327
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.828

D2403-S12-S12-SS

$96.14

Attribute: D2403-S12-S12-SS (S12MBT-S12MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 2 THREAD SIZE	M20X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
HEX C 2 (MM)	24.0
OVERALL LENGTH L1 (MM)	52.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.327
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.828

D2403-S14-S14

$30.81

Attribute: D2403-S14-S14 (S14MBT-S14MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.458
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.580

D2403-S14-S14-SS

$143.25

Attribute: D2403-S14-S14-SS (S14MBT-S14MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 2 THREAD SIZE	M22X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	24.0
HEX C 1 (MM)	27.0
HEX C 2 (MM)	27.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	22.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.458
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.580

D2403-S16-S16

$30.55

Attribute: D2403-S16-S16 (S16MBT-S16MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.551
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.185

D2403-S16-S16-SS

$180.97

Attribute: D2403-S16-S16-SS (S16MBT-S16MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 2 THREAD SIZE	M24X1.5
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
HEX C 2 (MM)	30.0
OVERALL LENGTH L1 (MM)	58.0
OVERALL LENGTH L2 (MM)	38.0
OVERALL LENGTH L3 (MM)	21.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.551
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.185

D2403-S20-S20

$45.91

Attribute: D2403-S20-S20 (S20MBT-S20MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	68.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	0.089
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.378

D2403-S20-S20-SS

$252.24

Attribute: D2403-S20-S20-SS (S20MBT-S20MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 2 THREAD SIZE	M30X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
HEX C 2 (MM)	36.0
OVERALL LENGTH L1 (MM)	68.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	23.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.890
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.378

D2403-S25-S25

$77.62

Attribute: D2403-S25-S25 (S25MBT-S25MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	76.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.647
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.814

D2403-S25-S25-SS

$429.41

Attribute: D2403-S25-S25-SS (S25MBT-S25MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 2 THREAD SIZE	M36X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
HEX C 2 (MM)	46.0
OVERALL LENGTH L1 (MM)	76.0
OVERALL LENGTH L2 (MM)	50.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.647
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.813

D2403-S30-S30

$107.92

Attribute: D2403-S30-S30 (S30MBT-S30MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	82.5
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	1.957
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.586

D2403-S30-S30-SS

$571.22

Attribute: D2403-S30-S30-SS (S30MBT-S30MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 2 THREAD SIZE	M42X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
HEX C 2 (MM)	50.0
OVERALL LENGTH L1 (MM)	82.5
OVERALL LENGTH L2 (MM)	54.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.957
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.586

D2403-S38-S38

$149.91

Attribute: D2403-S38-S38 (S38MBT-S38MBT Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	92.0
OVERALL LENGTH L2 (MM)	61.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
WEIGHT (LBS)	2.971
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.211

D2403-S38-S38-SS

$818.80

Attribute: D2403-S38-S38-SS (S38MBT-S38MBT ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 2 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 2 THREAD SIZE	M52X2.0
CONNECTION 2 SPECIFICATION	DIN 2353, ISO 8434-1
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
HEX C 2 (MM)	60.0
OVERALL LENGTH L1 (MM)	92.0
OVERALL LENGTH L2 (MM)	61.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.971
MAXIMUM DYNAMIC PRESSURE (BAR)	420
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.211

ID	10163824
Category	DIN Metric Tube Fittings

Description

Description

Variations (46)

D2403-E04-E04

D2403-E04-E04-SS

D2403-E06-E06

D2403-E06-E06-SS

D2403-E08-E08

D2403-E08-E08-SS

D2403-L06-L06

D2403-L06-L06-SS

D2403-L08-L08

D2403-L08-L08-SS

D2403-L10-L10

D2403-L10-L10-SS

D2403-L12-L12

D2403-L12-L12-SS

D2403-L15-L15

D2403-L15-L15-SS

D2403-L18-L18

D2403-L18-L18-SS

D2403-L22-L22

D2403-L22-L22-SS

D2403-L28-L28

D2403-L28-L28-SS

D2403-L35-L35

D2403-L35-L35-SS

D2403-L42-L42

D2403-L42-L42-SS

D2403-S06-S06

D2403-S06-S06-SS

D2403-S08-S08

D2403-S08-S08-SS

D2403-S10-S10

D2403-S10-S10-SS

D2403-S12-S12

D2403-S12-S12-SS

D2403-S14-S14

D2403-S14-S14-SS

D2403-S16-S16

D2403-S16-S16-SS

D2403-S20-S20

D2403-S20-S20-SS

D2403-S25-S25

D2403-S25-S25-SS

D2403-S30-S30

D2403-S30-S30-SS

D2403-S38-S38

D2403-S38-S38-SS

General Attributes

PDF Documents
