D0319

D0319-06

$1.32

Attribute: D0319-06 (06MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 06MM TUBE OD
CONNECTION 1 ID (MM)	6MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1

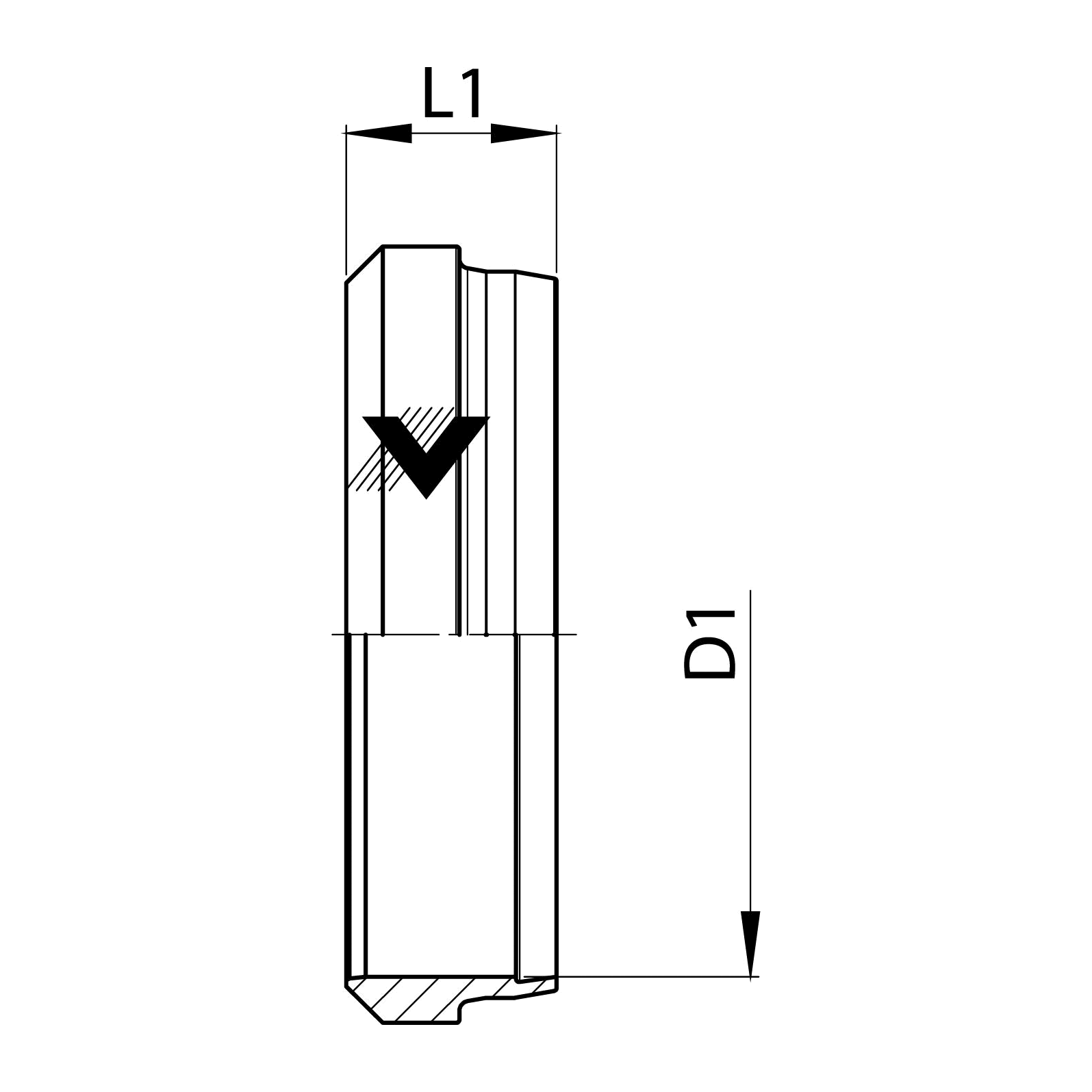

OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.004
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-06-SS

$7.72

Attribute: D0319-06-SS (06MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 06MM TUBE OD
CONNECTION 1 ID (MM)	6MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.004
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-08

$1.62

Attribute: D0319-08 (08MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 08MM TUBE OD
CONNECTION 1 ID (MM)	8MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	9.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.007
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-08-SS

$8.58

Attribute: D0319-08-SS (08MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 08MM TUBE OD
CONNECTION 1 ID (MM)	8MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	9.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.007
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-10

$2.51

Attribute: D0319-10 (10MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 10MM TUBE OD
CONNECTION 1 ID (MM)	10MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.009
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-10-SS

$11.82

Attribute: D0319-10-SS (10MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 10MM TUBE OD
CONNECTION 1 ID (MM)	10MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.009
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-12

$2.60

Attribute: D0319-12 (12MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 12MM TUBE OD
CONNECTION 1 ID (MM)	12MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	9.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.009
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-12-SS

$13.96

Attribute: D0319-12-SS (12MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT / HEAVY 12MM TUBE OD
CONNECTION 1 ID (MM)	12MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	9.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.009
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-14

$3.80

Attribute: D0319-14 (14MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 ID (MM)	14MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.013
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-14-SS

$15.36

Attribute: D0319-14-SS (14MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 ID (MM)	14MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.013
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-15

$2.98

Attribute: D0319-15 (15MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 ID (MM)	15MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.011
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-15-SS

$18.01

Attribute: D0319-15-SS (15MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 ID (MM)	15MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.011
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-16

$4.65

Attribute: D0319-16 (16MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 ID (MM)	16MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.015
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-16-SS

$17.45

Attribute: D0319-16-SS (16MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 ID (MM)	16MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.015
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-18

$4.74

Attribute: D0319-18 (18MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 ID (MM)	18MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.015
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-18-SS

$18.22

Attribute: D0319-18-SS (18MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 ID (MM)	18MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.015
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-20

$5.59

Attribute: D0319-20 (20MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 ID (MM)	20MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.026
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-20-SS

$20.01

Attribute: D0319-20-SS (20MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 ID (MM)	20MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.026
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-22

$6.40

Attribute: D0319-22 (22MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 ID (MM)	22MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.020
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-22-SS

$20.15

Attribute: D0319-22-SS (22MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 ID (MM)	22MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	10.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.020
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-25

$8.24

Attribute: D0319-25 (25MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 ID (MM)	25MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.033
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-25-SS

$28.67

Attribute: D0319-25-SS (25MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 ID (MM)	25MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	12.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.033
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-28

$8.40

Attribute: D0319-28 (28MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 ID (MM)	28MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.026
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-28-SS

$31.06

Attribute: D0319-28-SS (28MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 ID (MM)	28MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	11.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.026
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-30

$11.22

Attribute: D0319-30 (30MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 ID (MM)	30MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.044
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-30-SS

$43.82

Attribute: D0319-30-SS (30MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 ID (MM)	30MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.044
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-35

$15.27

Attribute: D0319-35 (35MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 ID (MM)	35MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.051
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-35-SS

$43.31

Attribute: D0319-35-SS (35MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 ID (MM)	35MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.051
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-38

$17.24

Attribute: D0319-38 (38MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 ID (MM)	38MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.055
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-38-SS

$46.85

Attribute: D0319-38-SS (38MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 ID (MM)	38MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.055
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-42

$19.76

Attribute: D0319-42 (42MM MBT DOUBLE-BITE C...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 ID (MM)	42MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
WEIGHT (LBS)	0.059
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-42-SS

$49.41

Attribute: D0319-42-SS (42MM MBT DOUBLE-BIT...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 ID (MM)	42MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
OVERALL LENGTH L1 (MM)	13.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.059
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-E04

$2.39

Attribute: D0319-E04 (04MM MBT SINGLE-BITE ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 04MM TUBE OD
CONNECTION 1 ID (MM)	04MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-E06

$2.39

Attribute: D0319-E06 (06MM MBT SINGLE-BITE ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 06MM TUBE OD
CONNECTION 1 ID (MM)	06MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-E08

$2.77

Attribute: D0319-E08 (08MM MBT SINGLE-BITE ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 08MM TUBE OD
CONNECTION 1 ID (MM)	08MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

D0319-E10

$3.16

Attribute: D0319-E10 (10MM MBT SINGLE-BITE ...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE SLEEVE
CONNECTION 1 TUBE SIZE	EXTRA LIGHT 10MM TUBE OD
CONNECTION 1 ID (MM)	10MM
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

ID	10163785
Category	DIN Metric Tube Fittings

Description

Description

Variations (36)

D0319-06

D0319-06-SS

D0319-08

D0319-08-SS

D0319-10

D0319-10-SS

D0319-12

D0319-12-SS

D0319-14

D0319-14-SS

D0319-15

D0319-15-SS

D0319-16

D0319-16-SS

D0319-18

D0319-18-SS

D0319-20

D0319-20-SS

D0319-22

D0319-22-SS

D0319-25

D0319-25-SS

D0319-28

D0319-28-SS

D0319-30

D0319-30-SS

D0319-35

D0319-35-SS

D0319-38

D0319-38-SS

D0319-42

D0319-42-SS

D0319-E04

D0319-E06

D0319-E08

D0319-E10

General Attributes

PDF Documents
