D2405

D2405-L06-02-SS

$92.13

Attribute: D2405-L06-02-SS (L06MBT-02FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/8-27
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	14.0
HEX C 1 (MM)	14.0

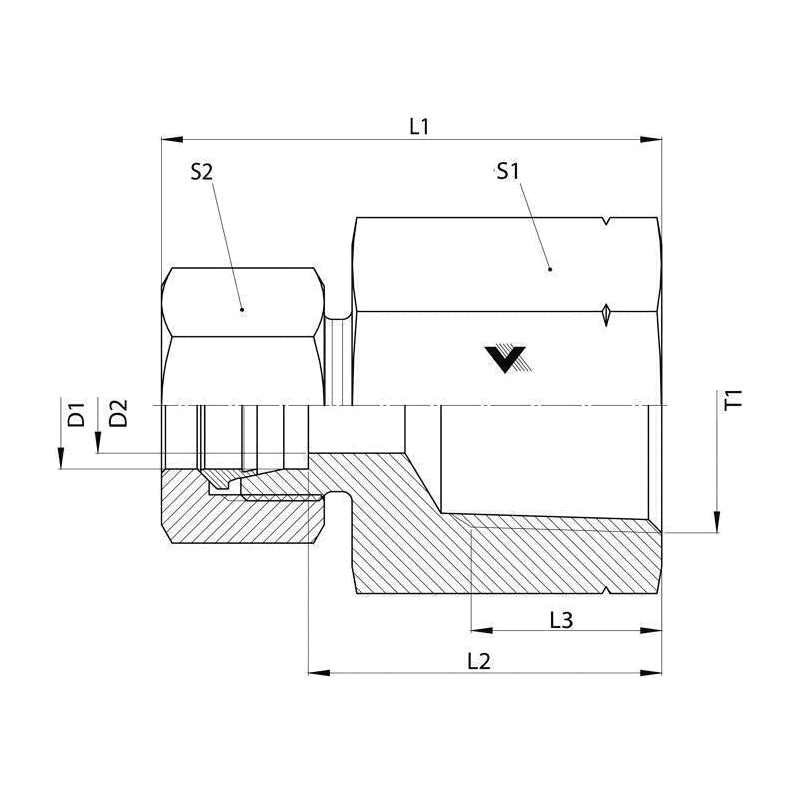

OVERALL LENGTH L1 (MM)	34.0
OVERALL LENGTH L2 (MM)	26.0
OVERALL LENGTH L3 (MM)	19.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.073
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.407

D2405-L06-04-SS

$97.76

Attribute: D2405-L06-04-SS (L06MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M12X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.135
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.925

D2405-L08-04-SS

$101.95

Attribute: D2405-L08-04-SS (L08MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.135
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D2405-L10-04-SS

$97.76

Attribute: D2405-L10-04-SS (L10MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	40.0
OVERALL LENGTH L2 (MM)	32.0
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.149
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

D2405-L10-06-SS

$117.48

Attribute: D2405-L10-06-SS (L10MBT-06FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.199
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D2405-L10-08-SS

$129.76

Attribute: D2405-L10-08-SS (L10MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	47.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.253
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.091

D2405-L12-04-SS

$97.55

Attribute: D2405-L12-04-SS (L12MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.171
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

D2405-L12-06-SS

$116.36

Attribute: D2405-L12-06-SS (L12MBT-06FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	26.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.218
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

D2405-L12-08-SS

$143.46

Attribute: D2405-L12-08-SS (L12MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	51.0
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.311
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.269

D2405-L15-08-SS

$176.11

Attribute: D2405-L15-08-SS (L15MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 15MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	37.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.365
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.336

D2405-L18-06-SS

$176.11

Attribute: D2405-L18-06-SS (L18MBT-06FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.467
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.343

D2405-L18-08-SS

$207.26

Attribute: D2405-L18-08-SS (L18MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 18MM TUBE OD
CONNECTION 1 THREAD SIZE	M26X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.422
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.343

D2405-L22-12-SS

$366.47

Attribute: D2405-L22-12-SS (L22MBT-12FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 22MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	53.5
OVERALL LENGTH L2 (MM)	43.0
OVERALL LENGTH L3 (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.634
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.231

D2405-L28-16-SS

$488.55

Attribute: D2405-L28-16-SS (L28MBT-16FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 28MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
HEX C 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	49.0
OVERALL LENGTH L3 (MM)	41.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.810
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.155

D2405-L35-20-SS

$739.68

Attribute: D2405-L35-20-SS (L35MBT-20FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 35MM TUBE OD
CONNECTION 1 THREAD SIZE	M45X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	55.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	63.0
OVERALL LENGTH L2 (MM)	51.0
OVERALL LENGTH L3 (MM)	40.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.449
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	11.630

D2405-L42-24-SS

$812.31

Attribute: D2405-L42-24-SS (L42MBT-24FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	LIGHT 42MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.817
MAXIMUM DYNAMIC PRESSURE (BAR)	160
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.280

D2405-S06-04-SS

$103.78

Attribute: D2405-S06-04-SS (S06MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 06MM TUBE OD
CONNECTION 1 THREAD SIZE	M14X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L1 (MM)	44.0
OVERALL LENGTH L2 (MM)	36.0
OVERALL LENGTH L3 (MM)	29.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.165
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.969

D2405-S08-04-SS

$106.98

Attribute: D2405-S08-04-SS (S08MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 08MM TUBE OD
CONNECTION 1 THREAD SIZE	M16X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	39.0
OVERALL LENGTH L2 (MM)	31.0
OVERALL LENGTH L3 (MM)	24.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.152
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.859

D2405-S10-04-SS

$149.14

Attribute: D2405-S10-04-SS (S10MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.0
OVERALL LENGTH L2 (MM)	33.0
OVERALL LENGTH L3 (MM)	25.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.192
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.240

D2405-S10-06-SS

$120.25

Attribute: D2405-S10-06-SS (S10MBT-06FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 10MM TUBE OD
CONNECTION 1 THREAD SIZE	M18X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	27.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.243
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.511

D2405-S12-04-SS

$131.56

Attribute: D2405-S12-04-SS (S12MBT-04FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/4-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	41.5
OVERALL LENGTH L2 (MM)	32.5
OVERALL LENGTH L3 (MM)	25.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.244
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.459

D2405-S12-06-SS

$124.01

Attribute: D2405-S12-06-SS (S12MBT-06FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/8-18
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	43.0
OVERALL LENGTH L2 (MM)	34.0
OVERALL LENGTH L3 (MM)	26.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.258
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.511

D2405-S12-08-SS

$171.89

Attribute: D2405-S12-08-SS (S12MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 12MM TUBE OD
CONNECTION 1 THREAD SIZE	M20X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L1 (MM)	53.0
OVERALL LENGTH L2 (MM)	44.0
OVERALL LENGTH L3 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.353
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.358

D2405-S14-08-SS

$155.19

Attribute: D2405-S14-08-SS (S14MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 14MM TUBE OD
CONNECTION 1 THREAD SIZE	M22X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	30.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	50.0
OVERALL LENGTH L2 (MM)	40.0
OVERALL LENGTH L3 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.429
MAXIMUM DYNAMIC PRESSURE (BAR)	630
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.746

D2405-S16-08-SS

$190.66

Attribute: D2405-S16-08-SS (S16MBT-08FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 16MM TUBE OD
CONNECTION 1 THREAD SIZE	M24X1.5
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1/2-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	49.0
OVERALL LENGTH L2 (MM)	39.0
OVERALL LENGTH L3 (MM)	30.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.380
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.691

D2405-S20-12-SS

$424.59

Attribute: D2405-S20-12-SS (S20MBT-12FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 20MM TUBE OD
CONNECTION 1 THREAD SIZE	M30X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	3/4-14
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L1 (MM)	57.0
OVERALL LENGTH L2 (MM)	45.0
OVERALL LENGTH L3 (MM)	34.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.720
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.508

D2405-S25-16-SS

$543.44

Attribute: D2405-S25-16-SS (S25MBT-16FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 25MM TUBE OD
CONNECTION 1 THREAD SIZE	M36X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L1 (MM)	66.0
OVERALL LENGTH L2 (MM)	53.0
OVERALL LENGTH L3 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.152
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.522

D2405-S30-20-SS

$821.96

Attribute: D2405-S30-20-SS (S30MBT-20FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 30MM TUBE OD
CONNECTION 1 THREAD SIZE	M42X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/4-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	50.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	66.2
OVERALL LENGTH L2 (MM)	52.0
OVERALL LENGTH L3 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	1.376
MAXIMUM DYNAMIC PRESSURE (BAR)	400
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.107

D2405-S38-24-SS

$1,015.99

Attribute: D2405-S38-24-SS (S38MBT-24FP Str...)

Stock Status: True

CONNECTION 1 TYPE	DIN METRIC TUBE COMPRESSION
CONNECTION 1 TUBE SIZE	HEAVY 38MM TUBE OD
CONNECTION 1 THREAD SIZE	M52X2.0
CONNECTION 1 SPECIFICATION	DIN 2353, ISO 8434-1
CONNECTION 2 TYPE	FEMALE NPT
CONNECTION 2 THREAD SIZE	1-1/2-11-1/2
CONNECTION 2 SPECIFICATION	ANSI B1.20.1
BODY HEX (MM)	60.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L1 (MM)	74.5
OVERALL LENGTH L2 (MM)	59.0
OVERALL LENGTH L3 (MM)	43.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	2.261
MAXIMUM DYNAMIC PRESSURE (BAR)	315
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.367

ID	10163710
Category	DIN Metric Tube Fittings

Description

Description

Variations (29)

D2405-L06-02-SS

D2405-L06-04-SS

D2405-L08-04-SS

D2405-L10-04-SS

D2405-L10-06-SS

D2405-L10-08-SS

D2405-L12-04-SS

D2405-L12-06-SS

D2405-L12-08-SS

D2405-L15-08-SS

D2405-L18-06-SS

D2405-L18-08-SS

D2405-L22-12-SS

D2405-L28-16-SS

D2405-L35-20-SS

D2405-L42-24-SS

D2405-S06-04-SS

D2405-S08-04-SS

D2405-S10-04-SS

D2405-S10-06-SS

D2405-S12-04-SS

D2405-S12-06-SS

D2405-S12-08-SS

D2405-S14-08-SS

D2405-S16-08-SS

D2405-S20-12-SS

D2405-S25-16-SS

D2405-S30-20-SS

D2405-S38-24-SS

General Attributes

PDF Documents
