Brennan product

9900-06-SS-VITON

Scraped SKU: 9900-06-ss-viton Series: ISO 1179 BSPP Bonded Seal Price: 29.73 USD 2026-06-05 05:42:18

Attributes

Part Number9900-06-SS-VITON
Is Series Page0

Description

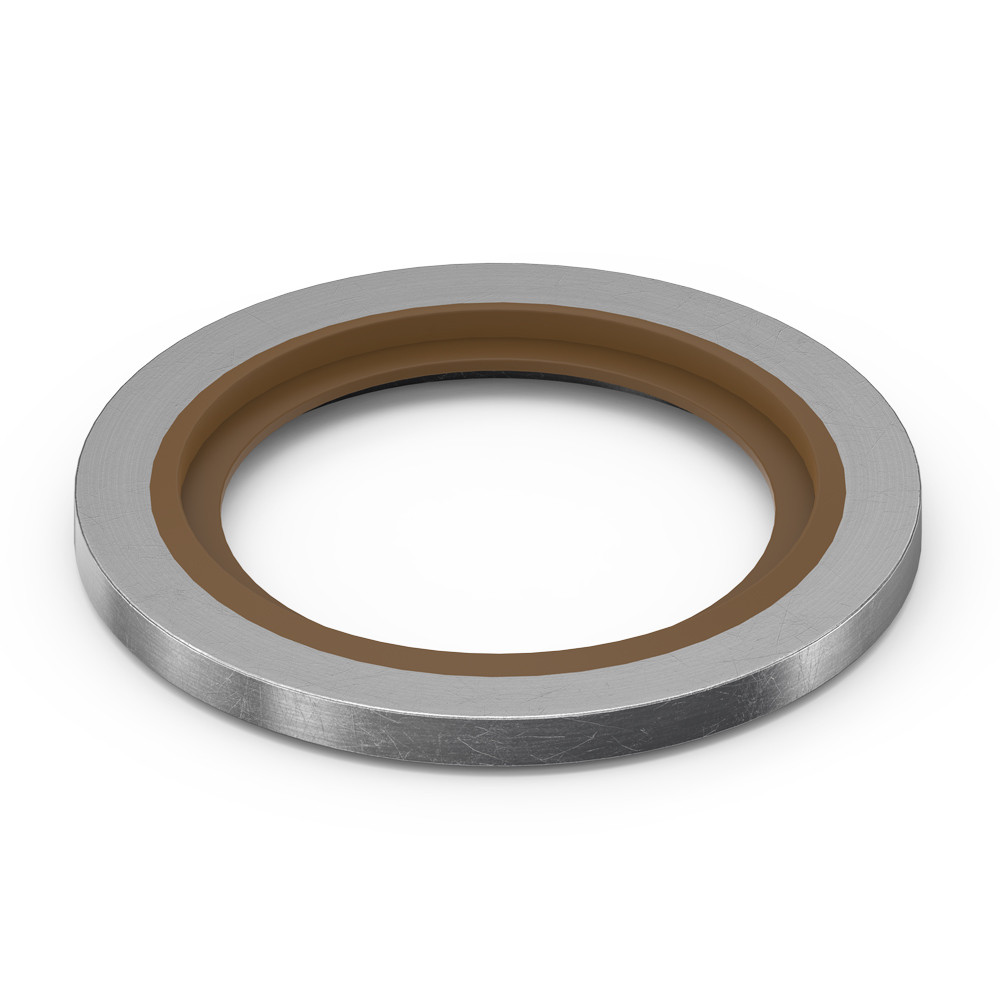

Stainless Steel/Fluorocarbon, BSPP Bonded Seal Gasket for Dash Size -06 BSPP (Type D) Port

Specifications

Specifications

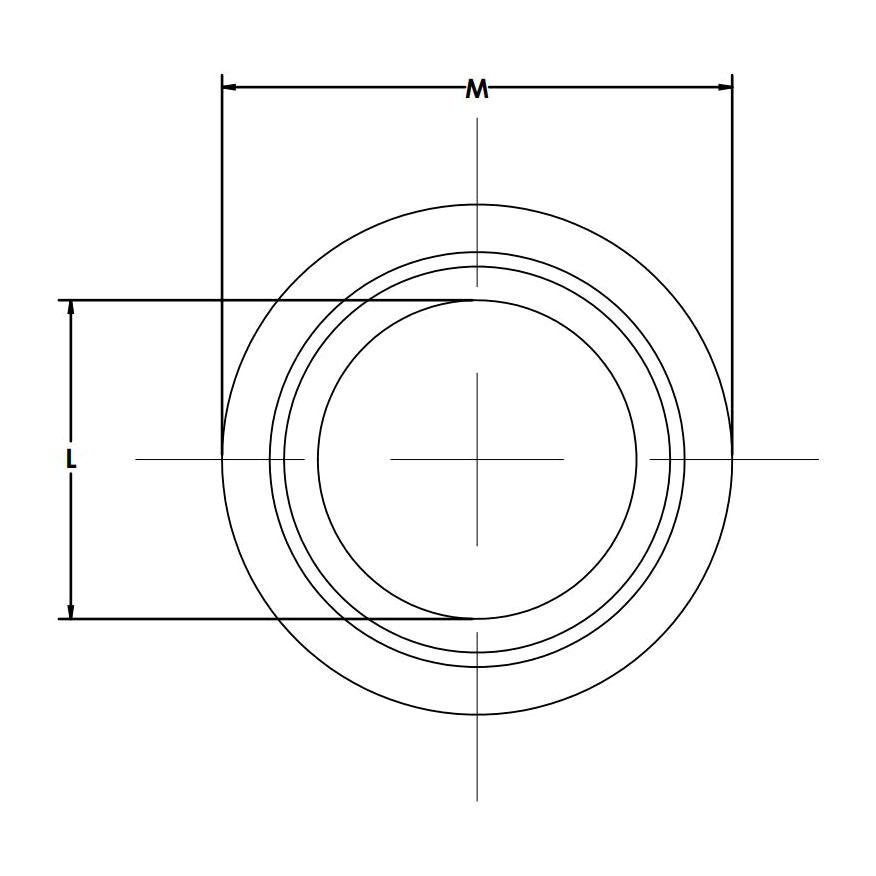

{"Nominal OD":"3/8\"","Exact OD":"0.937\"","Exact ID":"0.589\"","Exact Width":"0.08\"","Color":"Brown","Gasket Dash Size":"-06","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Temperature":"-15°F to 400°F","Seal Hardness":"75 Durometer"}
Application & Performance
{"Chemical Resistance":"Petroleum oils, mineral oils, synthetic lubricants, fuels, diesel, gasoline, hydraulic oils, phosphate ester fluids, silicone oils and greases, diester lubricants, aromatic hydrocarbons, many chlorinated hydrocarbons, mild acids","Not Recommended For":"Ketones, amines, low molecular weight esters and ethers, hot hydrofluoric acids, strong alkalis, steam, hot water, glycol-based brake fluids"}
Cross References{"Parker TFD Part Number":"D9DT-6-SS FKM"}
ShapeWasher

PDF Documents

No PDF documents.
