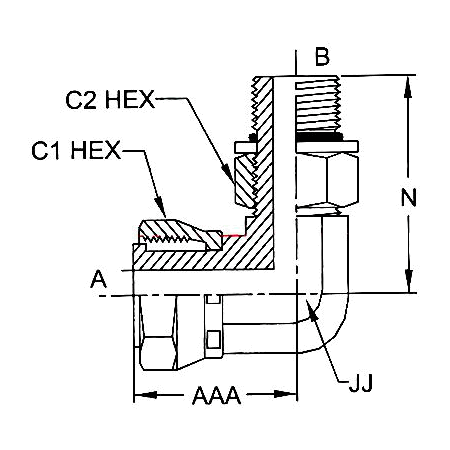

FS6809-NWO-FG

Attribute: FS6809-04-04-NWO-FG (04FFSS-04MA...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	7/16-20
A HOLE	0.165
B HOLE	0.172
AAA LGTH	1.04
N LGTH	1.29
C1 HEX	0.687
C2 HEX	0.625
JJ FLATS	0.562
MATERIAL	STEEL FORGED

Attribute: FS6809-06-06-NWO-FG (06FFSS-06MA...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	9/16-18
A HOLE	0.264
B HOLE	0.264
AAA LGTH	1.15
N LGTH	1.450
C1 HEX	0.812
C2 HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

Attribute: FS6809-08-08-NWO-FG (08FFSS-08MA...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	3/4-16
A HOLE	0.358
B HOLE	0.378
AAA LGTH	1.49
N LGTH	1.60
C1 HEX	0.938
C2 HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

Attribute: FS6809-10-10-NWO-FG (10FFSS-10MA...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	7/8-14
A HOLE	0.453
B HOLE	0.484
AAA LGTH	1.62
N LGTH	1.97
C1 HEX	1.125
C2 HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

Attribute: FS6809-12-12-NWO-FG (12FFSS-12MA...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-1/16-12
A HOLE	0.547
B HOLE	0.609
AAA LGTH	1.82
N LGTH	2.17
C1 HEX	1.375
C2 HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

Attribute: FS6809-16-16-NWO-FG (16FFSS-16MA...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/16-12
A HOLE	0.783
B HOLE	0.811
AAA LGTH	2.10
N LGTH	2.35
C1 HEX	1.625
C2 HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

Attribute: FS6809-20-20-NWO-FG (20FFSS-20MA...)

Stock Status: True

TUBE O.D.	1 1/2
A THREAD	1-11/16-12
B THREAD	1-5/8-12
A HOLE	1.024
B HOLE	1.024
AAA LGTH	2.29
N LGTH	2.45
C1 HEX	1.875
C2 HEX	1.875
JJ FLATS	1.625
MATERIAL	STEEL FORGED
