O-Ring Face Seal Fittings

FS6804-NWO-FG

Scraped 2026-02-15 08:27:16

Description

Description

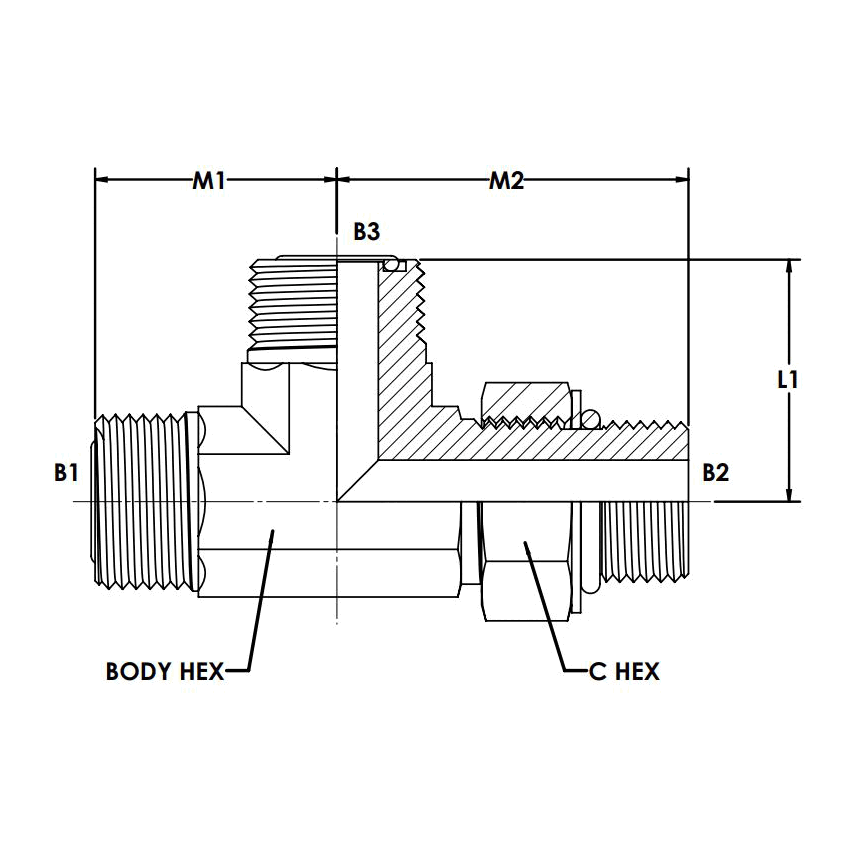

MFS-MAORB-MFS Tee

Variations (24)

FS6804-04-04-04-NWO-FG

$18.56

Attribute: FS6804-04-04-04-NWO-FG (04MFS-04...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
B THREAD7/16-20
A2 THREAD9/16-18
A1 DRILL0.172
B DRILL0.172
A2 DRILL0.172
M1 LGTH0.85
N LGTH1.29
M2 LGTH0.85
C HEX0.625
JJ FLATS0.562
MATERIALSTEEL FORGED

FS6804-04-06-04-NWO-FG

$23.82

Attribute: FS6804-04-06-04-NWO-FG (04MFS-06...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
B THREAD9/16-18
A2 THREAD9/16-18
A1 DRILL0.172
B DRILL0.264
A2 DRILL0.172
M1 LGTH0.92
N LGTH1.45
M2 LGTH0.92
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-04-08-04-NWO-FG

$27.47

Attribute: FS6804-04-08-04-NWO-FG (04MFS-08...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
B THREAD3/4-16
A2 THREAD9/16-18
A1 DRILL0.172
B DRILL0.378
A2 DRILL0.172
M1 LGTH0.980
N LGTH1.600
M2 LGTH0.980
C HEX0.750
JJ FLATS0.938
MATERIALSTEEL

FS6804-06-04-06-NWO-FG

$21.71

Attribute: FS6804-06-04-06-NWO-FG (06MFS-04...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
B THREAD7/16-20
A2 THREAD11/16-16
A1 DRILL0.172
B DRILL0.172
A2 DRILL0.264
M1 LGTH0.980
N LGTH1.370
M2 LGTH0.980
C HEX0.625
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-06-06-06-NWO-FG

$22.00

Attribute: FS6804-06-06-06-NWO-FG (06MFS-06...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
B THREAD9/16-18
A2 THREAD11/16-16
A1 DRILL0.264
B DRILL0.264
A2 DRILL0.264
M1 LGTH0.980
N LGTH1.450
M2 LGTH0.980
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-06-08-06-NWO-FG

$39.33

Attribute: FS6804-06-08-06-NWO-FG (06MFS-08...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
B THREAD3/4-16
A2 THREAD11/16-16
A1 DRILL0.264
B DRILL0.378
A2 DRILL0.264
M1 LGTH1.040
N LGTH1.600
M2 LGTH1.040
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-08-06-08-NWO-FG

$30.28

Attribute: FS6804-08-06-08-NWO-FG (08MFS-06...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD9/16-18
A2 THREAD13/16-16
A1 DRILL0.378
B DRILL0.264
A2 DRILL0.378
M1 LGTH1.100
N LGTH1.440
M2 LGTH1.100
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-08-08-04-NWO-FG

$60.60

Attribute: FS6804-08-08-04-NWO-FG (08MFS-08...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD3/4-16
A2 THREAD9/16-18
A1 DRILL0.378
B DRILL0.378
A2 DRILL0.172
M1 LGTH1.10
N LGTH1.60
M2 LGTH0.97
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-08-08-08-NWO-FG

$27.71

Attribute: FS6804-08-08-08-NWO-FG (08MFS-08...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD3/4-16
A2 THREAD13/16-16
A1 DRILL0.378
B DRILL0.378
A2 DRILL0.378
M1 LGTH1.100
N LGTH1.600
M2 LGTH1.100
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6804-08-10-08-NWO-FG

$50.60

Attribute: FS6804-08-10-08-NWO-FG (08MFS-10...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD7/8-14
A2 THREAD13/16-16
A1 DRILL0.378
B DRILL0.484
A2 DRILL0.378
M1 LGTH1.210
N LGTH1.970
M2 LGTH1.210
C HEX1.062
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6804-08-12-04-NWO-FG

$140.55

Attribute: FS6804-08-12-04-NWO-FG (08MFS-12...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD1-1/16-12
A2 THREAD9/16-18
A1 DRILL0.378
B DRILL0.609
A2 DRILL0.172
M1 LGTH1.32
N LGTH2.17
M2 LGTH1.19
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6804-08-12-08-NWO-FG

$66.69

Attribute: FS6804-08-12-08-NWO-FG (08MFS-12...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD1-1/16-12
A2 THREAD13/16-16
A1 DRILL0.378
B DRILL0.609
A2 DRILL0.378
M1 LGTH1.320
N LGTH2.170
M2 LGTH1.320
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6804-10-10-06-NWO-FG

$48.58

Attribute: FS6804-10-10-06-NWO-FG (10MFS-10...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
B THREAD7/8-14
A2 THREAD11/16-16
A1 DRILL0.484
B DRILL0.484
A2 DRILL0.264
M1 LGTH1.310
N LGTH1.970
M2 LGTH1.150
C HEX1.062
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6804-10-10-10-NWO-FG

$35.34

Attribute: FS6804-10-10-10-NWO-FG (10MFS-10...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
B THREAD7/8-14
A2 THREAD1-14
A1 DRILL0.484
B DRILL0.484
A2 DRILL0.484
M1 LGTH1.310
N LGTH1.970
M2 LGTH1.310
C HEX1.062
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6804-10-12-10-NWO-FG

$103.47

Attribute: FS6804-10-12-10-NWO-FG (10MFS-12...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
B THREAD1-1/16-12
A2 THREAD1-14
A1 DRILL0.484
B DRILL0.484
A2 DRILL0.484
M1 LGTH1.41
N LGTH2.17
M2 LGTH1.41
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6804-12-08-12-NWO-FG

$90.77

Attribute: FS6804-12-08-12-NWO-FG (12MFS-08...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
B THREAD3/4-16
A2 THREAD1-3/16-12
A1 DRILL0.378
B DRILL0.378
A2 DRILL0.609
M1 LGTH1.47
N LGTH1.84
M2 LGTH1.47
C HEX0.938
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6804-12-12-08-NWO-FG

$151.96

Attribute: FS6804-12-12-08-NWO-FG (12MFS-12...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
B THREAD1-1/16-12
A2 THREAD13/16-16
A1 DRILL0.609
B DRILL0.609
A2 DRILL0.378
M1 LGTH1.470
N LGTH2.170
M2 LGTH1.320
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6804-12-12-12-NWO-FG

$59.27

Attribute: FS6804-12-12-12-NWO-FG (12MFS-12...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
B THREAD1-1/16-12
A2 THREAD1-3/16-12
A1 DRILL0.609
B DRILL0.609
A2 DRILL0.609
M1 LGTH1.47
N LGTH2.17
M2 LGTH1.47
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6804-12-16-12-NWO-FG

$103.47

Attribute: FS6804-12-16-12-NWO-FG (12MFS-16...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
B THREAD1-5/16-12
A2 THREAD1-3/16-12
A1 DRILL0.609
B DRILL0.811
A2 DRILL0.609
M1 LGTH1.620
N LGTH2.350
M2 LGTH1.620
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL

FS6804-16-12-12-NWO-FG

$89.06

Attribute: FS6804-16-12-12-NWO-FG (16MFS-12...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
B THREAD1-1/16-12
A2 THREAD1-3/16-12
A1 DRILL0.811
B DRILL0.609
A2 DRILL0.609
M1 LGTH1.64
N LGTH2.32
M2 LGTH1.62
C HEX1.375
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6804-16-12-16-NWO-FG

$101.80

Attribute: FS6804-16-12-16-NWO-FG (16MFS-12...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
B THREAD1-1/16-12
A2 THREAD1-7/16-12
A1 DRILL0.811
B DRILL0.609
A2 DRILL0.811
M1 LGTH1.640
N LGTH2.320
M2 LGTH1.640
C HEX1.375
JJ FLATS1.438
MATERIALSTEEL

FS6804-16-16-16-NWO-FG

$74.43

Attribute: FS6804-16-16-16-NWO-FG (16MFS-16...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
B THREAD1-5/16-12
A2 THREAD1-7/16-12
A1 DRILL0.811
B DRILL0.811
A2 DRILL0.811
M1 LGTH1.640
N LGTH2.350
M2 LGTH1.640
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6804-20-20-20-NWO-FG

$88.06

Attribute: FS6804-20-20-20-NWO-FG (20MFS-20...)

Stock Status: True

TUBE O.D.1-1/4
A1 THREAD1-11/16-12
B THREAD1-5/8-12
A2 THREAD1-11/16-12
A1 DRILL1.024
B DRILL1.024
A2 DRILL1.024
M1 LGTH1.760
N LGTH2.450
M2 LGTH1.760
C HEX1.875
JJ FLATS1.625
MATERIALSTEEL FORGED

FS6804-24-24-24-NWO-FG

$177.15

Attribute: FS6804-24-24-24-NWO-FG (24MFS-24...)

Stock Status: True

TUBE O.D.1 1/2
A1 THREAD2-12
B THREAD1-7/8-12
A2 THREAD2-12
A1 DRILL1.260
B DRILL1.260
A2 DRILL1.260
M1 LGTH1.920
N LGTH2.590
M2 LGTH1.920
C HEX2.125
JJ FLATS1.875
MATERIALSTEEL FORGED

General Attributes

Connections ORB, Face Seal
Shape Tee
