O-Ring Face Seal Fittings

FS6803-NWO-FG

Scraped 2026-02-15 08:27:16

Description

Description

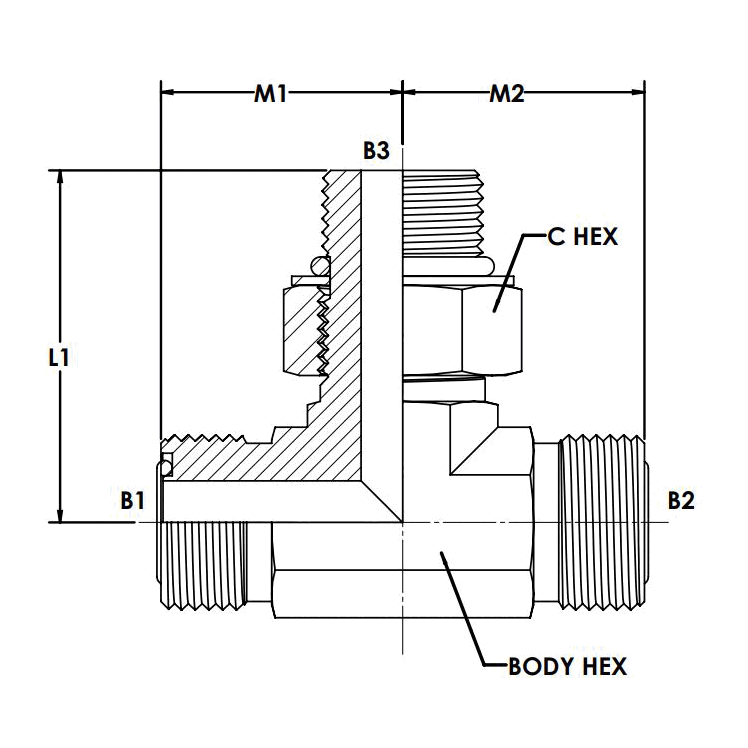

MFS-MFS-MAORB Tee

Variations (11)

FS6803-04-04-04-NWO-FG

$18.66

Attribute: FS6803-04-04-04-NWO-FG (04MFS-04...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD7/16-20
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.172
M1 LGTH0.85
M2 LGTH0.85
N LGTH1.29
C HEX0.625
JJ FLATS0.562
MATERIALSTEEL FORGED

FS6803-04-04-06-NWO-FG

$30.52

Attribute: FS6803-04-04-06-NWO-FG (04MFS-04...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.264
M1 LGTH0.920
M2 LGTH0.920
N LGTH1.450
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6803-06-06-04-NWO-FG

$33.52

Attribute: FS6803-06-06-04-NWO-FG (06MFS-06...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD7/16-20
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.172
M1 LGTH0.980
M2 LGTH0.980
N LGTH1.370
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6803-06-06-06-NWO-FG

$18.31

Attribute: FS6803-06-06-06-NWO-FG (06MFS-06...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD9/16-18
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.264
M1 LGTH0.98
M2 LGTH0.98
N LGTH1.45
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6803-06-06-08-NWO-FG

$97.91

Attribute: FS6803-06-06-08-NWO-FG (06MFS-06...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD3/4-16
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.378
M1 LGTH1.040
M2 LGTH1.040
N LGTH1.600
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6803-08-08-08-NWO-FG

$33.52

Attribute: FS6803-08-08-08-NWO-FG (08MFS-08...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
B THREAD3/4-16
A1 DRILL0.378
A2 DRILL0.378
B DRILL0.378
M1 LGTH1.10
M2 LGTH1.10
N LGTH1.60
C HEX0.937
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6803-10-10-10-NWO-FG

$32.25

Attribute: FS6803-10-10-10-NWO-FG (10MFS-10...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
A2 THREAD1-14
B THREAD7/8-14
A1 DRILL0.484
A2 DRILL0.484
B DRILL0.484
M1 LGTH1.31
M2 LGTH1.31
N LGTH1.97
C HEX1.062
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6803-12-12-10-NWO-FG

$139.35

Attribute: FS6803-12-12-10-NWO-FG (12MFS-12...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
B THREAD7/8-14
A1 DRILL0.610
A2 DRILL0.610
B DRILL0.491
M1 LGTH1.480
M2 LGTH1.480
N LGTH2.010
C HEX1.062
JJ FLATS1.188
MATERIALSTEEL

FS6803-12-12-12-NWO-FG

$56.76

Attribute: FS6803-12-12-12-NWO-FG (12MFS-12...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
B THREAD1-1/16-12
A1 DRILL0.609
A2 DRILL0.609
B DRILL0.609
M1 LGTH1.47
M2 LGTH1.47
N LGTH2.17
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6803-16-16-16-NWO-FG

$87.82

Attribute: FS6803-16-16-16-NWO-FG (16MFS-16...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
B THREAD1-5/16-12
A1 DRILL0.811
A2 DRILL0.811
B DRILL0.811
M1 LGTH1.64
M2 LGTH1.64
N LGTH2.35
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6803-20-20-20-NWO-FG

$109.03

Attribute: FS6803-20-20-20-NWO-FG (20MFS-20...)

Stock Status: True

TUBE O.D.1 1/4
A1 THREAD1-11/16-12
A2 THREAD1-11/16-12
B THREAD1-5/8-12
A1 DRILL1.024
A2 DRILL1.024
B DRILL1.024
M1 LGTH1.760
M2 LGTH1.760
N LGTH2.450
C HEX1.875
JJ FLATS1.625
MATERIALSTEEL FORGED

General Attributes

Connections ORB, Face Seal
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
