O-Ring Face Seal Fittings

FS6803-L-NWO-FG

Scraped 2026-02-15 08:27:16

Description

Description

MFS-MFS-MAORB Tee Long

Variations (1)

FS6803-L-12-12-12-NWO-FG

$0.00

Attribute: FS6803-L-12-12-12-NWO-FG (12MFS-...)

Stock Status: True

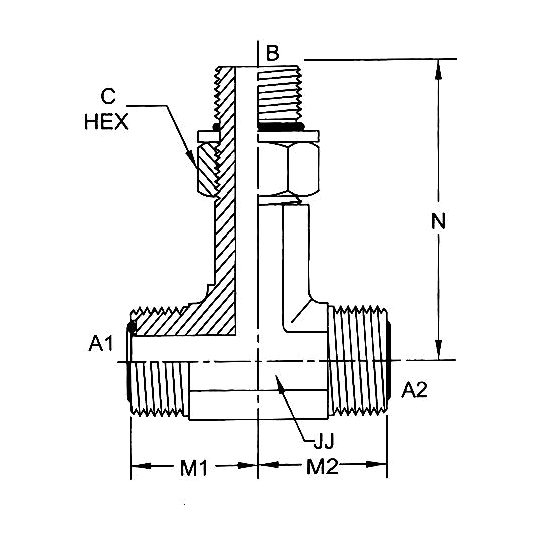

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
B THREAD1-1/16-12
A1 DRILL.609
A2 DRILL.609
B DRILL.609
M1 LGTH1.47
M2 LGTH1.47
N LGTH2.67
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

General Attributes

Connections ORB, Face Seal
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
