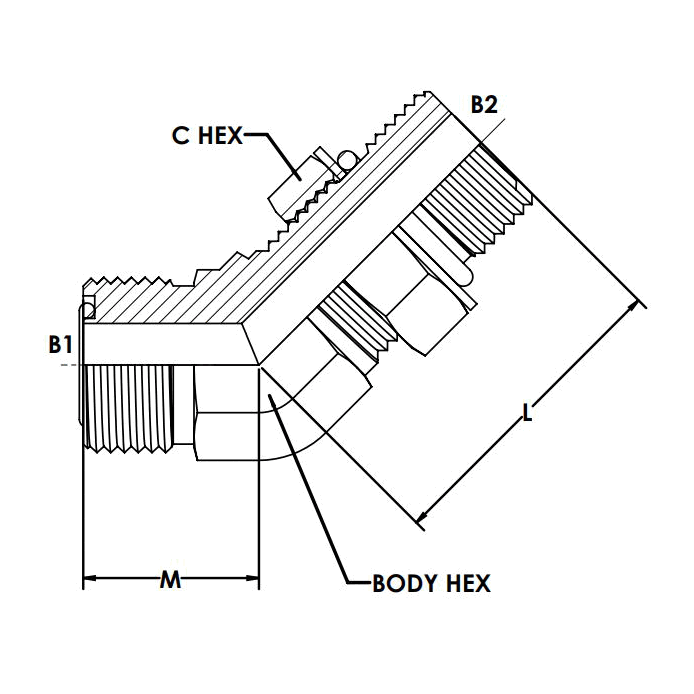

FS6802-NWO-FG

FS6802-04-04-NWO-FG

$10.73

Attribute: FS6802-04-04-NWO-FG (04MFS-04MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	7/16-20
A DRILL	0.172
B DRILL	0.172
M LGTH	0.630
N LGTH	1.180
C HEX	0.625
JJ FLATS	0.562
MATERIAL	STEEL FORGED

FS6802-04-06-NWO-FG

$16.29

Attribute: FS6802-04-06-NWO-FG (04MFS-06MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	9/16-18
A DRILL	0.172
B DRILL	0.264
M LGTH	0.68
N LGTH	1.30
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-04-08-NWO-FG

$46.91

Attribute: FS6802-04-08-NWO-FG (04MFS-08MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	3/4-16
A DRILL	0.172
B DRILL	0.378
M LGTH	0.67
N LGTH	1.43
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-06-04-NWO-FG

$14.72

Attribute: FS6802-06-04-NWO-FG (06MFS-04MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	7/16-20
A DRILL	0.264
B DRILL	0.172
M LGTH	0.740
N LGTH	1.220
C HEX	0.625
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-06-06-NWO-FG

$14.76

Attribute: FS6802-06-06-NWO-FG (06MFS-06MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	9/16-18
A DRILL	0.264
B DRILL	0.264
M LGTH	0.74
N LGTH	1.30
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-06-08-NWO-FG

$21.01

Attribute: FS6802-06-08-NWO-FG (06MFS-08MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	3/4-16
A DRILL	0.264
B DRILL	0.378
M LGTH	0.740
N LGTH	1.430
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-06-08-NWO-SS

$470.23

Attribute: FS6802-06-08-NWO-SS (06MFS-08MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	3/4-16
A DRILL	0.264
B DRILL	0.378
M LGTH	0.740
N LGTH	1.430
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FACE SEAL

FS6802-06-10-NWO-FG

$32.63

Attribute: FS6802-06-10-NWO-FG (06MFS-10MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	7/8-14
A DRILL	0.264
B DRILL	0.484
M LGTH	0.760
N LGTH	1.760
C HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6802-08-06-NWO-FG

$20.83

Attribute: FS6802-08-06-NWO-FG (08MFS-06MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	9/16-18
A DRILL	0.378
B DRILL	0.264
M LGTH	0.80
N LGTH	1.27
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-08-08-NWO-FG

$16.93

Attribute: FS6802-08-08-NWO-FG (08MFS-08MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	3/4-16
A DRILL	0.378
B DRILL	0.378
M LGTH	0.800
N LGTH	1.430
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6802-08-10-NWO-FG

$25.45

Attribute: FS6802-08-10-NWO-FG (08MFS-10MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	7/8-14
A DRILL	0.378
B DRILL	0.484
M LGTH	0.82
N LGTH	1.76
C HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6802-08-12-NWO-FG

$58.67

Attribute: FS6802-08-12-NWO-FG (08MFS-12MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	1-1/16-12
A DRILL	0.378
B DRILL	0.609
M LGTH	0.87
N LGTH	1.97
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6802-08-16-NWO-FG

$104.75

Attribute: FS6802-08-16-NWO-FG (08MFS-16MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	1-5/16-12
A DRILL	0.378
B DRILL	0.811
M LGTH	1.03
N LGTH	2.11
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6802-10-08-NWO-FG

$24.57

Attribute: FS6802-10-08-NWO-FG (10MFS-08MAO...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	3/4-16
A DRILL	0.484
B DRILL	0.378
M LGTH	0.920
N LGTH	1.590
C HEX	0.938
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6802-10-10-NWO-FG

$51.69

Attribute: FS6802-10-10-NWO-FG (10MFS-10MAO...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	7/8-14
A DRILL	0.484
B DRILL	0.484
M LGTH	0.92
N LGTH	1.76
C HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6802-10-12-NWO-FG

$43.07

Attribute: FS6802-10-12-NWO-FG (10MFS-12MAO...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	1-1/16-12
A DRILL	0.484
B DRILL	0.609
M LGTH	0.960
N LGTH	1.970
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6802-12-08-NWO-FG

$47.01

Attribute: FS6802-12-08-NWO-FG (12MFS-08MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	3/4-16
A DRILL	0.609
B DRILL	0.390
M LGTH	1.020
N LGTH	1.640
C HEX	0.938
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6802-12-10-NWO-FG

$34.50

Attribute: FS6802-12-10-NWO-FG (12MFS-10MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	7/8-14
A DRILL	0.609
B DRILL	0.484
M LGTH	1.020
N LGTH	1.810
C HEX	1.062
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6802-12-12-NWO-FG

$35.49

Attribute: FS6802-12-12-NWO-FG (12MFS-12MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-1/16-12
A DRILL	0.609
B DRILL	0.609
M LGTH	1.02
N LGTH	1.97
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6802-12-12-NWO-SS

$838.78

Attribute: FS6802-12-12-NWO-SS (12MFS-12MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-1/16-12
A DRILL	0.609
B DRILL	0.609
M LGTH	1.02
N LGTH	1.97
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FACE SEAL

FS6802-12-16-NWO-FG

$40.31

Attribute: FS6802-12-16-NWO-FG (12MFS-16MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-5/16-12
A DRILL	0.609
B DRILL	0.811
M LGTH	1.160
N LGTH	2.060
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6802-16-12-NWO-FG

$49.18

Attribute: FS6802-16-12-NWO-FG (16MFS-12MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-1/16-12
A DRILL	0.811
B DRILL	0.609
M LGTH	1.180
N LGTH	2.030
C HEX	1.375
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6802-16-16-NWO-FG

$45.04

Attribute: FS6802-16-16-NWO-FG (16MFS-16MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/16-12
A DRILL	0.811
B DRILL	0.811
M LGTH	1.180
N LGTH	2.060
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6802-16-20-NWO-FG

$71.18

Attribute: FS6802-16-20-NWO-FG (16MFS-20MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/8-12
A DRILL	0.811
B DRILL	1.024
M LGTH	1.26
N LGTH	2.11
C HEX	1.875
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6802-20-16-NWO-FG

$157.87

Attribute: FS6802-20-16-NWO-FG (20MFS-16MAO...)

Stock Status: True

TUBE O.D.	1 1/4
A THREAD	1-11/16-12
B THREAD	1-5/16-12
A DRILL	1.024
B DRILL	0.811
M LGTH	1.260
N LGTH	2.110
C HEX	1.625
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6802-20-20-NWO-FG

$70.63

Attribute: FS6802-20-20-NWO-FG (20MFS-20MAO...)

Stock Status: True

TUBE O.D.	1 1/4
A THREAD	1-11/16-12
B THREAD	1-5/8-12
A DRILL	1.024
B DRILL	1.024
M LGTH	1.260
N LGTH	2.110
C HEX	1.875
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6802-24-24-NWO-FG

$191.87

Attribute: FS6802-24-24-NWO-FG (24MFS-24MAO...)

Stock Status: True

TUBE O.D.	1 1/2
A THREAD	2-12
B THREAD	1-7/8-12
A DRILL	1.260
B DRILL	1.260
M LGTH	1.45
N LGTH	2.11
C HEX	2.125
JJ FLATS	1.875
MATERIAL	STEEL FORGED

Connections	ORB, Face Seal
Shape	Elbow

ID	10157194
Category	O-Ring Face Seal Fittings
