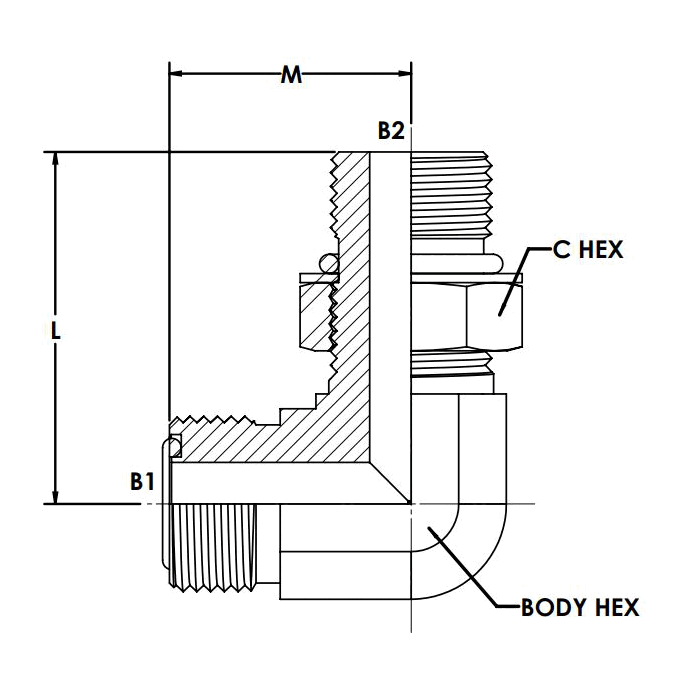

FS6801-NWO-FG

FS6801-04-04-NWO-FG

$10.19

Attribute: FS6801-04-04-NWO-FG (04MFS-04MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	7/16-20
A DRILL	0.172
B DRILL	0.172
M LGTH	0.85
N LGTH	1.29
C HEX	0.625
JJ FLATS	0.562
MATERIAL	STEEL FORGED

FS6801-04-05-NWO-FG

$29.49

Attribute: FS6801-04-05-NWO-FG (04MFS-05MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	1/2-20
A DRILL	0.172
B DRILL	0.234
M LGTH	0.85
N LGTH	1.29
C HEX	0.687
JJ FLATS	0.562
MATERIAL	STEEL FORGED

FS6801-04-06-NWO-FG

$13.33

Attribute: FS6801-04-06-NWO-FG (04MFS-06MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	9/16-18
A DRILL	0.172
B DRILL	0.264
M LGTH	0.92
N LGTH	1.45
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-04-08-NWO-FG

$26.34

Attribute: FS6801-04-08-NWO-FG (04MFS-08MAO...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	3/4-16
A DRILL	0.172
B DRILL	0.378
M LGTH	0.970
N LGTH	1.600
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-06-04-NWO-FG

$13.43

Attribute: FS6801-06-04-NWO-FG (06MFS-04MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	7/16-20
A DRILL	0.264
B DRILL	0.172
M LGTH	0.980
N LGTH	1.370
C HEX	0.625
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-06-05-NWO-FG

$35.29

Attribute: FS6801-06-05-NWO-FG (06MFS-05MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	1/2-20
A DRILL	0.264
B DRILL	0.236
M LGTH	0.98
N LGTH	1.45
C HEX	0.687
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-06-06-NWO-FG

$14.03

Attribute: FS6801-06-06-NWO-FG (06MFS-06MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	9/16-18
A DRILL	0.264
B DRILL	0.264
M LGTH	0.980
N LGTH	1.450
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-06-06-NWO-SS

$176.22

Attribute: FS6801-06-06-NWO-SS (06MFS-06MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	9/16-18
A DRILL	0.264
B DRILL	0.264
M LGTH	0.980
N LGTH	1.450
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STAINLESS STEEL

FS6801-06-08-NWO-FG

$17.17

Attribute: FS6801-06-08-NWO-FG (06MFS-08MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	3/4-16
A DRILL	0.264
B DRILL	0.378
M LGTH	1.04
N LGTH	1.60
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-06-08-NWO-SS

$295.54

Attribute: FS6801-06-08-NWO-SS (06MFS-08MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	3/4-16
A DRILL	0.264
B DRILL	0.378
M LGTH	1.04
N LGTH	1.60
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FACE SEAL

FS6801-06-10-NWO-FG

$20.97

Attribute: FS6801-06-10-NWO-FG (06MFS-10MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	7/8-14
A DRILL	0.264
B DRILL	0.484
M LGTH	1.150
N LGTH	1.970
C HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6801-06-12-NWO-FG

$35.73

Attribute: FS6801-06-12-NWO-FG (06MFS-12MAO...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	1-1/16-12
A DRILL	0.264
B DRILL	0.609
M LGTH	1.250
N LGTH	2.170
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6801-08-04-NWO-FG

$28.99

Attribute: FS6801-08-04-NWO-FG (08MFS-04MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	7/16-20
A DRILL	0.378
B DRILL	0.172
M LGTH	1.100
N LGTH	1.360
C HEX	0.625
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-08-06-NWO-FG

$12.85

Attribute: FS6801-08-06-NWO-FG (08MFS-06MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	9/16-18
A DRILL	0.378
B DRILL	0.264
M LGTH	1.10
N LGTH	1.44
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-08-06-NWO-SS

$262.73

Attribute: FS6801-08-06-NWO-SS (08MFS-06MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	9/16-18
A DRILL	0.378
B DRILL	0.295
M LGTH	1.10
N LGTH	1.44
C HEX	0.750
JJ FLATS	0.750
MATERIAL	STAINLESS STEEL

FS6801-08-08-NWO-FG

$16.00

Attribute: FS6801-08-08-NWO-FG (08MFS-08MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	3/4-16
A DRILL	0.378
B DRILL	0.378
M LGTH	1.10
N LGTH	1.60
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS6801-08-08-NWO-SS

$472.55

Attribute: FS6801-08-08-NWO-SS (08MFS-08MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	3/4-16
A DRILL	0.378
B DRILL	0.378
M LGTH	1.10
N LGTH	1.60
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STAINLESS STEEL

FS6801-08-10-NWO-FG

$23.63

Attribute: FS6801-08-10-NWO-FG (08MFS-10MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	7/8-14
A DRILL	0.378
B DRILL	0.484
M LGTH	1.21
N LGTH	1.97
C HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6801-08-12-NWO-FG

$32.83

Attribute: FS6801-08-12-NWO-FG (08MFS-12MAO...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	1-1/16-12
A DRILL	0.378
B DRILL	0.609
M LGTH	1.320
N LGTH	2.170
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6801-10-08-NWO-FG

$20.93

Attribute: FS6801-10-08-NWO-FG (10MFS-08MAO...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	3/4-16
A DRILL	0.484
B DRILL	0.378
M LGTH	1.31
N LGTH	1.80
C HEX	0.938
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6801-10-10-NWO-FG

$21.41

Attribute: FS6801-10-10-NWO-FG (10MFS-10MAO...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	7/8-14
A DRILL	0.484
B DRILL	0.484
M LGTH	1.31
N LGTH	1.97
C HEX	1.062
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS6801-10-12-NWO-FG

$33.42

Attribute: FS6801-10-12-NWO-FG (10MFS-12MAO...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	1-1/16-12
A DRILL	0.484
B DRILL	0.609
M LGTH	1.410
N LGTH	2.170
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6801-12-08-NWO-FG

$38.44

Attribute: FS6801-12-08-NWO-FG (12MFS-08MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	3/4-16
A DRILL	0.609
B DRILL	0.378
M LGTH	1.470
N LGTH	1.840
C HEX	0.938
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6801-12-10-NWO-FG

$28.59

Attribute: FS6801-12-10-NWO-FG (12MFS-10MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	7/8-14
A DRILL	0.609
B DRILL	0.484
M LGTH	1.47
N LGTH	2.01
C HEX	1.062
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6801-12-10-NWO-FG-BB

$146.46

Attribute: FS6801-12-10-NWO-FG-BB (12MFS-10...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	7/8-14
A DRILL	0.609
B DRILL	0.484
M LGTH	1.47
N LGTH	2.01
C HEX	1.062
JJ FLATS	1.188
MATERIAL	COATED STEEL

FS6801-12-12-NWO-FG

$30.76

Attribute: FS6801-12-12-NWO-FG (12MFS-12MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-1/16-12
A DRILL	0.609
B DRILL	0.609
M LGTH	1.47
N LGTH	2.17
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS6801-12-12-NWO-SS

$537.08

Attribute: FS6801-12-12-NWO-SS (12MFS-12MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-1/16-12
A DRILL	0.609
B DRILL	0.609
M LGTH	1.47
N LGTH	2.17
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FACE SEAL

FS6801-12-16-NWO-FG

$44.21

Attribute: FS6801-12-16-NWO-FG (12MFS-16MAO...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-5/16-12
A DRILL	0.609
B DRILL	0.811
M LGTH	1.62
N LGTH	2.35
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6801-16-12-NWO-FG

$53.85

Attribute: FS6801-16-12-NWO-FG (16MFS-12MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-1/16-12
A DRILL	0.811
B DRILL	0.609
M LGTH	1.640
N LGTH	2.320
C HEX	1.375
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6801-16-16-NWO-FG

$54.10

Attribute: FS6801-16-16-NWO-FG (16MFS-16MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/16-12
A DRILL	0.811
B DRILL	0.811
M LGTH	1.64
N LGTH	2.35
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS6801-16-16-NWO-SS

$550.62

Attribute: FS6801-16-16-NWO-SS (16MFS-16MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/16-12
A DRILL	0.811
B DRILL	0.811
M LGTH	1.64
N LGTH	2.35
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STAINLESS STEEL

FS6801-16-20-NWO-FG

$64.58

Attribute: FS6801-16-20-NWO-FG (16MFS-20MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/8-12
A DRILL	0.811
B DRILL	1.024
M LGTH	1.760
N LGTH	2.450
C HEX	1.875
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6801-16-24-NWO-FG

$166.38

Attribute: FS6801-16-24-NWO-FG (16MFS-24MAO...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-7/8-12
A DRILL	0.811
B DRILL	1.260
M LGTH	1.920
N LGTH	2.590
C HEX	2.125
JJ FLATS	1.875
MATERIAL	STEEL FORGED

FS6801-20-12-NWO-FG

$105.09

Attribute: FS6801-20-12-NWO-FG (20MFS-12MAO...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-1/16-12
A DRILL	1.024
B DRILL	0.609
M LGTH	1.760
N LGTH	2.420
C HEX	1.375
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6801-20-16-NWO-FG

$72.76

Attribute: FS6801-20-16-NWO-FG (20MFS-16MAO...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-5/16-12
A DRILL	1.024
B DRILL	0.811
M LGTH	1.76
N LGTH	2.45
C HEX	1.625
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6801-20-20-NWO-FG

$81.41

Attribute: FS6801-20-20-NWO-FG (20MFS-20MAO...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-5/8-12
A DRILL	1.024
B DRILL	1.024
M LGTH	1.760
N LGTH	2.450
C HEX	1.875
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS6801-20-20-NWO-SS

$852.12

Attribute: FS6801-20-20-NWO-SS (20MFS-20MAO...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-5/8-12
A DRILL	1.024
B DRILL	1.024
M LGTH	1.76
N LGTH	2.45
C HEX	1.875
JJ FLATS	1.625
MATERIAL	STAINLESS STEEL

FS6801-20-24-NWO-FG

$206.10

Attribute: FS6801-20-24-NWO-FG (20MFS-24MAO...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-7/8-12
A DRILL	1.024
B DRILL	1.260
M LGTH	1.92
N LGTH	2.59
C HEX	2.125
JJ FLATS	1.875
MATERIAL	STEEL FORGED

FS6801-24-20-NWO-FG

$274.92

Attribute: FS6801-24-20-NWO-FG (24MFS-20MAO...)

Stock Status: True

TUBE O.D.	1-1/2
A THREAD	2-12
B THREAD	1-5/8-12
A DRILL	1.260
B DRILL	1.024
M LGTH	1.920
N LGTH	2.590
C HEX	1.875
JJ FLATS	1.875
MATERIAL	STEEL FORGED

FS6801-24-24-NWO-FG

$107.95

Attribute: FS6801-24-24-NWO-FG (24MFS-24MAO...)

Stock Status: True

TUBE O.D.	1-1/2
A THREAD	2-12
B THREAD	1-7/8-12
A DRILL	1.260
B DRILL	1.260
M LGTH	1.920
N LGTH	2.590
C HEX	2.125
JJ FLATS	1.875
MATERIAL	STEEL FORGED

Connections	ORB, Face Seal
Shape	Elbow

ID	10157151
Category	O-Ring Face Seal Fittings

Description

Description

Variations (40)

FS6801-04-04-NWO-FG

FS6801-04-05-NWO-FG

FS6801-04-06-NWO-FG

FS6801-04-08-NWO-FG

FS6801-06-04-NWO-FG

FS6801-06-05-NWO-FG

FS6801-06-06-NWO-FG

FS6801-06-06-NWO-SS

FS6801-06-08-NWO-FG

FS6801-06-08-NWO-SS

FS6801-06-10-NWO-FG

FS6801-06-12-NWO-FG

FS6801-08-04-NWO-FG

FS6801-08-06-NWO-FG

FS6801-08-06-NWO-SS

FS6801-08-08-NWO-FG

FS6801-08-08-NWO-SS

FS6801-08-10-NWO-FG

FS6801-08-12-NWO-FG

FS6801-10-08-NWO-FG

FS6801-10-10-NWO-FG

FS6801-10-12-NWO-FG

FS6801-12-08-NWO-FG

FS6801-12-10-NWO-FG

FS6801-12-10-NWO-FG-BB

FS6801-12-12-NWO-FG

FS6801-12-12-NWO-SS

FS6801-12-16-NWO-FG

FS6801-16-12-NWO-FG

FS6801-16-16-NWO-FG

FS6801-16-16-NWO-SS

FS6801-16-20-NWO-FG

FS6801-16-24-NWO-FG

FS6801-20-12-NWO-FG

FS6801-20-16-NWO-FG

FS6801-20-20-NWO-FG

FS6801-20-20-NWO-SS

FS6801-20-24-NWO-FG

FS6801-24-20-NWO-FG

FS6801-24-24-NWO-FG

General Attributes

PDF Documents
