O-Ring Face Seal Fittings

FS6801-L-NWO-FG

Scraped 2026-02-15 08:27:16

Description

Description

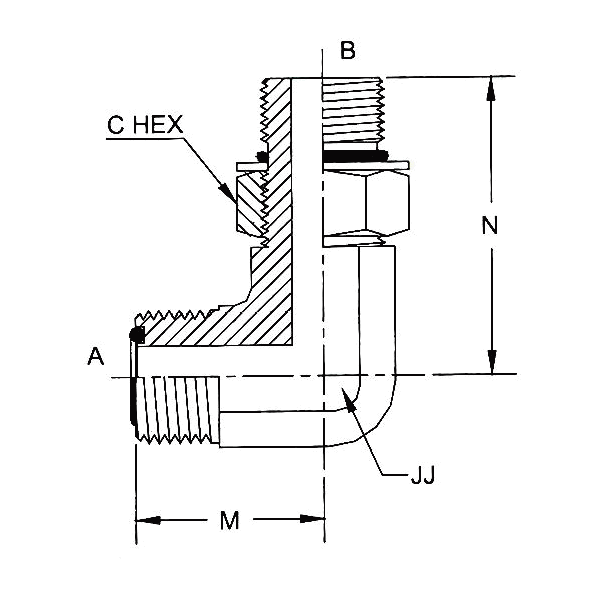

MFS-MORB 90 Elbow Long

Variations (10)

FS6801-L-04-04-NWO-FG

$19.14

Attribute: FS6801-L-04-04-NWO-FG (04MFS-04M...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD7/16-20
A DRILL0.172
B DRILL0.172
M LGTH0.850
N LGTH2.230
C HEX0.625
JJ FLATS0.562
MATERIALSTEEL FORGED

FS6801-L-06-06-NWO-FG

$20.93

Attribute: FS6801-L-06-06-NWO-FG (06MFS-06M...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD9/16-18
A DRILL0.264
B DRILL0.264
M LGTH0.98
N LGTH2.61
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6801-L-06-06-NWO-SS

$237.55

Attribute: FS6801-L-06-06-NWO-SS (06MFS-06M...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD9/16-18
A DRILL0.264
B DRILL0.264
M LGTH0.98
N LGTH2.61
C HEX0.750
JJ FLATS0.750
MATERIALSTEEL FACE SEAL

FS6801-L-08-08-NWO-FG

$25.01

Attribute: FS6801-L-08-08-NWO-FG (08MFS-08M...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD3/4-16
A DRILL0.378
B DRILL0.378
M LGTH1.10
N LGTH2.95
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6801-L-08-12-NWO-FG

$49.76

Attribute: FS6801-L-08-12-NWO-FG (08MFS-12M...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD1-1/16-12
A DRILL0.379
B DRILL0.609
M LGTH1.320
N LGTH3.970
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL

FS6801-L-10-10-NWO-FG

$51.43

Attribute: FS6801-L-10-10-NWO-FG (10MFS-10M...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD7/8-14
A DRILL0.484
B DRILL0.484
M LGTH1.31
N LGTH3.51
C HEX1.062
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6801-L-10-12-NWO-FG

$21.64

Attribute: FS6801-L-10-12-NWO-FG (10MFS-12M...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD1-1/16-12
A DRILL0.484
B DRILL0.609
M LGTH1.402
N LGTH3.980
C HEX1.375
JJ FLATS1.1875
MATERIALSTEEL FORGED

FS6801-L-12-12-NWO-FG

$47.01

Attribute: FS6801-L-12-12-NWO-FG (12MFS-12M...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD1-1/16-12
A DRILL0.609
B DRILL0.609
M LGTH1.47
N LGTH4.00
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6801-L-16-16-NWO-FG

$93.47

Attribute: FS6801-L-16-16-NWO-FG (16MFS-16M...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD1-5/16-12
A DRILL0.811
B DRILL0.811
M LGTH1.64
N LGTH4.51
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6801-L-20-20-NWO-FG

$394.73

Attribute: FS6801-L-20-20-NWO-FG (20MFS-20M...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-11/16-12
B THREAD1-5/8-12
A DRILL1.024
B DRILL1.024
M LGTH1.760
N LGTH4.980
C HEX1.875
JJ FLATS1.625
MATERIALSTEEL FORGED

General Attributes

Connections ORB, Face Seal
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
