O-Ring Face Seal Fittings

FS6602-FG

Scraped 2026-02-15 08:27:16

Description

Description

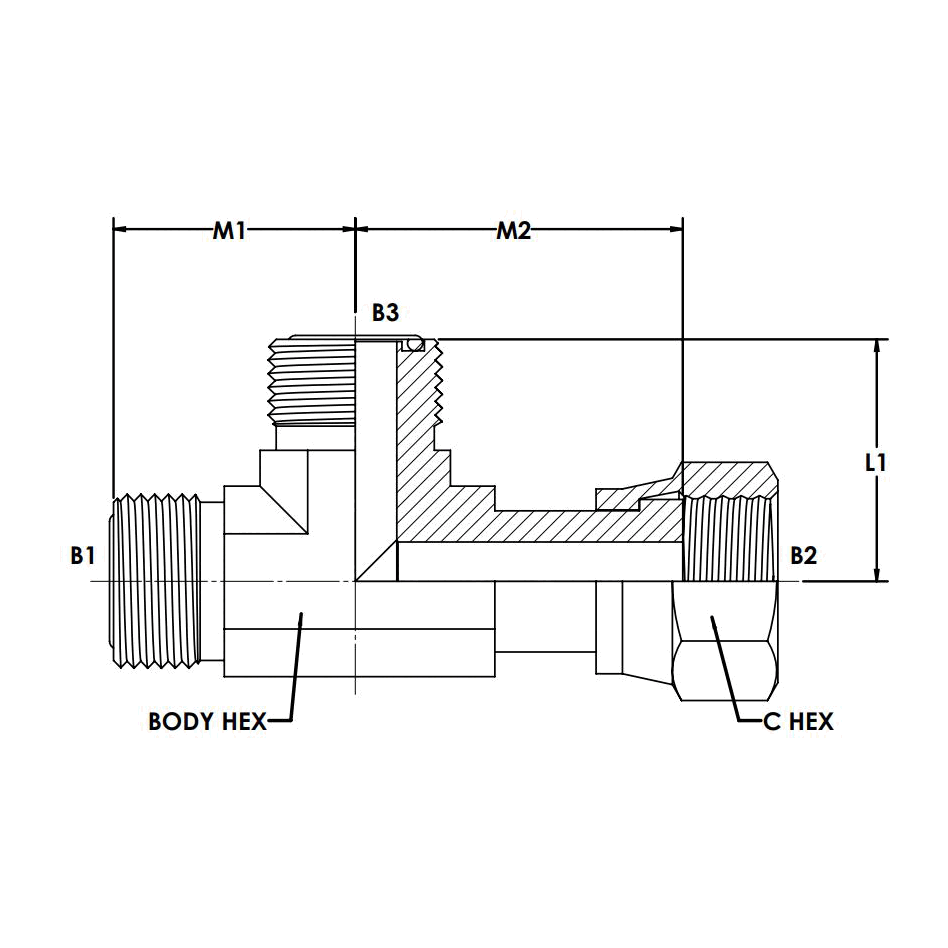

MFS-FFSS-MFS Run Tee

Variations (12)

FS6602-04-04-04-FG

$18.02

Attribute: FS6602-04-04-04-FG (04MFS-04FFSS...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
B THREAD9/16-18
A2 THREAD9/16-18
A1 DRILL0.172
B DRILL0.165
A2 DRILL0.172
M1 LGTH0.85
AAA LGTH1.04
M2 LGTH0.85
C HEX0.687
JJ FLATS0.562
MATERIALSTEEL FORGED

FS6602-06-06-04-FG

$32.25

Attribute: FS6602-06-06-04-FG (06MFS-06FFSS...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
B THREAD11/16-16
A2 THREAD9/16-18
A1 DRILL0.264
B DRILL0.264
A2 DRILL0.172
M1 LGTH0.98
AAA LGTH1.15
M2 LGTH0.92
C HEX0.812
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6602-06-06-06-FG

$26.34

Attribute: FS6602-06-06-06-FG (06MFS-06FFSS...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
B THREAD11/16-16
A2 THREAD11/16-16
A1 DRILL0.264
B DRILL0.264
A2 DRILL0.264
M1 LGTH0.98
AAA LGTH1.15
M2 LGTH0.98
C HEX0.812
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6602-06-08-06-FG

$66.21

Attribute: FS6602-06-08-06-FG (06MFS-08FFSS...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD11/16-16
B THREAD13/16-16
A2 THREAD11/16-16
A1 DRILL0.264
B DRILL0.358
A2 DRILL0.264
M1 LGTH1.04
AAA LGTH1.49
M2 LGTH1.04
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6602-06-08-08-FG

$61.73

Attribute: FS6602-06-08-08-FG (06MFS-08FFSS...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD11/16-16
B THREAD13/16-16
A2 THREAD13/16-16
A1 DRILL0.264
B DRILL0.264
A2 DRILL0.378
M1 LGTH1.040
AAA LGTH1.490
M2 LGTH1.100
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6602-08-08-06-FG

$42.38

Attribute: FS6602-08-08-06-FG (08MFS-08FFSS...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD13/16-16
A2 THREAD11/16-16
A1 DRILL0.378
B DRILL0.358
A2 DRILL0.264
M1 LGTH1.10
AAA LGTH1.49
M2 LGTH1.04
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6602-08-08-08-FG

$30.12

Attribute: FS6602-08-08-08-FG (08MFS-08FFSS...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
B THREAD13/16-16
A2 THREAD13/16-16
A1 DRILL0.378
B DRILL0.358
A2 DRILL0.378
M1 LGTH1.10
AAA LGTH1.49
M2 LGTH1.10
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6602-10-10-10-FG

$43.12

Attribute: FS6602-10-10-10-FG (10MFS-10FFSS...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
B THREAD1-14
A2 THREAD1/14
A1 DRILL0.453
B DRILL0.453
A2 DRILL0.484
M1 LGTH1.31
AAA LGTH1.62
M2 LGTH1.31
C HEX1.125
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6602-12-12-12-FG

$66.99

Attribute: FS6602-12-12-12-FG (12MFS-12FFSS...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
B THREAD1-3/16-12
A2 THREAD1-3/16-12
A1 DRILL0.609
B DRILL0.547
A2 DRILL0.609
M1 LGTH1.47
AAA LGTH1.82
M2 LGTH1.47
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6602-16-16-16-FG

$84.71

Attribute: FS6602-16-16-16-FG (16MFS-16FFSS...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
B THREAD1-7/16-12
A2 THREAD1-7/16-12
A1 DRILL0.811
B DRILL0.783
A2 DRILL0.811
M1 LGTH1.64
AAA LGTH2.10
M2 LGTH1.64
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6602-20-20-20-FG

$127.05

Attribute: FS6602-20-20-20-FG (20MFS-20FFSS...)

Stock Status: True

TUBE O.D.1 1/4
A1 THREAD1-11/16-12
B THREAD1-11/16-12
A2 THREAD1-11/16-12
A1 DRILL1.024
B DRILL1.024
A2 DRILL1.024
M1 LGTH1.76
AAA LGTH2.29
M2 LGTH1.76
C HEX1.875
JJ FLATS1.625
MATERIALSTEEL FORGED

FS6602-24-24-24-FG

$251.34

Attribute: FS6602-24-24-24-FG (24MFS-24FFSS...)

Stock Status: True

TUBE O.D.1 1/2
A1 THREAD2-12
B THREAD2-12
A2 THREAD2-12
A1 DRILL1.260
B DRILL1.260
A2 DRILL1.260
M1 LGTH1.92
AAA LGTH2.41
M2 LGTH1.92
C HEX2.250
JJ FLATS1.875
MATERIALSTEEL FORGED

General Attributes

Connections Face Seal
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
