O-Ring Face Seal Fittings

FS6600-FG

Scraped 2026-02-15 08:27:16

Description

Description

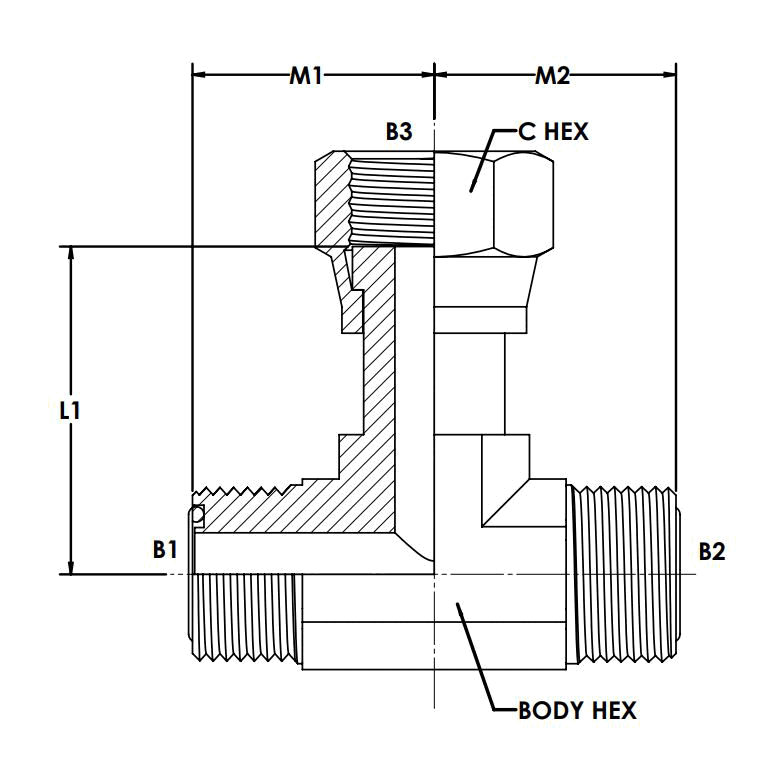

MFS-MFS-FFSS Branch Tee

Variations (11)

FS6600-04-04-04-FG

$19.99

Attribute: FS6600-04-04-04-FG (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.165
M1 LGTH0.85
M2 LGTH0.85
AAA LGTH1.04
C HEX0.687
JJ FLATS0.562
MATERIALSTEEL FORGED

FS6600-04-04-04-SS

$146.39

Attribute: FS6600-04-04-04-SS (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.165
M1 LGTH0.85
M2 LGTH0.85
AAA LGTH1.04
C HEX0.687
JJ FLATS0.562
MATERIALSTAINLESS STEEL

FS6600-04-04-06-FG

$19.14

Attribute: FS6600-04-04-06-FG (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD11/16-16
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.264
M1 LGTH0.92
M2 LGTH0.92
AAA LGTH1.15
C HEX0.812
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6600-06-06-06-FG

$24.27

Attribute: FS6600-06-06-06-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD11/16-16
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.264
M1 LGTH0.98
M2 LGTH0.98
AAA LGTH1.15
C HEX0.812
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6600-06-06-06-SS

$273.10

Attribute: FS6600-06-06-06-SS (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD11/16-16
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.264
M1 LGTH0.98
M2 LGTH0.98
AAA LGTH1.15
C HEX0.812
JJ FLATS0.750
MATERIALSTAINLESS STEEL

FS6600-08-08-08-FG

$35.24

Attribute: FS6600-08-08-08-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
B THREAD13/16-16
A1 DRILL0.378
A2 DRILL0.378
B DRILL0.358
M1 LGTH1.10
M2 LGTH1.10
AAA LGTH1.49
C HEX0.938
JJ FLATS0.750
MATERIALSTEEL FORGED

FS6600-10-10-10-FG

$42.08

Attribute: FS6600-10-10-10-FG (10MFS-10MFS-...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
A2 THREAD1/14
B THREAD1-14
A1 DRILL0.484
A2 DRILL0.484
B DRILL0.453
M1 LGTH1.31
M2 LGTH1.31
AAA LGTH1.62
C HEX1.125
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6600-12-12-12-FG

$69.50

Attribute: FS6600-12-12-12-FG (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
B THREAD1-3/16-12
A1 DRILL0.609
A2 DRILL0.609
B DRILL0.547
M1 LGTH1.47
M2 LGTH1.47
AAA LGTH1.82
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6600-16-16-16-FG

$91.32

Attribute: FS6600-16-16-16-FG (16MFS-16MFS-...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
B THREAD1-7/16-12
A1 DRILL0.811
A2 DRILL0.811
B DRILL0.783
M1 LGTH1.64
M2 LGTH1.64
AAA LGTH2.10
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6600-20-20-20-FG

$159.84

Attribute: FS6600-20-20-20-FG (20MFS-20MFS-...)

Stock Status: True

TUBE O.D.1 1/4
A1 THREAD1-11/16-12
A2 THREAD1-11/16-12
B THREAD1-11/16-12
A1 DRILL1.024
A2 DRILL1.024
B DRILL1.024
M1 LGTH1.76
M2 LGTH1.76
AAA LGTH2.29
C HEX1.875
JJ FLATS1.625
MATERIALSTEEL FORGED

FS6600-24-24-24-FG

$482.59

Attribute: FS6600-24-24-24-FG (24MFS-24MFS-...)

Stock Status: True

TUBE O.D.1-1/2
A1 THREAD2-12
A2 THREAD2-12
B THREAD2-12
A1 DRILL1.260
A2 DRILL1.260
B DRILL1.260
M1 LGTH1.920
M2 LGTH1.920
AAA LGTH2.410
C HEX2.250
JJ FLATS1.875
MATERIALSTEEL FORGED

General Attributes

Connections Face Seal
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
