O-Ring Face Seal Fittings

FS6505

Scraped 2026-02-15 08:27:16

Description

Description

MP-FFSS Straight

Variations (6)

FS6505-04-04

$16.05

Attribute: FS6505-04-04 (04MP-04FFSS Straig...)

Stock Status: True

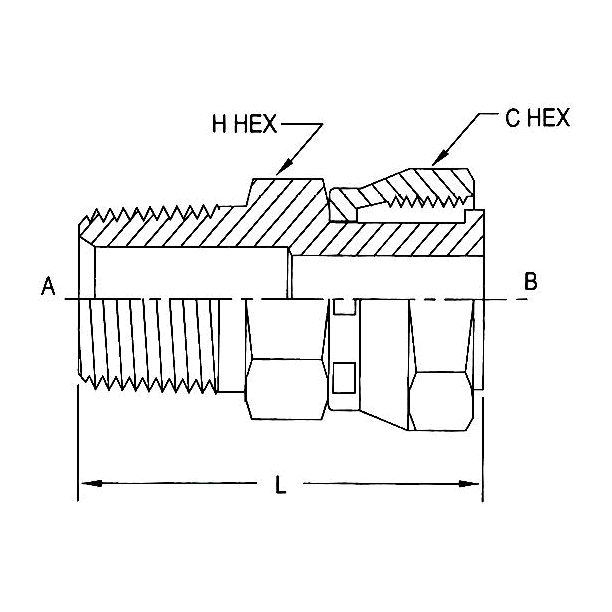

TUBE O.D.1/4
A THREAD1/4-18
B THREAD9/16-18
A HOLE0.281
B HOLE0.165
L LGTH1.520
C HEX0.688
H HEX0.625
MATERIALSTEEL

FS6505-04-06

$27.61

Attribute: FS6505-04-06 (04MP-06FFSS Straig...)

Stock Status: True

TUBE O.D.3/8
A THREAD1/4-18
B THREAD11/16-16
A HOLE0.281
B HOLE0.264
L LGTH1.650
C HEX0.812
H HEX0.750
MATERIALSTEEL FACE SEAL

FS6505-08-08

$24.12

Attribute: FS6505-08-08 (08MP-08FFSS Straig...)

Stock Status: True

TUBE O.D.1/2
A THREAD1/2-14
B THREAD13/16-16
A HOLE0.531
B HOLE0.358
L LGTH2.150
C HEX0.937
H HEX0.875
MATERIALSTEEL

FS6505-12-12

$49.18

Attribute: FS6505-12-12 (12MP-12FFSS Straig...)

Stock Status: True

TUBE O.D.3/4
A THREAD3/4-14
B THREAD1-3/16-12
A HOLE0.719
B HOLE0.547
L LGTH2.370
C HEX1.375
H HEX1.250
MATERIALSTEEL

FS6505-16-16

$83.78

Attribute: FS6505-16-16 (16MP-16FFSS Straig...)

Stock Status: True

TUBE O.D.1
A THREAD1-11-1/2
B THREAD1-7/16-12
A HOLE0.938
B HOLE0.783
L LGTH2.880
C HEX1.625
H HEX1.500
MATERIALSTEEL

FS6505-20-20

$151.80

Attribute: FS6505-20-20 (20MP-20FFSS Straig...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-1/4-11-1/2
B THREAD1-11/16-12
A HOLE1.250
B HOLE1.024
L LGTH2.900
C HEX1.875
H HEX1.750
MATERIALSTEEL

General Attributes

Connections NPT, Face Seal
Shape Straight

PDF Documents

Download CAD and Drawings Open PDF
