O-Ring Face Seal Fittings

FS6504

Scraped 2026-02-15 08:27:16

Description

FFSS-MJ Straight

Variations (17)

FS6504-04-04

$17.57

Attribute: FS6504-04-04 (04FFSS-04MJ Straig...)

Stock Status: True

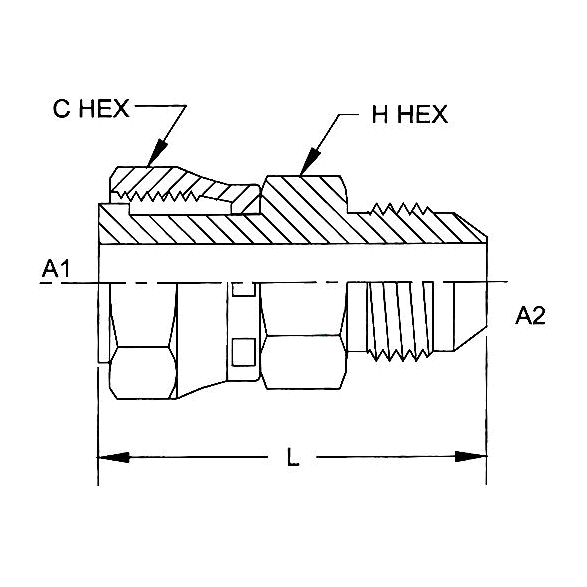

A1 TUBE O.D.	1/4
A2 TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	7/16-20
A1 DRILL	0.165
A2 DRILL	O.172
L LGTH	1.580
C HEX	0.687
H HEX	0.625
MATERIAL	STEEL FACE SEAL

FS6504-04-04-SS

$283.93

Attribute: FS6504-04-04-SS (04FFSS-04MJ Str...)

Stock Status: True

A1 TUBE O.D.	1/4
A2 TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	7/16-20
A1 DRILL	0.165
A2 DRILL	O.172
L LGTH	1.580
C HEX	0.687
H HEX	0.625
MATERIAL	STAINLESS STEEL

FS6504-04-12

$56.02

Attribute: FS6504-04-12 (04FFSS-12MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1/4
A2 TUBE O.D.	3/4
A1 THREAD	9/16-18
A2 THREAD	1-1/16-12
A1 DRILL	0.165
A2 DRILL	0.609
L LGTH	1.994
C HEX	0.687
H HEX	1.125
MATERIAL	STEEL FACE SEAL

FS6504-06-04

$12.85

Attribute: FS6504-06-04 (06FFSS-04MJ Straig...)

Stock Status: True

A1 TUBE O.D.	3/8
A2 TUBE O.D.	1/4
A1 THREAD	11/16-16
A2 THREAD	7/16-20
A1 DRILL	0.264
A2 DRILL	0.172
L LGTH	1.660
C HEX	0.812
H HEX	0.750
MATERIAL	STEEL FACE SEAL

FS6504-06-06

$13.63

Attribute: FS6504-06-06 (06FFSS-06MJ Straig...)

Stock Status: True

A1 TUBE O.D.	3/8
A2 TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	9/16-18
A1 DRILL	0.264
A2 DRILL	0.297
L LGTH	1.610
C HEX	0.812
H HEX	0.750
MATERIAL	STEEL FACE SEAL

FS6504-08-04

$17.47

Attribute: FS6504-08-04 (08FFSS-04MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1/2
A2 TUBE O.D.	1/4
A1 THREAD	13/16-16
A2 THREAD	7/16-20
A1 DRILL	0.358
A2 DRILL	0.172
L LGTH	1.940
C HEX	0.938
H HEX	0.875
MATERIAL	STEEL FACE SEAL

FS6504-08-08

$18.41

Attribute: FS6504-08-08 (08FFSS-08MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1/2
A2 TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	3/4-16
A1 DRILL	0.358
A2 DRILL	0.391
L LGTH	1.900
C HEX	0.938
H HEX	0.875
MATERIAL	STEEL FACE SEAL

FS6504-08-12

$44.25

Attribute: FS6504-08-12 (08FFSS-12MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1/2
A2 TUBE O.D.	3/4
A1 THREAD	13/16-16
A2 THREAD	1-1/16-12
A1 DRILL	0.358
A2 DRILL	0.609
L LGTH	2.194
C HEX	0.938
H HEX	1.125
MATERIAL	STEEL FACE SEAL

FS6504-10-04

$42.87

Attribute: FS6504-10-04 (10FFSS-04MJ Straig...)

Stock Status: True

A1 TUBE O.D.	5/8
A2 TUBE O.D.	1/4
A1 THREAD	1-14
A2 THREAD	7/16-20
A1 DRILL	0.453
A2 DRILL	0.172
L LGTH	2.040
C HEX	1.125
H HEX	1.062
MATERIAL	STEEL FACE SEAL

FS6504-10-10

$18.76

Attribute: FS6504-10-10 (10FFSS-10MJ Straig...)

Stock Status: True

A1 TUBE O.D.	5/8
A2 TUBE O.D.	5/8
A1 THREAD	1-14
A2 THREAD	7/8-14
A1 DRILL	0.453
A2 DRILL	0.484
L LGTH	2.248
C HEX	1.125
H HEX	1.062
MATERIAL	STEEL FACE SEAL

FS6504-10-12

$70.53

Attribute: FS6504-10-12 (10FFSS-12MJ Straig...)

Stock Status: True

A1 TUBE O.D.	5/8
A2 TUBE O.D.	3/4
A1 THREAD	1-14
A2 THREAD	1-1/16-12
A1 DRILL	0.453
A2 DRILL	0.609
L LGTH	2.354
C HEX	1.125
H HEX	1.125
MATERIAL	STEEL FACE SEAL

FS6504-12-04

$63.60

Attribute: FS6504-12-04 (12FFSS-04MJ Straig...)

Stock Status: True

A1 TUBE O.D.	3/4
A2 TUBE O.D.	1/4
A1 THREAD	1-3/16-12
A2 THREAD	7/16-20
A1 DRILL	0.547
A2 DRILL	0.172
L LGTH	2.170
C HEX	1.375
H HEX	1.250
MATERIAL	STEEL FACE SEAL

FS6504-12-12

$32.05

Attribute: FS6504-12-12 (12FFSS-12MJ Straig...)

Stock Status: True

A1 TUBE O.D.	3/4
A2 TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	1-1/16-12
A1 DRILL	0.547
A2 DRILL	0.609
L LGTH	2.500
C HEX	1.375
H HEX	1.250
MATERIAL	STEEL FACE SEAL

FS6504-16-04

$66.41

Attribute: FS6504-16-04 (16FFSS-04MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1
A2 TUBE O.D.	1/4
A1 THREAD	1-7/16-12
A2 THREAD	7/16-20
A1 DRILL	0.783
A2 DRILL	0.172
L LGTH	2.480
C HEX	1.625
H HEX	1.500
MATERIAL	STEEL FACE SEAL

FS6504-16-16

$40.17

Attribute: FS6504-16-16 (16FFSS-16MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1
A2 TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-5/16-12
A1 DRILL	0.783
A2 DRILL	0.783
L LGTH	2.650
C HEX	1.625
H HEX	1.500
MATERIAL	STEEL FACE SEAL

FS6504-20-20

$108.39

Attribute: FS6504-20-20 (20FFSS-20MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1-1/4
A2 TUBE O.D.	1-1/4
A1 THREAD	1-11/16-12
A2 THREAD	1-5/8-12
A1 DRILL	1.024
A2 DRILL	1.078
L LGTH	2.888
C HEX	1.875
H HEX	1.875
MATERIAL	STEEL FACE SEAL

FS6504-24-24

$183.06

Attribute: FS6504-24-24 (24FFSS-24MJ Straig...)

Stock Status: True

A1 TUBE O.D.	1-1/2
A2 TUBE O.D.	1-1/2
A1 THREAD	2-12
A2 THREAD	1-7/8-12
A1 DRILL	1.260
A2 DRILL	1.260
L LGTH	2.840
C HEX	2.250
H HEX	2.000
MATERIAL	STEEL

General Attributes

Connections	JIC, Face Seal
Shape	Straight
