O-Ring Face Seal Fittings

FS6503-FG

Scraped 2026-02-15 08:27:16

Description

Description

FP-FFSS 90 Elbow

Variations (1)

FS6503-06-06-FG

$0.00

Attribute: FS6503-06-06-FG (06FP-06FFSS 90 ...)

Stock Status: True

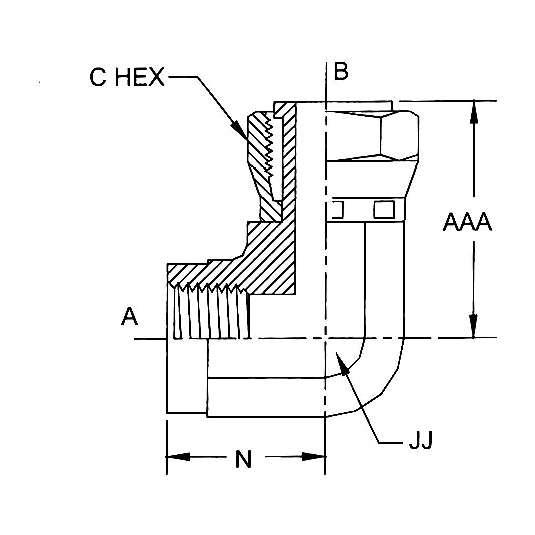

TUBE O.D.3/8
A THREAD3/8-18
B THREAD11/16-16
B DRILL0.264
N LGTH1.020
AAA LGTH1.320
C HEX0.812
JJ FLATS0.875
MATERIALSTEEL FORGED

General Attributes

Connections NPT, Face Seal
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
