O-Ring Face Seal Fittings

FS6502-FG

Scraped 2026-02-15 08:27:16

Description

Description

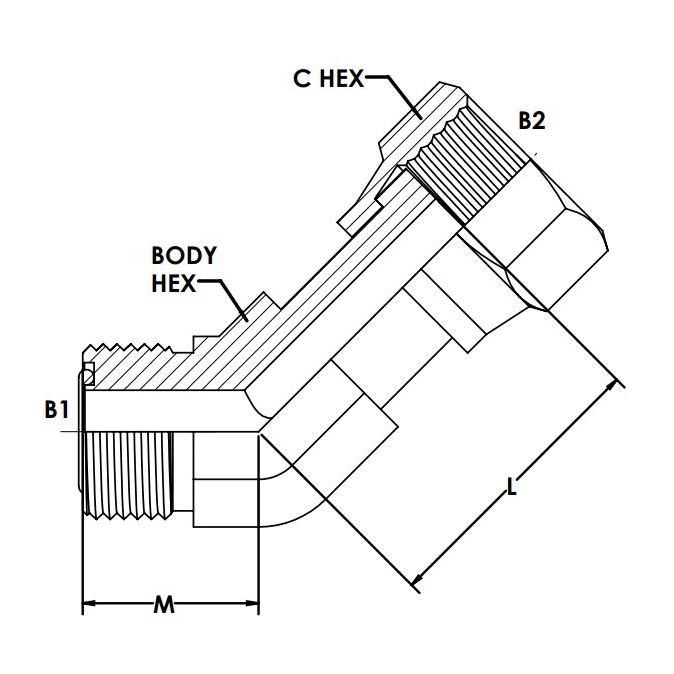

MFS-FFSS 45 Elbow

Variations (10)

FS6502-04-04-FG

$19.44

Attribute: FS6502-04-04-FG (04MFS-04FFSS 45...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD9/16-18
A DRILL0.172
B DRILL0.165
L1 LGTH0.63
L2 LGTH0.94
C HEX0.687
JJ FLATS0.562
MATERIALSTEEL FORGED

FS6502-06-06-FG

$22.40

Attribute: FS6502-06-06-FG (06MFS-06FFSS 45...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD11/16-16
A DRILL0.264
B DRILL0.264
L1 LGTH0.74
L2 LGTH1.06
C HEX0.812
JJ FLATS0.75
MATERIALSTEEL FORGED

FS6502-06-06-SS

$209.54

Attribute: FS6502-06-06-SS (06MFS-06FFSS 45...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD11/16-16
A DRILL0.264
B DRILL0.264
L1 LGTH0.74
L2 LGTH1.06
C HEX0.812
JJ FLATS0.75
MATERIALSTEEL FACE SEAL

FS6502-08-08-FG

$34.40

Attribute: FS6502-08-08-FG (08MFS-08FFSS 45...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD13/16-16
A DRILL0.378
B DRILL0.358
L1 LGTH0.80
L2 LGTH1.32
C HEX0.938
JJ FLATS0.75
MATERIALSTEEL FORGED

FS6502-08-08-SS

$129.26

Attribute: FS6502-08-08-SS (08MFS-08FFSS 45...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD13/16-16
A DRILL0.378
B DRILL0.358
L1 LGTH0.80
L2 LGTH1.32
C HEX0.938
JJ FLATS0.75
MATERIALSTEEL FACE SEAL

FS6502-10-10-FG

$32.43

Attribute: FS6502-10-10-FG (10MFS-10FFSS 45...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD1/14
A DRILL0.484
B DRILL0.453
L1 LGTH0.92
L2 LGTH1.44
C HEX1.125
JJ FLATS1.062
MATERIALSTEEL FORGED

FS6502-12-12-FG

$42.28

Attribute: FS6502-12-12-FG (12MFS-12FFSS 45...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD1-3/16-12
A DRILL0.609
B DRILL0.547
L1 LGTH1.02
L2 LGTH1.48
C HEX1.375
JJ FLATS1.188
MATERIALSTEEL FORGED

FS6502-16-16-FG

$87.62

Attribute: FS6502-16-16-FG (16MFS-16FFSS 45...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD1-7/16-12
A DRILL0.811
B DRILL0.783
L1 LGTH1.180
L2 LGTH1.520
C HEX1.625
JJ FLATS1.438
MATERIALSTEEL FORGED

FS6502-20-20-FG

$198.72

Attribute: FS6502-20-20-FG (20MFS-20FFSS 45...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-11/16-12
B THREAD1-11/16-12
A DRILL1.024
B DRILL1.024
L1 LGTH1.26
L2 LGTH1.72
C HEX1.875
JJ FLATS1.625
MATERIALSTEEL FORGED

FS6502-24-24-FG

$252.71

Attribute: FS6502-24-24-FG (24MFS-24FFSS 45...)

Stock Status: True

TUBE O.D.1-1/2
A THREAD2-12
B THREAD2-12
A DRILL1.260
B DRILL1.260
L1 LGTH1.450
L2 LGTH2.060
C HEX2.250
JJ FLATS1.875
MATERIALSTEEL

General Attributes

Connections Face Seal
Shape Elbow
