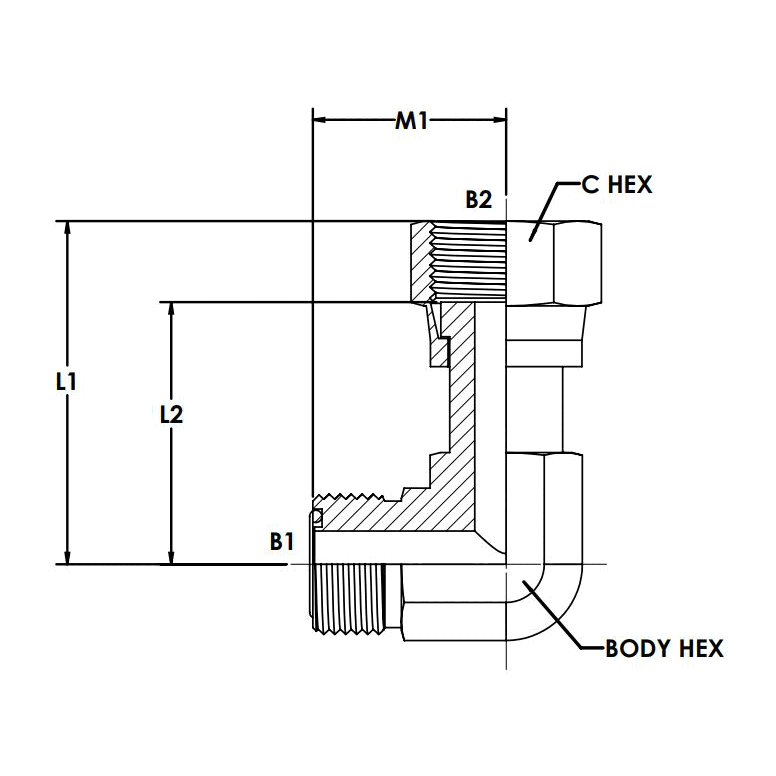

FS6500-FG

Attribute: FS6500-04-04-FG (04MFS-04FFSS 90...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	9/16-18
A DRILL	0.172
B DRILL	0.165
M LGTH	0.85
AAA LGTH	1.04
C HEX	0.687
JJ FLATS	0.562
MATERIAL	STEEL FORGED

Attribute: FS6500-04-04-SS (04MFS-04FFSS 90...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	9/16-18
A DRILL	0.172
B DRILL	0.165
M LGTH	0.85
AAA LGTH	1.04
C HEX	0.687
JJ FLATS	0.562
MATERIAL	STAINLESS STEEL

Attribute: FS6500-04-06-FG (04MFS-06FFSS 90...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	11/16-16
A DRILL	0.172
B DRILL	0.264
M LGTH	0.920
AAA LGTH	1.150
C HEX	0.812
JJ FLATS	0.750
MATERIAL	STEEL FORGED

Attribute: FS6500-06-06-FG (06MFS-06FFSS 90...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	11/16-16
A DRILL	0.264
B DRILL	0.264
M LGTH	0.98
AAA LGTH	1.15
C HEX	0.812
JJ FLATS	0.750
MATERIAL	STEEL FORGED

Attribute: FS6500-06-06-SS (06MFS-06FFSS 90...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	11/16-16
A DRILL	0.264
B DRILL	0.264
M LGTH	0.98
AAA LGTH	1.15
C HEX	0.812
JJ FLATS	0.750
MATERIAL	STAINLESS STEEL

Attribute: FS6500-08-06-FG (08MFS-06FFSS 90...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	11/16-16
A DRILL	0.378
B DRILL	0.264
M LGTH	1.10
AAA LGTH	1.33
C HEX	0.812
JJ FLATS	0.750
MATERIAL	STEEL FORGED

Attribute: FS6500-08-08-FG (08MFS-08FFSS 90...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	13/16-16
A DRILL	0.378
B DRILL	0.358
M LGTH	1.10
AAA LGTH	1.49
C HEX	0.938
JJ FLATS	0.750
MATERIAL	STEEL FORGED

Attribute: FS6500-10-10-FG (10MFS-10FFSS 90...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	1-14
A DRILL	0.484
B DRILL	0.453
M LGTH	1.31
AAA LGTH	1.62
C HEX	1.125
JJ FLATS	1.062
MATERIAL	STEEL FORGED

Attribute: FS6500-12-12-FG (12MFS-12FFSS 90...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1-3/16-12
B THREAD	1-3/16-12
A DRILL	0.609
B DRILL	0.547
M LGTH	1.47
AAA LGTH	1.82
C HEX	1.375
JJ FLATS	1.188
MATERIAL	STEEL FORGED

Attribute: FS6500-16-16-FG (16MFS-16FFSS 90...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-7/16-12
A DRILL	0.811
B DRILL	0.783
M LGTH	1.64
AAA LGTH	2.10
C HEX	1.625
JJ FLATS	1.438
MATERIAL	STEEL FORGED

Attribute: FS6500-20-20-FG (20MFS-20FFSS 90...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-11/16-12
A DRILL	1.024
B DRILL	1.024
M LGTH	1.76
AAA LGTH	2.29
C HEX	1.875
JJ FLATS	1.625
MATERIAL	STEEL FORGED

Attribute: FS6500-24-24-FG (24MFS-24FFSS 90...)

Stock Status: True

TUBE O.D.	1-1/2
A THREAD	2-12
B THREAD	2-12
A DRILL	1.260
B DRILL	1.260
M LGTH	1.920
AAA LGTH	2.410
C HEX	2.250
JJ FLATS	1.875
MATERIAL	STEEL FORGED
