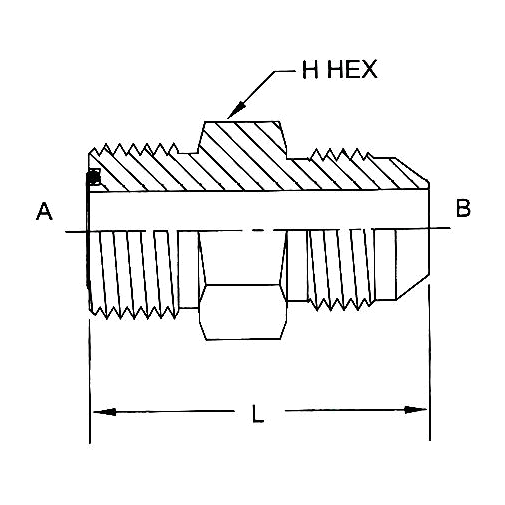

FS6403

Attribute: FS6403-04-04 (04MFS-04MJ Straigh...)

Stock Status: True

TUBE O.D.	1/4
A THREAD	9/16-18
B THREAD	7/16-20
A DRILL	0.172
B DRILL	0.172
L LGTH	1.250
H HEX	0.625
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-06-06 (06MFS-06MJ Straigh...)

Stock Status: True

TUBE O.D.	3/8
A THREAD	11/16-16
B THREAD	9/16-18
A DRILL	0.264
B DRILL	0.264
L LGTH	1.350
H HEX	0.750
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-08-08 (08MFS-08MJ Straigh...)

Stock Status: True

TUBE O.D.	1/2
A THREAD	13/16-16
B THREAD	3/4-16
A DRILL	0.378
B DRILL	0.378
L LGTH	1.540
H HEX	0.875
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-10-10 (10MFS-10MJ Straigh...)

Stock Status: True

TUBE O.D.	5/8
A THREAD	1-14
B THREAD	7/8-14
A DRILL	0.484
B DRILL	0.484
L LGTH	1.820
H HEX	1.062
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-12-12 (12MFS-12MJ Straigh...)

Stock Status: True

TUBE O.D.	3/4
A THREAD	1 3/16-12
B THREAD	1 1/16-12
A DRILL	0.609
B DRILL	0.609
L LGTH	2.050
H HEX	1.250
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-16-16 (16MFS-16MJ Straigh...)

Stock Status: True

TUBE O.D.	1
A THREAD	1-7/16-12
B THREAD	1-5/16-12
A DRILL	0.811
B DRILL	0.844
L LGTH	2.161
H HEX	1.500
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-20-20 (20MFS-20MJ Straigh...)

Stock Status: True

TUBE O.D.	1-1/4
A THREAD	1-11/16-12
B THREAD	1-5/8-12
A DRILL	1.024
B DRILL	1.024
L LGTH	2.290
H HEX	1.750
MATERIAL	STEEL FACE SEAL

Attribute: FS6403-24-24 (24MFS-24MJ Straigh...)

Stock Status: True

TUBE O.D.	1-1/2
A THREAD	2-12
B THREAD	1-7/8-12
A DRILL	1.260
B DRILL	32.00
L LGTH	2.48
H HEX	2.125
MATERIAL	STEEL FACE SEAL
