Attributes
| Part Number | 4003-42 |
|---|---|
| Is Series Page | 0 |
Description

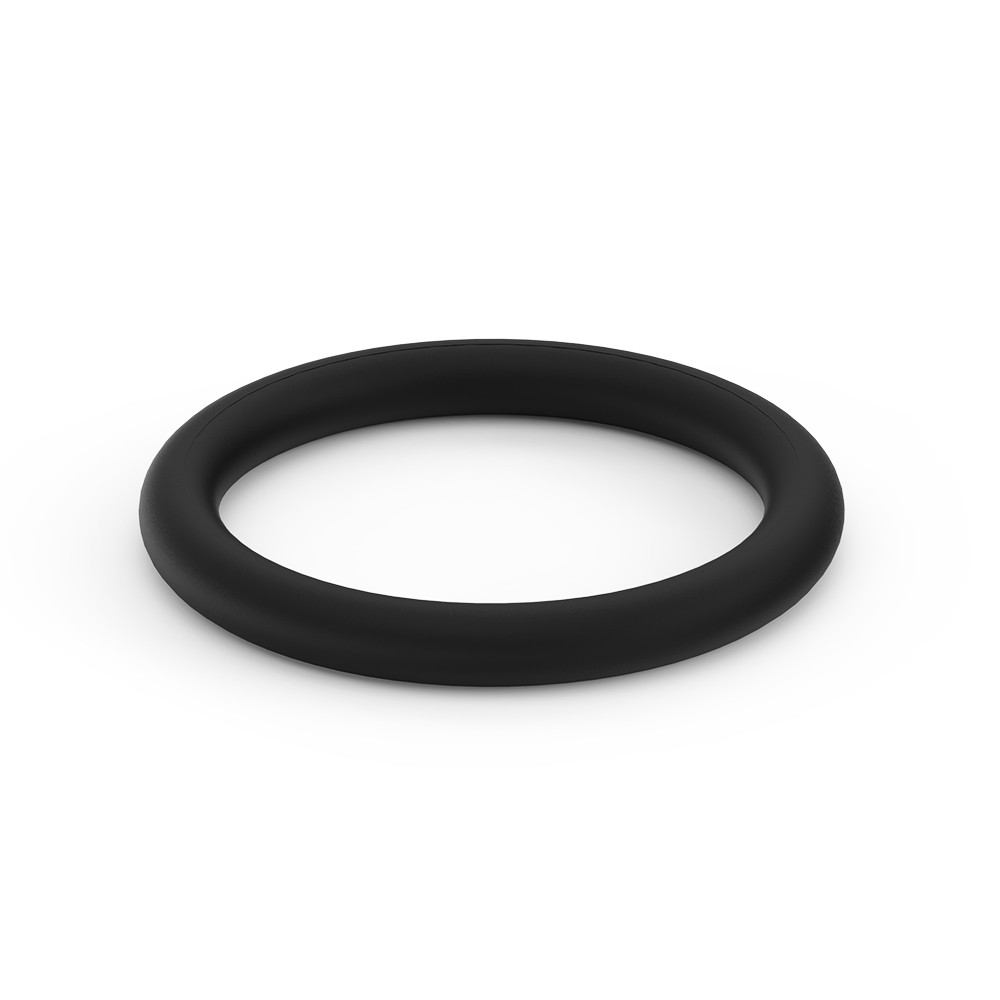

Nitrile, Metric O-Ring Seal for 42mm Metric (Type G/H) Port
Specifications
| Specifications | {"Nominal OD":"42mm","Exact OD":"43mm","Exact ID":"37.77mm","Exact Width":"2.62mm","Color":"Black","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)","Temperature":"-40°F to 250°F","Dash Size":"-M42","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, aliphatic hydrocarbons, water (below 150°F), natural gas, air","Not Recommended For":"Phosphate ester fluids, glycol-based brake fluids, strong acids, ozone, weathering, ketones, esters, chlorinated hydrocarbons"} |
| Cross References | {"Parker TFD Part Number":"2-128"} |
| Shape | O-Ring |
PDF Documents
No PDF documents.
