Description

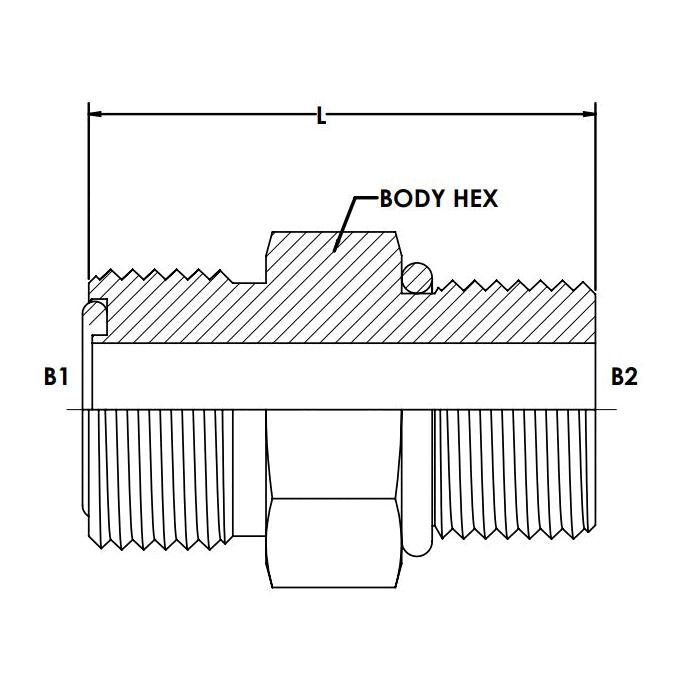

MFS-MORB Straight
Description
Variations (66)
FS6400-04-03-O
$19.34Attribute: FS6400-04-03-O (04MFS-03MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 3/8-24 |
| A DRILL | 0.172 |
| B DRILL | 0.125 |
| L LGTH | 1.170 |
| H HEX | 0.625 |
| MATERIAL | STEEL FACE SEAL |
FS6400-04-04-O
$4.18Attribute: FS6400-04-04-O (04MFS-04MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 7/16-20 |
| A DRILL | 0.172 |
| B DRILL | 0.172 |
| L LGTH | 1.133 |
| H HEX | 0.625 |
| MATERIAL | STEEL FACE SEAL |
FS6400-04-04-O-SS
$80.68Attribute: FS6400-04-04-O-SS (04MFS-04MORB ...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 7/16-20 |
| A DRILL | 0.172 |
| B DRILL | 0.172 |
| L LGTH | 1.133 |
| H HEX | 0.625 |
| MATERIAL | STAINLESS STEEL |
FS6400-04-05-O
$10.83Attribute: FS6400-04-05-O (04MFS-05MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 1/2-20 |
| A DRILL | 0.172 |
| B DRILL | 0.236 |
| L LGTH | 1.130 |
| H HEX | 0.625 |
| MATERIAL | STEEL FACE SEAL |
FS6400-04-06-O
$5.37Attribute: FS6400-04-06-O (04MFS-06MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 9/16-18 |
| A DRILL | 0.172 |
| B DRILL | 0.264 |
| L LGTH | 1.202 |
| H HEX | 0.750 |
| MATERIAL | STEEL FACE SEAL |
FS6400-04-06-O-SS
$76.00Attribute: FS6400-04-06-O-SS (04MFS-06MORB ...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 9/16-18 |
| A DRILL | 0.172 |
| B DRILL | 0.264 |
| L LGTH | 1.202 |
| H HEX | 0.750 |
| MATERIAL | STAINLESS STEEL |
FS6400-04-08-O
$9.75Attribute: FS6400-04-08-O (04MFS-08MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 3/4-16 |
| A DRILL | 0.172 |
| B DRILL | 0.378 |
| L LGTH | 1.321 |
| H HEX | 0.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-04-08-O-SS
$479.64Attribute: FS6400-04-08-O-SS (04MFS-08MORB ...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 3/4-16 |
| A DRILL | 0.172 |
| B DRILL | 0.378 |
| L LGTH | 1.321 |
| H HEX | 0.875 |
| MATERIAL | STAINLESS STEEL |
FS6400-04-10-O
$19.64Attribute: FS6400-04-10-O (04MFS-10MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 7/8-14 |
| A DRILL | 0.172 |
| B DRILL | 0.484 |
| L LGTH | 1.480 |
| H HEX | 1.000 |
| MATERIAL | STEEL FACE SEAL |
FS6400-04-12-O
$48.73Attribute: FS6400-04-12-O (04MFS-12MORB Str...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.172 |
| B DRILL | 0.609 |
| L LGTH | 1.638 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-06-03-O
$23.78Attribute: FS6400-06-03-O (06MFS-03MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 3/8-24 |
| A DRILL | 0.264 |
| B DRILL | 0.118 |
| L LGTH | 1.284 |
| H HEX | 0.750 |
| MATERIAL | STEEL |
FS6400-06-04-O
$6.11Attribute: FS6400-06-04-O (06MFS-04MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 7/16-20 |
| A DRILL | 0.264 |
| B DRILL | 0.172 |
| L LGTH | 1.343 |
| H HEX | 0.750 |
| MATERIAL | STEEL FACE SEAL |
FS6400-06-04-O-SS
$105.49Attribute: FS6400-06-04-O-SS (06MFS-04MORB ...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 7/16-20 |
| A DRILL | 0.264 |
| B DRILL | 0.172 |
| L LGTH | 1.343 |
| H HEX | 0.750 |
| MATERIAL | STAINLESS STEEL |
FS6400-06-05-O
$14.52Attribute: FS6400-06-05-O (06MFS-05MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 1/2-20 |
| A DRILL | 0.236 |
| B DRILL | 0.236 |
| L LGTH | 1.213 |
| H HEX | 0.750 |
| MATERIAL | STEEL FACE SEAL |
FS6400-06-06-O
$4.68Attribute: FS6400-06-06-O (06MFS-06MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 9/16-18 |
| A DRILL | 0.256 |
| B DRILL | 0.256 |
| L LGTH | 1.260 |
| H HEX | 0.750 |
| MATERIAL | STEEL FACE SEAL |
FS6400-06-06-O-SS
$82.55Attribute: FS6400-06-06-O-SS (06MFS-06MORB ...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 9/16-18 |
| A DRILL | 0.264 |
| B DRILL | 0.264 |
| L LGTH | 1.252 |
| H HEX | 0.750 |
| MATERIAL | STAINLESS STEEL |
FS6400-06-08-O
$5.85Attribute: FS6400-06-08-O (06MFS-08MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 3/4-16 |
| A DRILL | 0.264 |
| B DRILL | 0.264 |
| L LGTH | 1.381 |
| H HEX | 0.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-06-08-O-SS
$93.77Attribute: FS6400-06-08-O-SS (06MFS-08MORB ...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 3/4-16 |
| A DRILL | 0.264 |
| B DRILL | 0.264 |
| L LGTH | 1.381 |
| H HEX | 0.875 |
| MATERIAL | STAINLESS STEEL |
FS6400-06-10-O
$11.46Attribute: FS6400-06-10-O (06MFS-10MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 7/8-14 |
| A DRILL | 0.264 |
| B DRILL | 0.484 |
| L LGTH | 1.530 |
| H HEX | 1.062 |
| MATERIAL | STEEL FACE SEAL |
FS6400-06-12-O
$38.44Attribute: FS6400-06-12-O (06MFS-12MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.264 |
| B DRILL | 0.609 |
| L LGTH | 1.688 |
| H HEX | 1.250 |
| MATERIAL | STEEL |
FS6400-06-16-O
$121.44Attribute: FS6400-06-16-O (06MFS-16MORB Str...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.264 |
| B DRILL | 0.811 |
| L LGTH | 1.728 |
| H HEX | 1.500 |
| MATERIAL | STEEL FACE SEAL |
FS6400-08-04-O
$11.28Attribute: FS6400-08-04-O (08MFS-04MORB Str...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 7/16-20 |
| A DRILL | 0.378 |
| B DRILL | 0.172 |
| L LGTH | 1.433 |
| H HEX | 0.875 |
| MATERIAL | STEEL |
FS6400-08-06-O
$6.05Attribute: FS6400-08-06-O (08MFS-06MORB Str...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 9/16-18 |
| A DRILL | 0.378 |
| B DRILL | 0.264 |
| L LGTH | 1.472 |
| H HEX | 0.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-08-08-O
$6.50Attribute: FS6400-08-08-O (08MFS-08MORB Str...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 3/4-16 |
| A DRILL | 0.378 |
| B DRILL | 0.378 |
| L LGTH | 1.441 |
| H HEX | 0.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-08-08-O-SS
$79.10Attribute: FS6400-08-08-O-SS (08MFS-08MORB ...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 3/4-16 |
| A DRILL | 0.378 |
| B DRILL | 0.378 |
| L LGTH | 1.441 |
| H HEX | 0.875 |
| MATERIAL | STAINLESS STEEL |
FS6400-08-10-O
$11.02Attribute: FS6400-08-10-O (08MFS-10MORB Str...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 7/8-14 |
| A DRILL | 0.378 |
| B DRILL | 0.378 |
| L LGTH | 1.590 |
| H HEX | 1.062 |
| MATERIAL | STEEL FACE SEAL |
FS6400-08-10-O-SS
$322.62Attribute: FS6400-08-10-O-SS (08MFS-10MORB ...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 7/8-14 |
| A DRILL | 0.378 |
| B DRILL | 0.484 |
| L LGTH | 1.590 |
| H HEX | 1.062 |
| MATERIAL | STAINLESS STEEL |
FS6400-08-12-O
$15.40Attribute: FS6400-08-12-O (08MFS-12MORB Str...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.378 |
| B DRILL | 0.609 |
| L LGTH | 1.748 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-08-12-O-SS
$228.69Attribute: FS6400-08-12-O-SS (08MFS-12MORB ...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.378 |
| B DRILL | 0.609 |
| L LGTH | 1.748 |
| H HEX | 1.250 |
| MATERIAL | STAINLESS STEEL |
FS6400-08-16-O
$53.46Attribute: FS6400-08-16-O (08MFS-16MORB Str...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.378 |
| B DRILL | 0.811 |
| L LGTH | 1.788 |
| H HEX | 1.500 |
| MATERIAL | STEEL FACE SEAL |
FS6400-10-06-O
$10.09Attribute: FS6400-10-06-O (10MFS-06MORB Str...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B THREAD | 9/16-18 |
| A DRILL | 0.484 |
| B DRILL | 0.264 |
| L LGTH | 1.642 |
| H HEX | 1.062 |
| MATERIAL | STEEL FACE SEAL |
FS6400-10-08-O
$11.22Attribute: FS6400-10-08-O (10MFS-08MORB Str...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B THREAD | 3/4-16 |
| A DRILL | 0.378 |
| B DRILL | 0.378 |
| L LGTH | 1.781 |
| H HEX | 1.062 |
| MATERIAL | STEEL FACE SEAL |
FS6400-10-10-O
$11.56Attribute: FS6400-10-10-O (10MFS-10MORB Str...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B THREAD | 7/8-14 |
| A DRILL | 0.484 |
| B DRILL | 0.484 |
| L LGTH | 1.700 |
| H HEX | 1.062 |
| MATERIAL | STEEL FACE SEAL |
FS6400-10-10-O-SS
$387.00Attribute: FS6400-10-10-O-SS (10MFS-10MORB ...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B THREAD | 7/8-14 |
| A DRILL | 0.484 |
| B DRILL | 0.484 |
| L LGTH | 1.700 |
| H HEX | 1.062 |
| MATERIAL | STAINLESS STEEL |
FS6400-10-12-O
$17.27Attribute: FS6400-10-12-O (10MFS-12MORB Str...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.484 |
| B DRILL | 0.484 |
| L LGTH | 1.858 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-10-16-O
$29.49Attribute: FS6400-10-16-O (10MFS-16MORB Str...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.484 |
| B DRILL | 0.811 |
| L LGTH | 1.900 |
| H HEX | 1.500 |
| MATERIAL | STEEL |
FS6400-12-06-O
$56.02Attribute: FS6400-12-06-O (12MFS-06MORB Str...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 9/16-18 |
| A DRILL | 0.609 |
| B DRILL | 0.264 |
| L LGTH | 1.772 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-12-08-O
$15.66Attribute: FS6400-12-08-O (12MFS-08MORB Str...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 3/4-16 |
| A DRILL | 0.609 |
| B DRILL | 0.378 |
| L LGTH | 1.911 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-12-08-O-SS
$200.09Attribute: FS6400-12-08-O-SS (12MFS-08MORB ...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 3/4-16 |
| A DRILL | 0.609 |
| B DRILL | 0.378 |
| L LGTH | 1.911 |
| H HEX | 1.250 |
| MATERIAL | STAINLESS STEEL |
FS6400-12-10-O
$17.03Attribute: FS6400-12-10-O (12MFS-10MORB Str...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 7/8-14 |
| A DRILL | 0.609 |
| B DRILL | 0.484 |
| L LGTH | 1.990 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-12-10-O-SS
$310.31Attribute: FS6400-12-10-O-SS (12MFS-10MORB ...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 7/8-14 |
| A DRILL | 0.609 |
| B DRILL | 0.484 |
| L LGTH | 1.990 |
| H HEX | 1.250 |
| MATERIAL | STAINLESS STEEL |
FS6400-12-12-O
$14.23Attribute: FS6400-12-12-O (12MFS-12MORB Str...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.609 |
| B DRILL | 0.609 |
| L LGTH | 1.918 |
| H HEX | 1.250 |
| MATERIAL | STEEL FACE SEAL |
FS6400-12-12-O-SS
$187.79Attribute: FS6400-12-12-O-SS (12MFS-12MORB ...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.609 |
| B DRILL | 0.609 |
| L LGTH | 1.918 |
| H HEX | 1.250 |
| MATERIAL | STAINLESS STEEL |
FS6400-12-16-O
$25.30Attribute: FS6400-12-16-O (12MFS-16MORB Str...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.609 |
| B DRILL | 0.609 |
| L LGTH | 1.958 |
| H HEX | 1.500 |
| MATERIAL | STEEL FACE SEAL |
FS6400-12-16-O-SS
$331.48Attribute: FS6400-12-16-O-SS (12MFS-16MORB ...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.609 |
| B DRILL | 0.609 |
| L LGTH | 1.958 |
| H HEX | 1.500 |
| MATERIAL | STAINLESS STEEL |
FS6400-12-20-O
$37.86Attribute: FS6400-12-20-O (12MFS-20MORB Str...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 0.609 |
| B DRILL | 1.024 |
| L LGTH | 2.038 |
| H HEX | 1.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-16-08-O
$24.41Attribute: FS6400-16-08-O (16MFS-08MORB Str...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 3/4-16 |
| A DRILL | 0.811 |
| B DRILL | 0.378 |
| L LGTH | 1.961 |
| H HEX | 1.500 |
| MATERIAL | STEEL |
FS6400-16-10-O
$55.19Attribute: FS6400-16-10-O (16MFS-10MORB Str...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 7/8-14 |
| A DRILL | 0.811 |
| B DRILL | 0.484 |
| L LGTH | 2.040 |
| H HEX | 1.500 |
| MATERIAL | STEEL FACE SEAL |
FS6400-16-12-O
$20.93Attribute: FS6400-16-12-O (16MFS-12MORB Str...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.811 |
| B DRILL | 0.609 |
| L LGTH | 2.138 |
| H HEX | 1.500 |
| MATERIAL | STEEL FACE SEAL |
FS6400-16-12-O-SS
$701.10Attribute: FS6400-16-12-O-SS (16MFS-12MORB ...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-1/16-12 |
| A DRILL | 0.811 |
| B DRILL | 0.609 |
| L LGTH | 2.138 |
| H HEX | 1.500 |
| MATERIAL | STAINLESS STEEL |
FS6400-16-16-O
$21.21Attribute: FS6400-16-16-O (16MFS-16MORB Str...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.811 |
| B DRILL | 0.811 |
| L LGTH | 1.978 |
| H HEX | 1.500 |
| MATERIAL | STEEL FACE SEAL |
FS6400-16-16-O-SS
$297.95Attribute: FS6400-16-16-O-SS (16MFS-16MORB ...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-5/16-12 |
| A DRILL | 0.811 |
| B DRILL | 0.811 |
| L LGTH | 1.978 |
| H HEX | 1.500 |
| MATERIAL | STAINLESS STEEL |
FS6400-16-20-O
$27.61Attribute: FS6400-16-20-O (16MFS-20MORB Str...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 0.811 |
| B DRILL | 1.024 |
| L LGTH | 2.058 |
| H HEX | 1.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-16-20-O-SS
$307.16Attribute: FS6400-16-20-O-SS (16MFS-20MORB ...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 0.811 |
| B DRILL | 1.024 |
| L LGTH | 2.058 |
| H HEX | 1.875 |
| MATERIAL | STAINLESS STEEL |
FS6400-16-24-O
$255.57Attribute: FS6400-16-24-O (16MFS-24MORB Str...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B THREAD | 1-7/8-12 |
| A DRILL | 0.811 |
| B DRILL | 0.811 |
| L LGTH | 2.130 |
| H HEX | 2.125 |
| MATERIAL | STEEL |
FS6400-20-16-O
$38.74Attribute: FS6400-20-16-O (20MFS-16MORB Str...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1-11/16-12 |
| B THREAD | 1-5/16-12 |
| A DRILL | 1.024 |
| B DRILL | 0.811 |
| L LGTH | 2.278 |
| H HEX | 1.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-20-16-O-SS
$443.65Attribute: FS6400-20-16-O-SS (20MFS-16MORB ...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1-11/16-12 |
| B THREAD | 1-5/16-12 |
| A DRILL | 1.024 |
| B DRILL | 0.811 |
| L LGTH | 2.278 |
| H HEX | 1.750 |
| MATERIAL | STAINLESS STEEL |
FS6400-20-20-O
$45.34Attribute: FS6400-20-20-O (20MFS-20MORB Str...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1-11/16-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 1.024 |
| B DRILL | 1.024 |
| L LGTH | 2.058 |
| H HEX | 1.875 |
| MATERIAL | STEEL FACE SEAL |
FS6400-20-20-O-SS
$420.13Attribute: FS6400-20-20-O-SS (20MFS-20MORB ...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1-11/16-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 1.024 |
| B DRILL | 1.024 |
| L LGTH | 2.058 |
| H HEX | 1.875 |
| MATERIAL | STAINLESS STEEL |
FS6400-20-24-O
$126.46Attribute: FS6400-20-24-O (20MFS-24MORB Str...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1-11/16-12 |
| B THREAD | 1-7/8-12 |
| A DRILL | 1.024 |
| B DRILL | 1.260 |
| L LGTH | 2.128 |
| H HEX | 2.125 |
| MATERIAL | STEEL FACE SEAL |
FS6400-20-24-O-SS
$285.56Attribute: FS6400-20-24-O-SS (20MFS-24MORB ...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1-11/16-12 |
| B THREAD | 1-7/8-12 |
| A DRILL | 1.024 |
| B DRILL | 1.260 |
| L LGTH | 2.128 |
| H HEX | 2.125 |
| MATERIAL | STAINLESS STEEL |
FS6400-24-20-O
$114.40Attribute: FS6400-24-20-O (24MFS-20MORB Str...)
Stock Status: True
| TUBE O.D. | 1-1/2 |
|---|---|
| A THREAD | 2-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 1.260 |
| B DRILL | 1.024 |
| L LGTH | 2.348 |
| H HEX | 2.125 |
| MATERIAL | STEEL FACE SEAL |
FS6400-24-20-O-SS
$431.92Attribute: FS6400-24-20-O-SS (24MFS-20MORB ...)
Stock Status: True
| TUBE O.D. | 1-1/2 |
|---|---|
| A THREAD | 2-12 |
| B THREAD | 1-5/8-12 |
| A DRILL | 1.260 |
| B DRILL | 1.024 |
| L LGTH | 2.348 |
| H HEX | 2.125 |
| MATERIAL | STAINLESS STEEL |
FS6400-24-24-O
$64.19Attribute: FS6400-24-24-O (24MFS-24MORB Str...)
Stock Status: True
| TUBE O.D. | 1-1/2 |
|---|---|
| A THREAD | 2-12 |
| B THREAD | 1-7/8-12 |
| A DRILL | 1.260 |
| B DRILL | 1.260 |
| L LGTH | 2.128 |
| H HEX | 2.125 |
| MATERIAL | STEEL FACE SEAL |
FS6400-24-24-O-SS
$814.70Attribute: FS6400-24-24-O-SS (24MFS-24MORB ...)
Stock Status: True
| TUBE O.D. | 1-1/2 |
|---|---|
| A THREAD | 2-12 |
| B THREAD | 1-7/8-12 |
| A DRILL | 1.260 |
| B DRILL | 1.260 |
| L LGTH | 2.128 |
| H HEX | 2.125 |
| MATERIAL | STAINLESS STEEL |
FS6400-32-32-O
$173.03Attribute: FS6400-32-32-O (32MFS-32MORB Str...)
Stock Status: True
| TUBE O.D. | 2 |
|---|---|
| A THREAD | 2-1/2-12 |
| B THREAD | 2-1/2-12 |
| A DRILL | 1.772 |
| B DRILL | 1.578 |
| L LGTH | 2.313 |
| H HEX | 2.750 |
| MATERIAL | STEEL FACE SEAL |
General Attributes
| Connections | ORB, Face Seal |
|---|---|
| Shape | Straight |
PDF Documents
Download CAD and Drawings
Open PDF
