O-Ring Face Seal Fittings

FS2703-FG

Scraped 2026-02-15 08:27:16

Description

Description

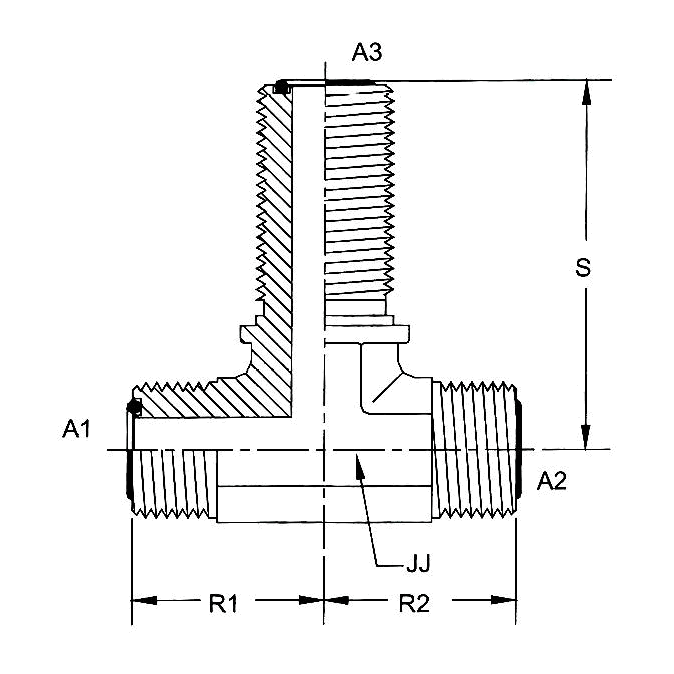

MFS-MFS-MFS Bulkhead Tee

Variations (9)

FS2703-04-04-04-FG

$17.77

Attribute: FS2703-04-04-04-FG (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
A3 THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
A3 DRILL0.172
R1 LGTH0.890
R2 LGTH0.890
S LGTH1.850
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2703-06-06-06-FG

$20.33

Attribute: FS2703-06-06-06-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
A3 THREAD11/16-16
A1 DRILL0.264
A2 DRILL0.264
A3 DRILL0.264
R1 LGTH1.020
R2 LGTH1.020
S LGTH2.050
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2703-06-06-08-FG

$55.34

Attribute: FS2703-06-06-08-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
A3 THREAD13/16-16
A1 DRILL0.264
A2 DRILL0.264
A3 DRILL0.378
R1 LGTH1.08
R2 LGTH1.08
S LGTH2.18
JJ FLATS0.75
MATERIALSTEEL FORGED

FS2703-08-08-08-FG

$23.38

Attribute: FS2703-08-08-08-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
A3 THREAD13/16-16
A1 DRILL0.378
A2 DRILL0.378
A3 DRILL0.378
R1 LGTH1.14
R2 LGTH1.14
S LGTH2.18
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2703-08-08-12-FG

$92.23

Attribute: FS2703-08-08-12-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
A3 THREAD1-3/16-16
A1 DRILL.378
A2 DRILL.378
A3 DRILL.609
R1 LGTH1.341
R2 LGTH1.341
S LGTH2.66
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2703-10-10-10-FG

$37.31

Attribute: FS2703-10-10-10-FG (10MFS-10MFS-...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
A2 THREAD1-14
A3 THREAD1-14
A1 DRILL0.484
A2 DRILL0.484
A3 DRILL0.484
R1 LGTH1.36
R2 LGTH1.36
S LGTH2.48
JJ FLATS1.062
MATERIALSTEEL

FS2703-12-12-12-FG

$56.21

Attribute: FS2703-12-12-12-FG (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
A3 THREAD1-3/16-12
A1 DRILL0.609
A2 DRILL0.609
A3 DRILL0.609
R1 LGTH1.52
R2 LGTH1.52
S LGTH2.65
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2703-16-16-16-FG

$115.48

Attribute: FS2703-16-16-16-FG (16MFS-16MFS-...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
A3 THREAD1-7/16-12
A1 DRILL0.811
A2 DRILL0.811
A3 DRILL0.811
R1 LGTH1.670
R2 LGTH1.670
S LGTH2.800
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2703-20-20-20-FG

$210.87

Attribute: FS2703-20-20-20-FG (20MFS-20MFS-...)

Stock Status: True

TUBE O.D.1-1/4
A1 THREAD1-11/16-12
A2 THREAD1-11/16-12
A3 THREAD1-11/16-12
A1 DRILL1.024
A2 DRILL1.024
A3 DRILL1.024
R1 LGTH1.790
R2 LGTH1.790
S LGTH2.970
JJ FLATS1.625
MATERIALSTEEL

General Attributes

Connections Face Seal
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
