O-Ring Face Seal Fittings

FS2702-FG

Scraped 2026-02-15 08:27:16

Description

Description

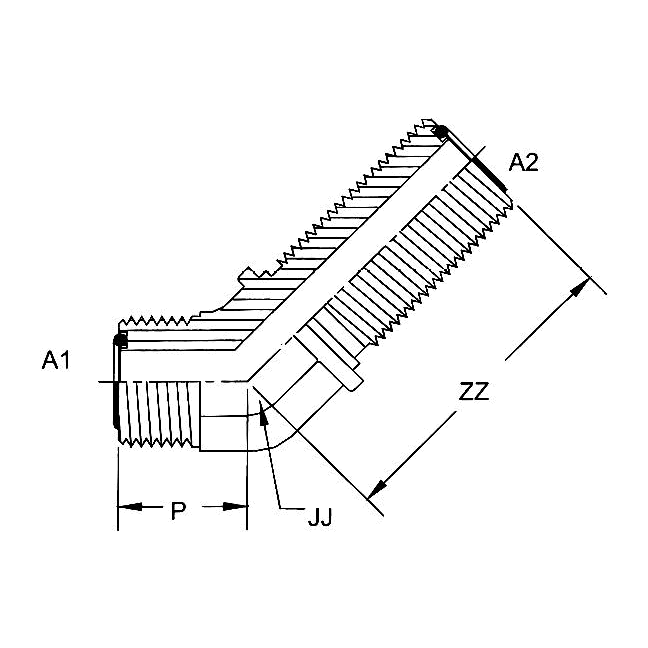

MFS-MFS Bulkhead 45 Elbow

Variations (13)

FS2702-04-04-FG

$12.50

Attribute: FS2702-04-04-FG (04MFS-04MFS Bul...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
P LGTH0.63
ZZ LGTH1.73
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2702-04-04-SS

$367.81

Attribute: FS2702-04-04-SS (04MFS-04MFS Bul...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
P LGTH0.63
ZZ LGTH1.73
JJ FLATS0.562
MATERIALSTEEL FACE SEAL

FS2702-06-06-FG

$14.92

Attribute: FS2702-06-06-FG (06MFS-06MFS Bul...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
A1 DRILL0.264
A2 DRILL0.264
P LGTH0.74
ZZ LGTH1.91
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2702-06-06-SS

$249.91

Attribute: FS2702-06-06-SS (06MFS-06MFS Bul...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
A1 DRILL0.264
A2 DRILL0.264
P LGTH0.74
ZZ LGTH1.91
JJ FLATS0.750
MATERIALSTEEL FACE SEAL

FS2702-08-08-FG

$17.92

Attribute: FS2702-08-08-FG (08MFS-08MFS Bul...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
A1 DRILL0.378
A2 DRILL0.378
P LGTH0.80
ZZ LGTH2.01
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2702-10-08-FG

$28.95

Attribute: FS2702-10-08-FG (10MFS-08MFS Bul...)

Stock Status: True

TUBE O.D.5/8 1/2
A1 THREAD1-14
A2 THREAD13/16-16
A1 DRILL0.484
A2 DRILL0.378
P LGTH0.92
ZZ LGTH2.13
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2702-10-10-FG

$28.55

Attribute: FS2702-10-10-FG (10MFS-10MFS Bul...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
A2 THREAD1-14
A1 DRILL0.484
A2 DRILL0.484
P LGTH0.920
ZZ LGTH2.230
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2702-12-12-FG

$41.74

Attribute: FS2702-12-12-FG (12MFS-12MFS Bul...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
A1 DRILL0.609
A2 DRILL0.609
P LGTH1.020
ZZ LGTH2.390
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2702-12-12-SS

$444.00

Attribute: FS2702-12-12-SS (12MFS-12MFS Bul...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
A1 DRILL0.609
A2 DRILL0.609
P LGTH1.02
ZZ LGTH2.39
JJ FLATS1.188
MATERIALSTEEL FACE SEAL

FS2702-16-16-FG

$59.11

Attribute: FS2702-16-16-FG (16MFS-16MFS Bul...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
A1 DRILL0.811
A2 DRILL0.811
P LGTH1.18
ZZ LGTH2.57
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2702-16-16-SS

$395.42

Attribute: FS2702-16-16-SS (16MFS-16MFS Bul...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
A1 DRILL0.811
A2 DRILL0.811
P LGTH1.18
ZZ LGTH2.57
JJ FLATS1.438
MATERIALSTEEL FACE SEAL

FS2702-20-20-FG

$123.16

Attribute: FS2702-20-20-FG (20MFS-20MFS Bul...)

Stock Status: True

TUBE O.D.1-1/4
A1 THREAD1-11/16-12
A2 THREAD1-11/16-12
A1 DRILL1.024
A2 DRILL1.024
P LGTH1.26
ZZ LGTH2.64
JJ FLATS1.625
MATERIALSTEEL FORGED

FS2702-24-24-FG

$227.76

Attribute: FS2702-24-24-FG (24MFS-24MFS Bul...)

Stock Status: True

TUBE O.D.1-1/2
A1 THREAD2-12
A2 THREAD2-12
A1 DRILL1.260
A2 DRILL1.260
P LGTH1.460
ZZ LGTH2.640
JJ FLATS1.875
MATERIALSTEEL FORGED

General Attributes

Connections Face Seal
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
