O-Ring Face Seal Fittings

FS2650-FG

Scraped 2026-02-15 08:27:16

Description

Description

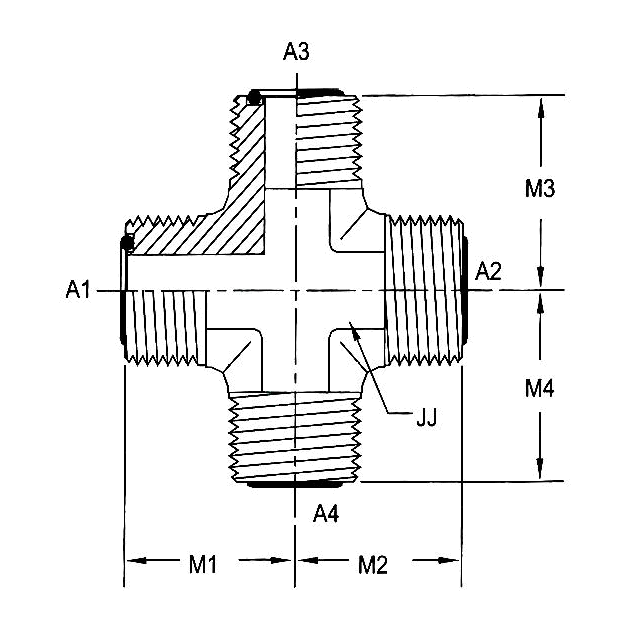

MFS-MFS-MFS-MFS-Cross

Variations (9)

FS2650-04-04-04-04-FG

$13.83

Attribute: FS2650-04-04-04-04-FG (04MFS-04M...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
A3 THREAD9/16-18
A4 THREAD9/16-18
A1 DRILL0.172
A2 DRILL0.172
A3 DRILL0.172
A4 DRILL0.172
M1 LGTH0.85
M2 LGTH0.85
M3 LGTH0.85
M4 LGTH0.85
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2650-06-06-06-06-FG

$34.36

Attribute: FS2650-06-06-06-06-FG (06MFS-06M...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
A3 THREAD11/16-16
A4 THREAD11/16-16
A1 DRILL0.264
A2 DRILL0.264
A3 DRILL0.264
A4 DRILL0.264
M1 LGTH0.98
M2 LGTH0.98
M3 LGTH0.98
M4 LGTH0.98
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2650-08-08-08-08-FG

$42.08

Attribute: FS2650-08-08-08-08-FG (08MFS-08M...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
A3 THREAD13/16-16
A4 THREAD13/16-16
A1 DRILL0.378
A2 DRILL0.378
A3 DRILL0.378
A4 DRILL0.378
M1 LGTH1.100
M2 LGTH1.100
M3 LGTH1.100
M4 LGTH1.100
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2650-10-10-10-10-FG

$74.97

Attribute: FS2650-10-10-10-10-FG (10MFS-10M...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
A2 THREAD1-14
A3 THREAD1-14
A4 THREAD1-14
A1 DRILL0.484
A2 DRILL0.484
A3 DRILL0.484
A4 DRILL0.484
M1 LGTH1.31
M2 LGTH1.31
M3 LGTH1.31
M4 LGTH1.31
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2650-12-12-12-12-FG

$78.81

Attribute: FS2650-12-12-12-12-FG (12MFS-12M...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
A3 THREAD1-3/16-12
A4 THREAD1-3/16-12
A1 DRILL0.609
A2 DRILL0.609
A3 DRILL0.609
A4 DRILL0.609
M1 LGTH1.47
M2 LGTH1.47
M3 LGTH1.47
M4 LGTH1.47
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2650-12-12-12-12-SS

$398.42

Attribute: FS2650-12-12-12-12-SS (12MFS-12M...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
A3 THREAD1-3/16-12
A4 THREAD1-3/16-12
A1 DRILL0.609
A2 DRILL0.609
A3 DRILL0.609
A4 DRILL0.609
M1 LGTH1.47
M2 LGTH1.47
M3 LGTH1.47
M4 LGTH1.47
JJ FLATS1.188
MATERIALSTAINLESS STEEL

FS2650-16-16-16-16-FG

$130.74

Attribute: FS2650-16-16-16-16-FG (16MFS-16M...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
A3 THREAD1-7/16-12
A4 THREAD1-7/16-12
A1 DRILL0.811
A2 DRILL0.811
A3 DRILL0.811
A4 DRILL0.811
M1 LGTH1.64
M2 LGTH1.64
M3 LGTH1.64
M4 LGTH1.64
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2650-20-20-20-20-FG

$138.02

Attribute: FS2650-20-20-20-20-FG (20MFS-20M...)

Stock Status: True

TUBE O.D.1-1/4
A1 THREAD1-11/16-12
A2 THREAD1-11/16-12
A3 THREAD1-11/16-12
A4 THREAD1-11/16-12
A1 DRILL1.024
A2 DRILL1.024
A3 DRILL1.024
A4 DRILL1.024
M1 LGTH1.76
M2 LGTH1.76
M3 LGTH1.76
M4 LGTH1.76
JJ FLATS1.625
MATERIALSTEEL FORGED

FS2650-24-24-24-24-FG

$358.75

Attribute: FS2650-24-24-24-24-FG (24MFS-24M...)

Stock Status: True

TUBE O.D.1-1/2
A1 THREAD2-12
A2 THREAD2-12
A3 THREAD2-12
A4 THREAD2-12
A1 DRILL1.260
A2 DRILL1.260
A3 DRILL1.260
A4 DRILL1.260
M1 LGTH1.92
M2 LGTH1.92
M3 LGTH1.92
M4 LGTH1.92
JJ FLATS1.875
MATERIALSTEEL FORGED

General Attributes

Connections Face Seal
Shape Cross

PDF Documents

Download CAD and Drawings Open PDF
