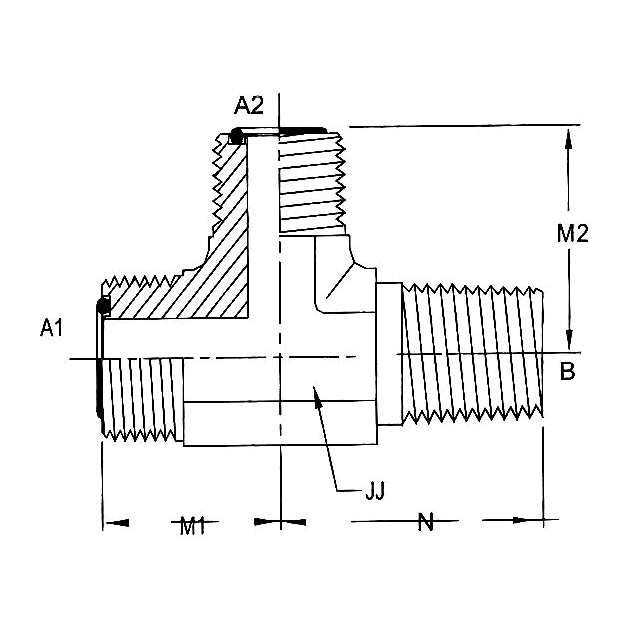

FS2605-FG

Attribute: FS2605-04-04-04-FG (04MFS-04MP-0...)

Stock Status: True

TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	1/4-18
A3 THREAD	9/16-18
A1 DRILL	0.172
A2 DRILL	0.281
A3 DRILL	0.172
M LENGTH	0.850
M1 LENGTH	0.850
L LENGTH	1.120
A/F	0.562
MATERIAL	STEEL FORGED

Attribute: FS2605-04-04-04-FG-BB (04MFS-04M...)

Stock Status: True

TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	1/4-18
A3 THREAD	9/16-18
A1 DRILL	0.172
A2 DRILL	0.281
A3 DRILL	0.172
M LENGTH	0.850
M1 LENGTH	0.850
L LENGTH	1.120
A/F	0.562
MATERIAL	STEEL

Attribute: FS2605-06-06-06-FG (06MFS-06MP-0...)

Stock Status: True

TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	3/8-18
A3 THREAD	11/16-16
A1 DRILL	0.264
A2 DRILL	0.406
A3 DRILL	0.264
M LENGTH	0.980
M1 LENGTH	0.980
L LENGTH	1.220
A/F	0.750
MATERIAL	STEEL FORGED

Attribute: FS2605-06-06-06-FG-BB (06MFS-06M...)

Stock Status: True

TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	3/8-18
A3 THREAD	11/16-16
A1 DRILL	0.264
A2 DRILL	0.406
A3 DRILL	0.264
M LENGTH	0.980
M1 LENGTH	0.980
L LENGTH	1.220
A/F	0.750
MATERIAL	STEEL

Attribute: FS2605-08-08-08-FG (08MFS-08MP-0...)

Stock Status: True

TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	1/2-14
A3 THREAD	13/16-16
A1 DRILL	0.378
A2 DRILL	0.531
A3 DRILL	0.378
M LENGTH	1.100
M1 LENGTH	1.100
L LENGTH	1.470
A/F	0.875
MATERIAL	STEEL FORGED

Attribute: FS2605-08-08-08-FG-BB (08MFS-08M...)

Stock Status: True

TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	1/2-14
A3 THREAD	13/16-16
A1 DRILL	0.378
A2 DRILL	0.531
A3 DRILL	0.378
M LENGTH	1.100
M1 LENGTH	1.100
L LENGTH	1.470
A/F	0.875
MATERIAL	STEEL

Attribute: FS2605-12-12-12-FG (12MFS-12MP-1...)

Stock Status: True

TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	3/4-14
A3 THREAD	1-3/16-12
A1 DRILL	0.609
A2 DRILL	0.719
A3 DRILL	0.609
M LENGTH	1.470
M1 LENGTH	1.470
L LENGTH	1.590
A/F	1.188
MATERIAL	STEEL FORGED

Attribute: FS2605-12-12-12-FG-BB (12MFS-12M...)

Stock Status: True

TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	3/4-14
A3 THREAD	1-3/16-12
A1 DRILL	0.609
A2 DRILL	0.719
A3 DRILL	0.609
M LENGTH	1.470
M1 LENGTH	1.470
L LENGTH	1.590
A/F	1.188
MATERIAL	STEEL

Attribute: FS2605-16-16-16-FG (16MFS-16MP-1...)

Stock Status: True

TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-11-1/2
A3 THREAD	1-7/16-12
A1 DRILL	0.811
A2 DRILL	0.938
A3 DRILL	0.811
M LENGTH	1.640
M1 LENGTH	1.640
L LENGTH	1.970
A/F	1.438
MATERIAL	STEEL FORGED

Attribute: FS2605-16-16-16-FG-BB (16MFS-16M...)

Stock Status: True

TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-11-1/2
A3 THREAD	1-7/16-12
A1 DRILL	0.811
A2 DRILL	0.938
A3 DRILL	0.811
M LENGTH	1.640
M1 LENGTH	1.640
L LENGTH	1.970
A/F	1.438
MATERIAL	STEEL
