O-Ring Face Seal Fittings

FS2603-FG

Scraped 2026-02-15 08:27:16

Description

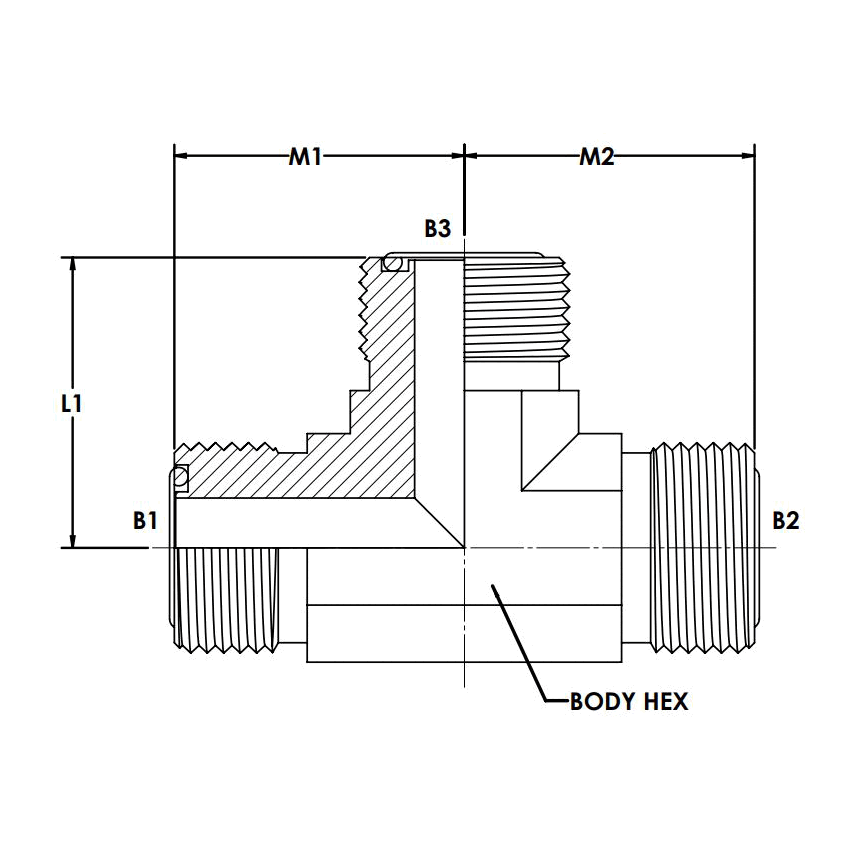

MFS-MFS-MFS Tee

Variations (19)

FS2603-04-04-04-FG

$13.19

Attribute: FS2603-04-04-04-FG (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	9/16-18
A3 THREAD	9/16-18
A1 DRILL	0.172
A2 DRILL	0.172
A3 DRILL	0.172
M1 LGTH	0.85
M2 LGTH	0.85
M3 LGTH	0.85
JJ FLATS	0.562
MATERIAL	STEEL FORGED

FS2603-04-04-04-SS

$188.63

Attribute: FS2603-04-04-04-SS (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	9/16-18
A3 THREAD	9/16-18
A1 DRILL	0.172
A2 DRILL	0.172
A3 DRILL	0.172
M1 LGTH	0.85
M2 LGTH	0.85
M3 LGTH	0.85
JJ FLATS	0.562
MATERIAL	STAINLESS STEEL

FS2603-06-06-06-FG

$18.26

Attribute: FS2603-06-06-06-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	11/16-16
A3 THREAD	11/16-16
A1 DRILL	0.264
A2 DRILL	0.264
A3 DRILL	0.264
M1 LGTH	0.980
M2 LGTH	0.980
M3 LGTH	0.980
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS2603-06-06-06-SS

$201.42

Attribute: FS2603-06-06-06-SS (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	11/16-16
A3 THREAD	11/16-16
A1 DRILL	0.264
A2 DRILL	0.264
A3 DRILL	0.264
M1 LGTH	0.98
M2 LGTH	0.98
M3 LGTH	0.98
JJ FLATS	0.750
MATERIAL	STEEL FACE SEAL

FS2603-06-06-08-FG

$22.74

Attribute: FS2603-06-06-08-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.	3/8 1/2
A1 THREAD	11/16-16
A2 THREAD	11/16-16
A3 THREAD	13/16-16
A1 DRILL	0.264
A2 DRILL	0.264
A3 DRILL	0.378
M1 LGTH	1.040
M2 LGTH	1.040
M3 LGTH	1.100
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS2603-06-08-08-FG

$24.85

Attribute: FS2603-06-08-08-FG (06MFS-08MFS-...)

Stock Status: True

TUBE O.D.	3/8 1/2
A1 THREAD	11/16-16
A2 THREAD	13/16-16
A3 THREAD	13/16-16
A1 DRILL	0.264
A2 DRILL	0.378
A3 DRILL	0.378
M1 LGTH	1.04
M2 LGTH	1.10
M3 LGTH	1.10
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS2603-08-08-06-FG

$50.21

Attribute: FS2603-08-08-06-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	13/16-16
A3 THREAD	11/16-16
A1 DRILL	0.378
A2 DRILL	0.378
A3 DRILL	0.264
M1 LGTH	1.10
M2 LGTH	1.10
M3 LGTH	1.04
JJ FLATS	.750
MATERIAL	STEEL FORGED

FS2603-08-08-08-FG

$22.50

Attribute: FS2603-08-08-08-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	13/16-16
A3 THREAD	13/16-16
A1 DRILL	0.378
A2 DRILL	0.378
A3 DRILL	0.378
M1 LGTH	1.10
M2 LGTH	1.10
M3 LGTH	1.10
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS2603-08-08-08-SS

$254.98

Attribute: FS2603-08-08-08-SS (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	13/16-16
A3 THREAD	13/16-16
A1 DRILL	0.378
A2 DRILL	0.378
A3 DRILL	0.378
M1 LGTH	1.10
M2 LGTH	1.10
M3 LGTH	1.10
JJ FLATS	0.750
MATERIAL	STEEL FACE SEAL

FS2603-08-08-10-FG

$31.21

Attribute: FS2603-08-08-10-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.	1/2 5/8
A1 THREAD	13/16-16
A2 THREAD	13/16-16
A3 THREAD	1-14
A1 DRILL	0.378
A2 DRILL	0.378
A3 DRILL	0.484
M1 LGTH	1.21
M2 LGTH	1.21
M3 LGTH	1.31
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS2603-10-10-10-FG

$26.78

Attribute: FS2603-10-10-10-FG (10MFS-10MFS-...)

Stock Status: True

TUBE O.D.	5/8
A1 THREAD	1-14
A2 THREAD	1-14
A3 THREAD	1-14
A1 DRILL	0.484
A2 DRILL	0.484
A3 DRILL	0.484
M1 LGTH	1.31
M2 LGTH	1.31
M3 LGTH	1.31
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS2603-12-12-08-FG

$42.38

Attribute: FS2603-12-12-08-FG (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	1-3/16-12
A3 THREAD	13/16-16
A1 DRILL	0.609
A2 DRILL	0.609
A3 DRILL	0.378
M1 LGTH	1.469
M2 LGTH	1.469
M3 LGTH	1.350
JJ FLATS	1.188
MATERIAL	STEEL

FS2603-12-12-12-FG

$43.85

Attribute: FS2603-12-12-12-FG (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	1-3/16-12
A3 THREAD	1-3/16-12
A1 DRILL	0.609
A2 DRILL	0.609
A3 DRILL	0.609
M1 LGTH	1.47
M2 LGTH	1.47
M3 LGTH	1.47
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS2603-12-12-12-SS

$793.10

Attribute: FS2603-12-12-12-SS (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	1-3/16-12
A3 THREAD	1-3/16-12
A1 DRILL	0.609
A2 DRILL	0.609
A3 DRILL	0.609
M1 LGTH	1.47
M2 LGTH	1.47
M3 LGTH	1.47
JJ FLATS	1.188
MATERIAL	STAINLESS STEEL

FS2603-16-16-12-FG

$64.04

Attribute: FS2603-16-16-12-FG (16MFS-16MFS-...)

Stock Status: True

TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-7/16-12
A3 THREAD	1-3/16-12
A1 DRILL	0.811
A2 DRILL	0.811
A3 DRILL	0.609
M1 LGTH	1.64
M2 LGTH	1.64
M3 LGTH	1.62
JJ FLATS	1.438
MATERIAL	STEEL

FS2603-16-16-16-FG

$56.90

Attribute: FS2603-16-16-16-FG (16MFS-16MFS-...)

Stock Status: True

TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-7/16-12
A3 THREAD	1-7/16-12
A1 DRILL	0.811
A2 DRILL	0.811
A3 DRILL	0.811
M1 LGTH	1.64
M2 LGTH	1.64
M3 LGTH	1.64
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS2603-20-20-20-FG

$93.82

Attribute: FS2603-20-20-20-FG (20MFS-20MFS-...)

Stock Status: True

TUBE O.D.	1-1/4
A1 THREAD	1-11/16-12
A2 THREAD	1-11/16-12
A3 THREAD	1-11/16-12
A1 DRILL	1.024
A2 DRILL	1.024
A3 DRILL	1.024
M1 LGTH	1.76
M2 LGTH	1.76
M3 LGTH	1.76
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS2603-24-24-24-FG

$328.87

Attribute: FS2603-24-24-24-FG (24MFS-24MFS-...)

Stock Status: True

TUBE O.D.	1-1/2
A1 THREAD	2-12
A2 THREAD	2-12
A3 THREAD	2-12
A1 DRILL	1.260
A2 DRILL	1.260
A3 DRILL	1.260
M1 LGTH	1.92
M2 LGTH	1.92
M3 LGTH	1.92
JJ FLATS	1.875
MATERIAL	STEEL FORGED

FS2603-32-32-32-FG

$685.60

Attribute: FS2603-32-32-32-FG (32MFS-32MFS-...)

Stock Status: True

TUBE O.D.	2
A1 THREAD	2-1/2-12
A2 THREAD	2-1/2-12
A3 THREAD	2-1/2-12
A1 DRILL	1.772
A2 DRILL	1.772
A3 DRILL	1.772
M1 LGTH	2.52
M2 LGTH	2.52
M3 LGTH	2.52
JJ FLATS	2.562
MATERIAL	STEEL FORGED

General Attributes

Connections	Face Seal
Shape	Tee
