O-Ring Face Seal Fittings

FS2601-FG

Scraped 2026-02-15 08:27:16

Description

Description

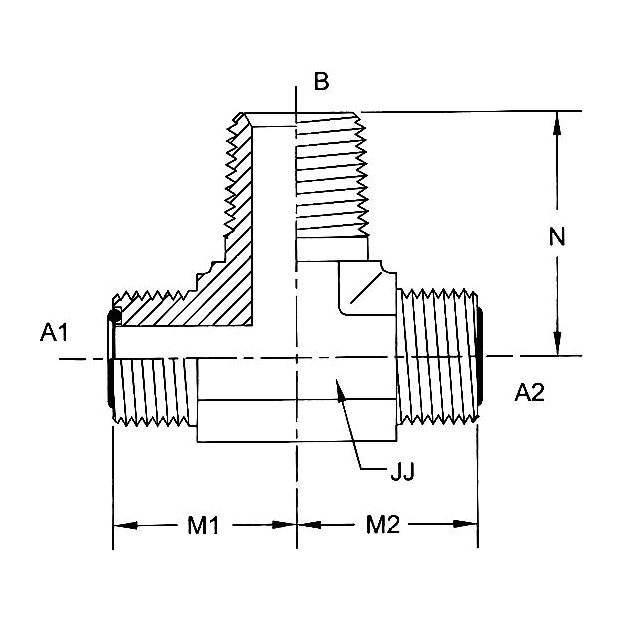

MFS-MFS-MP Tee

Variations (10)

FS2601-04-04-04-FG

$17.67

Attribute: FS2601-04-04-04-FG (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD1/4-18
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.281
M1 LGTH0.85
M2 LGTH0.85
N LGTH1.12
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2601-04-04-04-SS

$276.84

Attribute: FS2601-04-04-04-SS (04MFS-04MFS-...)

Stock Status: True

TUBE O.D.1/4
A1 THREAD9/16-18
A2 THREAD9/16-18
B THREAD1/4-18
A1 DRILL0.172
A2 DRILL0.172
B DRILL0.281
M1 LGTH0.85
M2 LGTH0.85
N LGTH1.12
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2601-06-06-04-FG

$18.80

Attribute: FS2601-06-06-04-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD1/4-18
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.281
M1 LGTH0.98
M2 LGTH0.98
N LGTH1.09
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2601-06-06-06-FG

$22.10

Attribute: FS2601-06-06-06-FG (06MFS-06MFS-...)

Stock Status: True

TUBE O.D.3/8
A1 THREAD11/16-16
A2 THREAD11/16-16
B THREAD3/8-18
A1 DRILL0.264
A2 DRILL0.264
B DRILL0.406
M1 LGTH0.98
M2 LGTH0.98
N LGTH1.22
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2601-08-08-08-FG

$28.99

Attribute: FS2601-08-08-08-FG (08MFS-08MFS-...)

Stock Status: True

TUBE O.D.1/2
A1 THREAD13/16-16
A2 THREAD13/16-16
B THREAD1/2-14
A1 DRILL0.378
A2 DRILL0.378
B DRILL0.531
M1 LGTH1.10
M2 LGTH1.10
N LGTH1.47
JJ FLATS0.875
MATERIALSTEEL FORGED

FS2601-10-10-08-FG

$37.19

Attribute: FS2601-10-10-08-FG (10MFS-10MFS-...)

Stock Status: True

TUBE O.D.5/8
A1 THREAD1-14
A2 THREAD1-14
B THREAD1/2-14
A1 DRILL0.484
A2 DRILL0.484
B DRILL0.531
M1 LGTH1.31
M2 LGTH1.31
N LGTH1.59
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2601-12-12-12-FG

$53.60

Attribute: FS2601-12-12-12-FG (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
B THREAD3/4-14
A1 DRILL0.609
A2 DRILL0.609
B DRILL0.719
M1 LGTH1.47
M2 LGTH1.47
N LGTH1.59
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2601-12-12-12-SS

$242.77

Attribute: FS2601-12-12-12-SS (12MFS-12MFS-...)

Stock Status: True

TUBE O.D.3/4
A1 THREAD1-3/16-12
A2 THREAD1-3/16-12
B THREAD3/4-14
A1 DRILL0.609
A2 DRILL0.609
B DRILL0.719
M1 LGTH1.47
M2 LGTH1.47
N LGTH1.59
JJ FLATS1.188
MATERIALSTEEL FACE SEAL

FS2601-16-16-16-FG

$115.63

Attribute: FS2601-16-16-16-FG (16MFS-16MFS-...)

Stock Status: True

TUBE O.D.1
A1 THREAD1-7/16-12
A2 THREAD1-7/16-12
B THREAD1-11-1/2
A1 DRILL0.811
A2 DRILL0.811
B DRILL0.938
M1 LGTH1.640
M2 LGTH1.640
N LGTH1.970
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2601-20-20-20-FG

$193.70

Attribute: FS2601-20-20-20-FG (20MFS-20MFS-...)

Stock Status: True

TUBE O.D.1-1/4
A1 THREAD1-11/16-12
A2 THREAD1-11/16-12
B THREAD1-1/4-11-1/2
A1 DRILL1.024
A2 DRILL1.024
B DRILL1.250
M1 LGTH1.760
M2 LGTH1.760
N LGTH2.380
JJ FLATS1.625
MATERIALSTEEL FORGED

General Attributes

Connections NPT, Face Seal
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
