O-Ring Face Seal Fittings

FS2503-FG

Scraped 2026-02-15 08:27:16

Description

Description

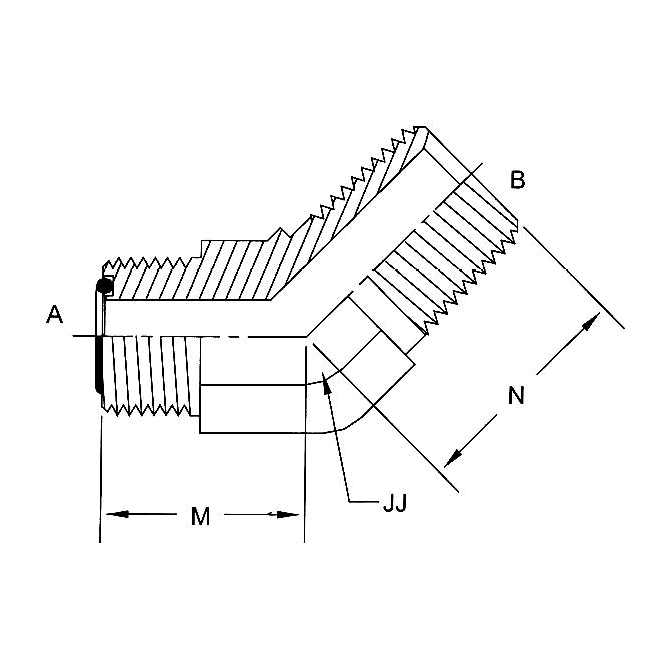

MFS-MP 45 Elbow

Variations (16)

FS2503-04-02-FG

$8.42

Attribute: FS2503-04-02-FG (04MFS-02MP 45 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD1/8-27
A DRILL0.172
B DRILL0.188
M LGTH0.63
N LGTH0.67
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2503-04-04-FG

$9.31

Attribute: FS2503-04-04-FG (04MFS-04MP 45 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD1/4-18
A DRILL0.172
B DRILL0.281
M LGTH0.63
N LGTH0.86
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2503-04-04-SS

$216.68

Attribute: FS2503-04-04-SS (04MFS-04MP 45 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD1/4-18
A DRILL0.172
B DRILL0.281
M LGTH0.63
N LGTH0.86
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2503-06-04-FG

$9.41

Attribute: FS2503-06-04-FG (06MFS-04MP 45 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD1/4-18
A DRILL0.264
B DRILL0.281
M LGTH0.74
N LGTH0.87
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2503-06-06-FG

$14.23

Attribute: FS2503-06-06-FG (06MFS-06MP 45 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD3/8-18
A DRILL0.264
B DRILL0.406
M LGTH0.740
N LGTH0.950
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2503-06-06-SS

$196.20

Attribute: FS2503-06-06-SS (06MFS-06MP 45 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD3/8-18
A DRILL0.264
B DRILL0.406
M LGTH0.740
N LGTH0.950
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2503-06-08-FG

$14.82

Attribute: FS2503-06-08-FG (06MFS-08MP 45 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD1/2-14
A DRILL0.264
B DRILL0.531
M LGTH0.79
N LGTH1.17
JJ FLATS0.875
MATERIALSTEEL FORGED

FS2503-08-06-FG

$30.32

Attribute: FS2503-08-06-FG (08MFS-06MP 45 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD3/8-18
A DRILL0.378
B DRILL0.406
M LGTH0.80
N LGTH0.95
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2503-08-08-FG

$13.69

Attribute: FS2503-08-08-FG (08MFS-08MP 45 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD1/2-14
A DRILL0.378
B DRILL0.531
M LGTH0.80
N LGTH1.17
JJ FLATS0.875
MATERIALSTEEL FORGED

FS2503-08-12-FG

$87.38

Attribute: FS2503-08-12-FG (08MFS-12MP 45 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD3/4-14
A DRILL0.378
B DRILL0.719
M LGTH0.82
N LGTH1.20
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2503-10-08-FG

$21.46

Attribute: FS2503-10-08-FG (10MFS-08MP 45 E...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD1/2-14
A DRILL0.484
B DRILL0.531
M LGTH0.92
N LGTH1.20
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2503-12-08-FG

$26.82

Attribute: FS2503-12-08-FG (12MFS-08MP 45 E...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD1/2-14
A DRILL0.609
B DRILL0.531
M LGTH1.020
N LGTH1.300
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2503-12-12-FG

$28.15

Attribute: FS2503-12-12-FG (12MFS-12MP 45 E...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD3/4-14
A DRILL0.609
B DRILL0.719
M LGTH1.020
N LGTH1.180
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2503-16-16-FG

$39.43

Attribute: FS2503-16-16-FG (16MFS-16MP 45 E...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD1-11-1/2
A DRILL0.811
B DRILL0.938
M LGTH1.180
N LGTH1.560
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2503-20-20-FG

$61.28

Attribute: FS2503-20-20-FG (20MFS-20MP 45 E...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-11/16-12
B THREAD1-1/4-11-1/2
A DRILL1.024
B DRILL1.250
M LGTH1.26
N LGTH1.67
JJ FLATS1.625
MATERIALSTEEL FORGED

FS2503-20-20-SS

$701.69

Attribute: FS2503-20-20-SS (20MFS-20MP 45 E...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-11/16-12
B THREAD1-1/4-11-1/2
A DRILL1.024
B DRILL1.250
M LGTH1.26
N LGTH1.67
JJ FLATS1.625
MATERIALSTAINLESS STEEL

General Attributes

Connections NPT, Face Seal
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
