O-Ring Face Seal Fittings

FS2501-FG

Scraped 2026-02-15 08:27:16

Description

Description

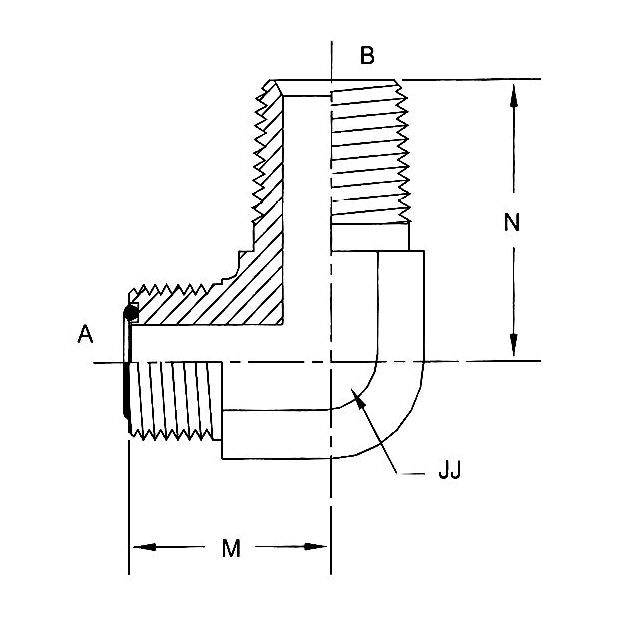

MFS-MP 90 Elbow

Variations (29)

FS2501-04-02-FG

$7.82

Attribute: FS2501-04-02-FG (04MFS-02MP 90 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD1/8-27
A DRILL0.172
B DRILL0.188
M LGTH0.85
N LGTH0.80
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2501-04-04-FG

$8.52

Attribute: FS2501-04-04-FG (04MFS-04MP 90 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD1/4-18
A DRILL0.172
B DRILL0.281
M LGTH0.85
N LGTH1.12
JJ FLATS0.562
MATERIALSTEEL FORGED

FS2501-04-04-SS

$162.64

Attribute: FS2501-04-04-SS (04MFS-04MP 90 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD1/4-18
A DRILL0.172
B DRILL0.281
M LGTH0.85
N LGTH1.12
JJ FLATS0.562
MATERIALSTAINLESS STEEL

FS2501-04-06-FG

$9.65

Attribute: FS2501-04-06-FG (04MFS-06MP 90 E...)

Stock Status: True

TUBE O.D.1/4
A THREAD9/16-18
B THREAD3/8-18
A DRILL0.177
B DRILL0.406
M LGTH0.970
N LGTH1.220
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-06-02-FG

$21.37

Attribute: FS2501-06-02-FG (06MFS-02MP 90 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD1/8-27
A DRILL0.264
B DRILL0.188
M LGTH0.98
N LGTH0.90
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-06-04-FG

$11.52

Attribute: FS2501-06-04-FG (06MFS-04MP 90 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD1/4-18
A DRILL0.264
B DRILL0.281
M LGTH0.98
N LGTH1.09
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-06-06-FG

$13.93

Attribute: FS2501-06-06-FG (06MFS-06MP 90 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD3/8-18
A DRILL0.264
B DRILL0.406
M LGTH0.980
N LGTH1.220
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-06-06-SS

$79.98

Attribute: FS2501-06-06-SS (06MFS-06MP 90 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD3/8-18
A DRILL0.264
B DRILL0.406
M LGTH0.98
N LGTH1.22
JJ FLATS0.750
MATERIALSTEEL FACE SEAL

FS2501-06-08-FG

$13.83

Attribute: FS2501-06-08-FG (06MFS-08MP 90 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD1/2-14
A DRILL0.264
B DRILL0.531
M LGTH1.150
N LGTH1.470
JJ FLATS0.875
MATERIALSTEEL FORGED

FS2501-06-08-SS

$76.10

Attribute: FS2501-06-08-SS (06MFS-08MP 90 E...)

Stock Status: True

TUBE O.D.3/8
A THREAD11/16-16
B THREAD1/2-14
A DRILL0.264
B DRILL0.531
M LGTH1.15
N LGTH1.47
JJ FLATS0.875
MATERIALSTEEL FACE SEAL

FS2501-08-04-FG

$14.13

Attribute: FS2501-08-04-FG (08MFS-04MP 90 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD1/4-18
A DRILL0.378
B DRILL0.281
M LGTH1.10
N LGTH1.22
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-08-06-FG

$15.60

Attribute: FS2501-08-06-FG (08MFS-06MP 90 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD3/8-18
A DRILL0.378
B DRILL0.406
M LGTH1.10
N LGTH1.22
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-08-06-SS

$231.01

Attribute: FS2501-08-06-SS (08MFS-06MP 90 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD3/8-18
A DRILL0.378
B DRILL0.406
M LGTH1.10
N LGTH1.22
JJ FLATS0.750
MATERIALSTEEL FORGED

FS2501-08-08-FG

$16.69

Attribute: FS2501-08-08-FG (08MFS-08MP 90 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD1/2-14
A DRILL0.378
B DRILL0.531
M LGTH1.10
N LGTH1.47
JJ FLATS0.875
MATERIALSTEEL FORGED

FS2501-08-08-SS

$107.11

Attribute: FS2501-08-08-SS (08MFS-08MP 90 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD1/2-14
A DRILL0.378
B DRILL0.531
M LGTH1.10
N LGTH1.47
JJ FLATS0.875
MATERIALSTAINLESS STEEL

FS2501-08-12-FG

$22.74

Attribute: FS2501-08-12-FG (08MFS-12MP 90 E...)

Stock Status: True

TUBE O.D.1/2
A THREAD13/16-16
B THREAD3/4-14
A DRILL0.378
B DRILL0.719
M LGTH1.320
N LGTH1.590
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2501-10-06-FG

$23.53

Attribute: FS2501-10-06-FG (10MFS-06MP 90 E...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD3/8-18
A DRILL0.484
B DRILL0.406
M LGTH1.310
N LGTH1.400
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2501-10-08-FG

$23.58

Attribute: FS2501-10-08-FG (10MFS-08MP 90 E...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD1/2-14
A DRILL0.484
B DRILL0.531
M LGTH1.310
N LGTH1.470
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2501-10-12-FG

$22.40

Attribute: FS2501-10-12-FG (10MFS-12MP 90 E...)

Stock Status: True

TUBE O.D.5/8
A THREAD1-14
B THREAD3/4-14
A DRILL0.484
B DRILL0.719
M LGTH1.31
N LGTH1.59
JJ FLATS1.062
MATERIALSTEEL FORGED

FS2501-12-08-FG

$24.61

Attribute: FS2501-12-08-FG (12MFS-08MP 90 E...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD1/2-14
A DRILL0.609
B DRILL0.531
M LGTH1.470
N LGTH1.590
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2501-12-12-FG

$25.40

Attribute: FS2501-12-12-FG (12MFS-12MP 90 E...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD3/4-14
A DRILL0.609
B DRILL0.719
M LGTH1.470
N LGTH1.590
JJ FLATS1.188
MATERIALSTEEL FORGED

FS2501-12-16-FG

$38.10

Attribute: FS2501-12-16-FG (12MFS-16MP 90 E...)

Stock Status: True

TUBE O.D.3/4
A THREAD1-3/16-12
B THREAD1-11-1/2
A DRILL0.609
B DRILL0.938
M LGTH1.620
N LGTH1.970
JJ FLATS1.312
MATERIALSTEEL FORGED

FS2501-16-12-FG

$36.13

Attribute: FS2501-16-12-FG (16MFS-12MP 90 E...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD3/4-14
A DRILL0.811
B DRILL0.719
M LGTH1.64
N LGTH1.78
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2501-16-16-FG

$39.08

Attribute: FS2501-16-16-FG (16MFS-16MP 90 E...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD1-11-1/2
A DRILL0.811
B DRILL0.938
M LGTH1.64
N LGTH1.97
JJ FLATS1.438
MATERIALSTEEL FORGED

FS2501-16-16-SS

$448.07

Attribute: FS2501-16-16-SS (16MFS-16MP 90 E...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD1-11-1/2
A DRILL0.811
B DRILL0.938
M LGTH1.64
N LGTH1.97
JJ FLATS1.438
MATERIALSTEEL FACE SEAL

FS2501-16-20-FG

$142.89

Attribute: FS2501-16-20-FG (16MFS-20MP 90 E...)

Stock Status: True

TUBE O.D.1
A THREAD1-7/16-12
B THREAD1-1/4-11-1/2
A DRILL0.811
B DRILL1.250
M LGTH1.760
N LGTH2.380
JJ FLATS1.625
MATERIALSTEEL FORGED

FS2501-20-16-FG

$77.57

Attribute: FS2501-20-16-FG (20MFS-16MP 90 E...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-11/16-12
B THREAD1-11-1/2
A DRILL1.024
B DRILL0.938
M LGTH1.760
N LGTH2.350
JJ FLATS1.625
MATERIALSTEEL FORGED

FS2501-20-20-FG

$97.86

Attribute: FS2501-20-20-FG (20MFS-20MP 90 E...)

Stock Status: True

TUBE O.D.1-1/4
A THREAD1-11/16-12
B THREAD1-1/4-11-1/2
A DRILL1.024
B DRILL1.250
M LGTH1.76
N LGTH2.38
JJ FLATS1.625
MATERIALSTEEL FORGED

FS2501-24-24-FG

$118.08

Attribute: FS2501-24-24-FG (24MFS-24MP 90 E...)

Stock Status: True

TUBE O.D.1-1/2
A THREAD2-12
B THREAD1-1/2-11-1/2
A DRILL1.260
B DRILL1.500
M LGTH1.920
N LGTH2.640
JJ FLATS1.875
MATERIALSTEEL FORGED

General Attributes

Connections NPT, Face Seal
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
