O-Ring Face Seal Fittings

FS2500-FG

Scraped 2026-02-15 08:27:16

Description

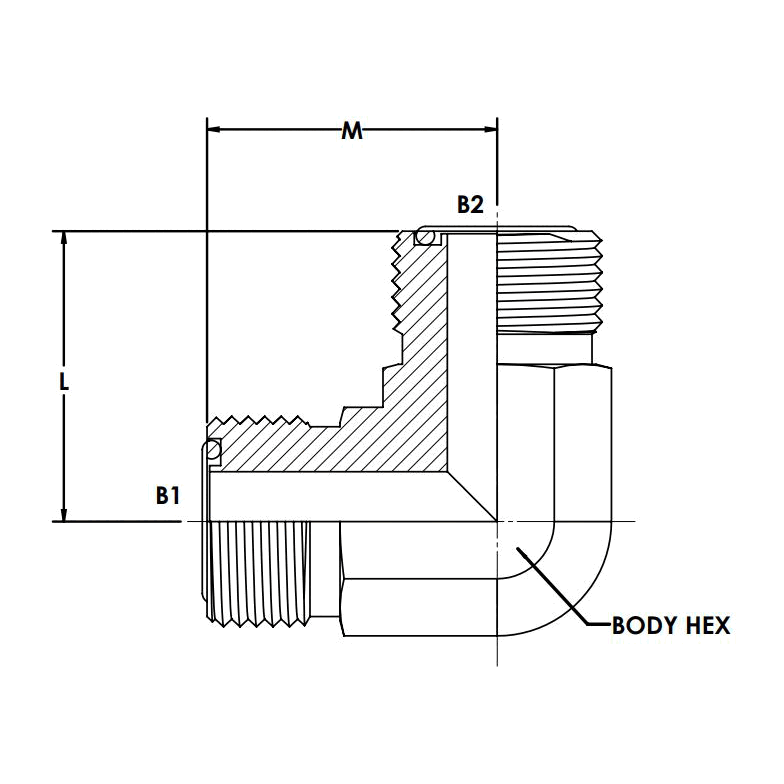

MFS-MFS 90 Elbow

Variations (17)

FS2500-04-04-FG

$7.44

Attribute: FS2500-04-04-FG (04MFS-04MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1/4
A2 TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	9/16-18
A1 DRILL	0.172
A2 DRILL	0.172
M1 LGTH	0.85
M2 LGTH	0.85
JJ FLATS	0.562
MATERIAL	STEEL FORGED

FS2500-04-04-SS

$115.28

Attribute: FS2500-04-04-SS (04MFS-04MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1/4
A2 TUBE O.D.	1/4
A1 THREAD	9/16-18
A2 THREAD	9/16-18
A1 DRILL	0.172
A2 DRILL	0.172
M1 LGTH	0.850
M2 LGTH	0.850
JJ FLATS	0.562
MATERIAL	STAINLESS STEEL

FS2500-06-06-FG

$12.40

Attribute: FS2500-06-06-FG (06MFS-06MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	3/8
A2 TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	11/16-16
A1 DRILL	0.264
A2 DRILL	0.264
M1 LGTH	0.98
M2 LGTH	0.98
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS2500-06-06-SS

$88.11

Attribute: FS2500-06-06-SS (06MFS-06MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	3/8
A2 TUBE O.D.	3/8
A1 THREAD	11/16-16
A2 THREAD	11/16-16
A1 DRILL	0.264
A2 DRILL	0.264
M1 LGTH	0.98
M2 LGTH	0.98
JJ FLATS	0.750
MATERIAL	STAINLESS STEEL

FS2500-08-08-FG

$15.80

Attribute: FS2500-08-08-FG (08MFS-08MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1/2
A2 TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	13/16-16
A1 DRILL	0.378
A2 DRILL	0.378
M1 LGTH	1.10
M2 LGTH	1.10
JJ FLATS	0.750
MATERIAL	STEEL FORGED

FS2500-08-08-SS

$112.53

Attribute: FS2500-08-08-SS (08MFS-08MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1/2
A2 TUBE O.D.	1/2
A1 THREAD	13/16-16
A2 THREAD	13/16-16
A1 DRILL	0.378
A2 DRILL	0.378
M1 LGTH	1.10
M2 LGTH	1.10
JJ FLATS	0.750
MATERIAL	STAINLESS STEEL

FS2500-10-10-FG

$18.56

Attribute: FS2500-10-10-FG (10MFS-10MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	5/8
A2 TUBE O.D.	5/8
A1 THREAD	1-14
A2 THREAD	1-14
A1 DRILL	0.484
A2 DRILL	0.484
M1 LGTH	1.31
M2 LGTH	1.31
JJ FLATS	1.062
MATERIAL	STEEL FORGED

FS2500-12-08-FG

$24.67

Attribute: FS2500-12-08-FG (12MFS-08MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	3/4
A2 TUBE O.D.	1/2
A1 THREAD	1-3/16-12
A2 THREAD	13/16-16
A1 DRILL	0.609
A2 DRILL	0.378
M1 LGTH	1.47
M2 LGTH	1.32
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS2500-12-12-FG

$27.86

Attribute: FS2500-12-12-FG (12MFS-12MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	3/4
A2 TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	1-3/16-12
A1 DRILL	0.609
A2 DRILL	0.609
M1 LGTH	1.47
M2 LGTH	1.47
JJ FLATS	1.188
MATERIAL	STEEL FORGED

FS2500-12-12-SS

$408.46

Attribute: FS2500-12-12-SS (12MFS-12MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	3/4
A2 TUBE O.D.	3/4
A1 THREAD	1-3/16-12
A2 THREAD	1-3/16-12
A1 DRILL	0.609
A2 DRILL	0.609
M1 LGTH	1.47
M2 LGTH	1.47
JJ FLATS	1.188
MATERIAL	STEEL FACE SEAL

FS2500-16-12-FG

$29.49

Attribute: FS2500-16-12-FG (16MFS-12MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1
A2 TUBE O.D.	3/4
A1 THREAD	1-7/16-12
A2 THREAD	1-3/16-12
A1 DRILL	0.811
A2 DRILL	0.609
M1 LGTH	1.64
M2 LGTH	1.62
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS2500-16-16-FG

$43.77

Attribute: FS2500-16-16-FG (16MFS-16MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1
A2 TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-7/16-12
A1 DRILL	0.811
A2 DRILL	0.811
M1 LGTH	1.64
M2 LGTH	1.64
JJ FLATS	1.438
MATERIAL	STEEL FORGED

FS2500-16-16-SS

$246.47

Attribute: FS2500-16-16-SS (16MFS-16MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1
A2 TUBE O.D.	1
A1 THREAD	1-7/16-12
A2 THREAD	1-7/16-12
A1 DRILL	0.811
A2 DRILL	0.811
M1 LGTH	1.64
M2 LGTH	1.64
JJ FLATS	1.438
MATERIAL	STEEL FACE SEAL

FS2500-20-16-FG

$62.41

Attribute: FS2500-20-16-FG (20MFS-16MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1-1/4
A2 TUBE O.D.	1
A1 THREAD	1-11/16-12
A2 THREAD	1-7/16-12
A1 DRILL	1.024
A2 DRILL	0.807
M1 LGTH	1.750
M2 LGTH	1.750
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS2500-20-20-FG

$148.56

Attribute: FS2500-20-20-FG (20MFS-20MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1-1/4
A2 TUBE O.D.	1-1/4
A1 THREAD	1-11/16-12
A2 THREAD	1-11/16-12
A1 DRILL	1.024
A2 DRILL	1.024
M1 LGTH	1.76
M2 LGTH	1.76
JJ FLATS	1.625
MATERIAL	STEEL FORGED

FS2500-24-20-FG

$98.40

Attribute: FS2500-24-20-FG (24MFS-20MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1-1/2
A2 TUBE O.D.	1-1/4
A1 THREAD	2-12
A2 THREAD	1-11/16-12
A1 DRILL	1.260
A2 DRILL	1.024
M1 LGTH	1.92
M2 LGTH	1.92
JJ FLATS	1.875
MATERIAL	STEEL FORGED

FS2500-24-24-FG

$143.05

Attribute: FS2500-24-24-FG (24MFS-24MFS 90 ...)

Stock Status: True

A1 TUBE O.D.	1-1/2
A2 TUBE O.D.	1-1/2
A1 THREAD	2-12
A2 THREAD	2-12
A1 DRILL	1.260
A2 DRILL	1.260
M1 LGTH	1.92
M2 LGTH	1.92
JJ FLATS	1.875
MATERIAL	STEEL FORGED

General Attributes

Connections	Face Seal
Shape	Elbow
