O-Ring Face Seal Fittings

FS0406

Scraped 2026-02-15 08:27:18

Description

Description

BORE-MFS Bulkhead

Variations (2)

FS0406-08-08

$173.03

Attribute: FS0406-08-08 (08Bore-08MFS Bulkh...)

Stock Status: True

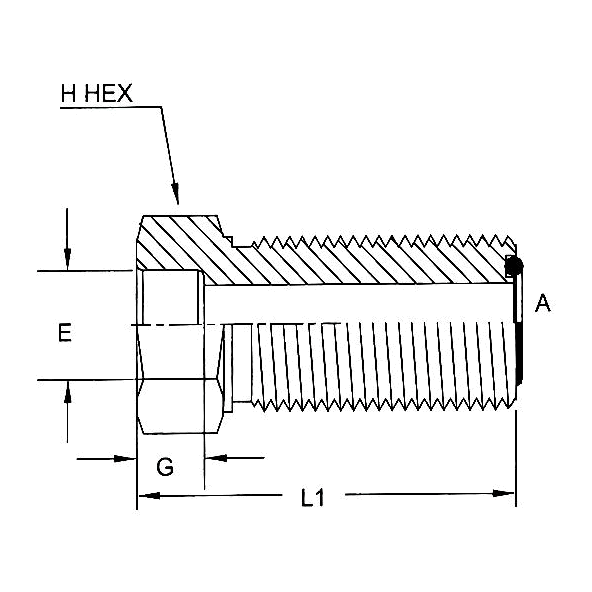

E* BORE0.506
A THREAD13/16-16
A DRILL0.378
G DEPTH0.330
L1 LGTH1.91
H HEX0.875
MATERIALSTEEL FACE SEAL

FS0406-10-08

$20.73

Attribute: FS0406-10-08 (10Bore-08MFS Bulkh...)

Stock Status: True

E* BORE0.631
A THREAD13/16-16
A DRILL0.378
G DEPTH0.330
L1 LGTH1.91
H HEX1.062
MATERIALSTEEL FACE SEAL

General Attributes

Connections Face Seal, Bore
Shape Straight

PDF Documents

Download CAD and Drawings Open PDF
