FS0403

FS0403-04-04

$4.87

Attribute: FS0403-04-04 (04Bore-04MFS Strai...)

Stock Status: True

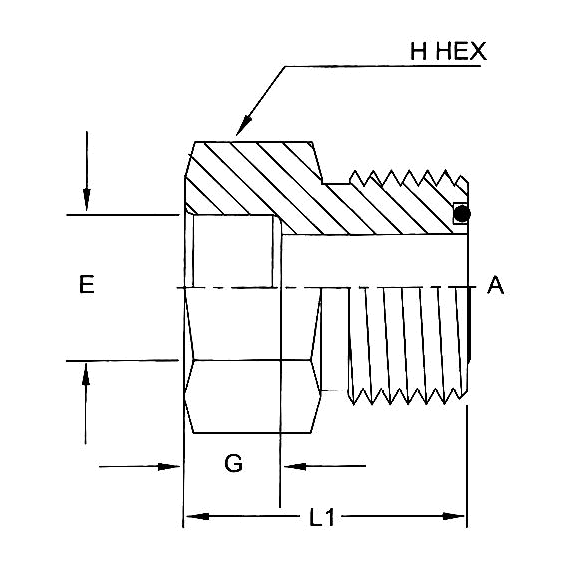

E* BORE	0.256
A THREAD	9/16-18
A DRILL	0.172
G* DEPTH	0.330
L1 LGTH	0.86
H HEX	0.625
MATERIAL	STEEL FACE SEAL

FS0403-04-06

$5.67

Attribute: FS0403-04-06 (04Bore-06MFS Strai...)

Stock Status: True

E* BORE	0.256
A THREAD	11/16-16
A DRILL	0.172
G* DEPTH	0.330
L1 LGTH	0.900
H HEX	0.750
MATERIAL	STEEL FACE SEAL

FS0403-06-04

$17.27

Attribute: FS0403-06-04 (06Bore-04MFS Strai...)

Stock Status: True

E* BORE	0.381
A THREAD	9/16-18
A DRILL	0.172
G* DEPTH	0.330
L1 LGTH	0.86
H HEX	0.750
MATERIAL	STEEL FACE SEAL

FS0403-06-06

$8.02

Attribute: FS0403-06-06 (06Bore-06MFS Strai...)

Stock Status: True

E* BORE	0.381
A THREAD	11/16-16
A DRILL	0.264
G* DEPTH	0.330
L1 LGTH	0.900
H HEX	0.750
MATERIAL	STEEL FACE SEAL

FS0403-06-08

$12.95

Attribute: FS0403-06-08 (06Bore-08MFS Strai...)

Stock Status: True

E* BORE	0.381
A THREAD	13/16-16
A DRILL	0.297
G* DEPTH	0.330
L1 LGTH	0.970
H HEX	0.875
MATERIAL	STEEL FACE SEAL

FS0403-08-06

$21.41

Attribute: FS0403-08-06 (08Bore-06MFS Strai...)

Stock Status: True

E* BORE	0.506
A THREAD	11/16-16
A DRILL	0.264
G* DEPTH	0.330
L1 LGTH	0.900
H HEX	0.875
MATERIAL	STEEL FACE SEAL

FS0403-08-08

$12.16

Attribute: FS0403-08-08 (08Bore-08MFS Strai...)

Stock Status: True

E* BORE	0.506
A THREAD	13/16-16
A DRILL	0.378
G* DEPTH	0.330
L1 LGTH	0.970
H HEX	0.875
MATERIAL	STEEL FACE SEAL

FS0403-08-08-SS

$134.43

Attribute: FS0403-08-08-SS (08Bore-08MFS St...)

Stock Status: True

E* BORE	0.506
A THREAD	13/16-16
A DRILL	0.378
G* DEPTH	0.330
L1 LGTH	0.970
H HEX	0.875
MATERIAL	STAINLESS STEEL

FS0403-08-10

$23.38

Attribute: FS0403-08-10 (08Bore-10MFS Strai...)

Stock Status: True

E* BORE	0.506
A THREAD	1-14
A DRILL	0.391
G* DEPTH	0.330
L1 LGTH	1.070
H HEX	1.062
MATERIAL	STEEL FACE SEAL

FS0403-10-08

$25.94

Attribute: FS0403-10-08 (10Bore-08MFS Strai...)

Stock Status: True

E* BORE	0.631
A THREAD	13/16-16
A DRILL	0.378
G* DEPTH	0.330
L1 LGTH	0.970
H HEX	1.062
MATERIAL	STEEL FACE SEAL

FS0403-10-10

$15.70

Attribute: FS0403-10-10 (10Bore-10MFS Strai...)

Stock Status: True

E* BORE	0.631
A THREAD	1-14
A DRILL	0.484
G* DEPTH	0.330
L1 LGTH	1.07
H HEX	1.062
MATERIAL	STEEL FACE SEAL

FS0403-10-10-B

$91.59

Attribute: FS0403-10-10-B (10Bore-10MFS Str...)

Stock Status: True

E* BORE	0.631
A THREAD	1-14
A DRILL	0.484
G* DEPTH	0.330
L1 LGTH	1.07
H HEX	1.062
MATERIAL	STEEL FACE SEAL

FS0403-10-10-SS

$126.85

Attribute: FS0403-10-10-SS (10Bore-10MFS St...)

Stock Status: True

E* BORE	0.631
A THREAD	1-14
A DRILL	0.484
G* DEPTH	0.330
L1 LGTH	1.07
H HEX	1.062
MATERIAL	STAINLESS STEEL

FS0403-10-12

$15.40

Attribute: FS0403-10-12 (10Bore-12MFS Strai...)

Stock Status: True

E* BORE	0.631
A THREAD	1-3/16-12
A DRILL	0.484
G* DEPTH	0.330
L1 LGTH	1.160
H HEX	1.250
MATERIAL	STEEL FACE SEAL

FS0403-12-08

$20.87

Attribute: FS0403-12-08 (12Bore-08MFS Strai...)

Stock Status: True

E* BORE	0.757
A THREAD	13/16-16
A DRILL	0.378
G* DEPTH	0.490
L1 LGTH	1.130
H HEX	1.250
MATERIAL	STEEL FACE SEAL

FS0403-12-10

$23.38

Attribute: FS0403-12-10 (12Bore-10MFS Strai...)

Stock Status: True

E* BORE	0.757
A THREAD	1-14
A DRILL	0.484
G* DEPTH	0.490
L1 LGTH	1.23
H HEX	1.250
MATERIAL	STEEL FACE SEAL

FS0403-12-12

$19.44

Attribute: FS0403-12-12 (12Bore-12MFS Strai...)

Stock Status: True

E* BORE	0.757
A THREAD	1-3/16-12
A DRILL	0.609
G* DEPTH	0.490
L1 LGTH	1.32
H HEX	1.250
MATERIAL	STEEL FACE SEAL

FS0403-12-16

$43.61

Attribute: FS0403-12-16 (12Bore-16MFS Strai...)

Stock Status: True

E* BORE	0.757
A THREAD	1-7/16-12
A DRILL	0.609
G* DEPTH	0.490
L1 LGTH	1.460
H HEX	1.500
MATERIAL	STEEL FACE SEAL

FS0403-16-12

$29.49

Attribute: FS0403-16-12 (16Bore-12MFS Strai...)

Stock Status: True

E* BORE	1.007
A THREAD	1-3/16-12
A DRILL	0.609
G* DEPTH	0.550
L1 LGTH	1.380
H HEX	1.500
MATERIAL	STEEL FACE SEAL

FS0403-16-12-SS

$230.13

Attribute: FS0403-16-12-SS (16Bore-12MFS St...)

Stock Status: True

E* BORE	1.007
A THREAD	1-3/16-12
A DRILL	0.609
G* DEPTH	0.550
L1 LGTH	1.380
H HEX	1.500
MATERIAL	STAINLESS STEEL

FS0403-16-16

$26.34

Attribute: FS0403-16-16 (16Bore-16MFS Strai...)

Stock Status: True

E* BORE	1.007
A THREAD	1-7/16-12
A DRILL	0.811
G* DEPTH	0.550
L1 LGTH	1.520
H HEX	1.500
MATERIAL	STEEL FACE SEAL

FS0403-16-16-SS

$290.23

Attribute: FS0403-16-16-SS (16Bore-16MFS St...)

Stock Status: True

E* BORE	1.007
A THREAD	1-7/16-12
A DRILL	0.811
G* DEPTH	0.550
L1 LGTH	1.52
H HEX	1.500
MATERIAL	STAINLESS STEEL

FS0403-16-20

$179.87

Attribute: FS0403-16-20 (16Bore-20MFS Strai...)

Stock Status: True

E* BORE	1.007
A THREAD	1-11/16-12
A DRILL	1.024
G* DEPTH	0.550
L1 LGTH	1.52
H HEX	1.750
MATERIAL	STEEL FACE SEAL

FS0403-16-20-SS

$514.73

Attribute: FS0403-16-20-SS (16Bore-20MFS St...)

Stock Status: True

E* BORE	1.007
A THREAD	1-11/16-12
A DRILL	1.024
G* DEPTH	0.550
L1 LGTH	1.52
H HEX	1.750
MATERIAL	STAINLESS STEEL

FS0403-20-16

$34.36

Attribute: FS0403-20-16 (20Bore-16MFS Strai...)

Stock Status: True

E* BORE	1.258
A THREAD	1-7/16-12
A DRILL	0.811
G* DEPTH	0.550
L1 LGTH	1.520
H HEX	1.750
MATERIAL	STEEL

FS0403-20-20

$30.76

Attribute: FS0403-20-20 (20Bore-20MFS Strai...)

Stock Status: True

E* BORE	1.258
A THREAD	1-11/16-12
A DRILL	1.024
G* DEPTH	0.550
L1 LGTH	1.520
H HEX	1.750
MATERIAL	STEEL FACE SEAL

FS0403-20-20-SS

$558.60

Attribute: FS0403-20-20-SS (20Bore-20MFS St...)

Stock Status: True

E* BORE	1.258
A THREAD	1-11/16-12
A DRILL	1.024
G* DEPTH	0.550
L1 LGTH	1.52
H HEX	1.750
MATERIAL	STAINLESS STEEL

FS0403-20-24

$121.01

Attribute: FS0403-20-24 (20Bore-24MFS Strai...)

Stock Status: True

E* BORE	1.258
A THREAD	2-12
A DRILL	1.260
G* DEPTH	0.550
L1 LGTH	1.52
H HEX	2.125
MATERIAL	STEEL FACE SEAL

FS0403-24-20

$180.95

Attribute: FS0403-24-20 (24Bore-20MFS Strai...)

Stock Status: True

E* BORE	1.508
A THREAD	1-11/16-12
A DRILL	1.024
G* DEPTH	0.550
L1 LGTH	1.520
H HEX	2.000
MATERIAL	STEEL FACE SEAL

FS0403-24-24

$190.74

Attribute: FS0403-24-24 (24Bore-24MFS Strai...)

Stock Status: True

E* BORE	1.508
A THREAD	2-12
A DRILL	1.260
G* DEPTH	0.550
L1 LGTH	1.52
H HEX	2.125
MATERIAL	STEEL FACE SEAL

Connections	Face Seal, Bore
Shape	Straight

ID	10156455
Category	O-Ring Face Seal Fittings
