Description
Nut
Description
Variations (17)
FS0318-04
$3.70Attribute: FS0318-04 (04FS Tube Nut)
Stock Status: True

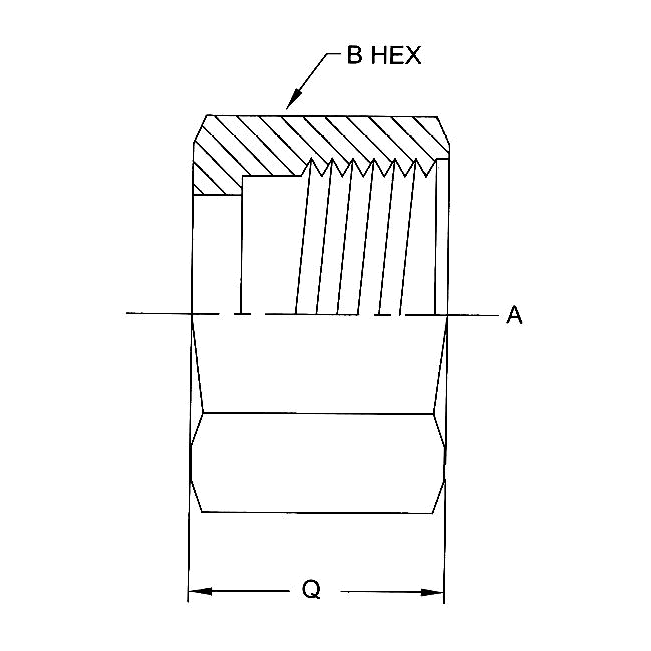

| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B HEX | 0.687 |
| Q WIDTH | 0.580 |
| MATERIAL | STEEL FACE SEAL |
FS0318-04-SS
$42.38Attribute: FS0318-04-SS (04FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 1/4 |
|---|---|
| A THREAD | 9/16-18 |
| B HEX | 0.687 |
| Q WIDTH | 0.580 |
| MATERIAL | STAINLESS STEEL |
FS0318-06
$2.86Attribute: FS0318-06 (06FS Tube Nut)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B HEX | 0.812 |
| Q WIDTH | 0.670 |
| MATERIAL | STEEL FACE SEAL |
FS0318-06-SS
$58.93Attribute: FS0318-06-SS (06FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 3/8 |
|---|---|
| A THREAD | 11/16-16 |
| B HEX | 0.812 |
| Q WIDTH | 0.670 |
| MATERIAL | STAINLESS STEEL |
FS0318-08
$4.28Attribute: FS0318-08 (08FS Tube Nut)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B HEX | 0.938 |
| Q WIDTH | 0.827 |
| MATERIAL | STEEL FACE SEAL |
FS0318-08-SS
$72.76Attribute: FS0318-08-SS (08FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 1/2 |
|---|---|
| A THREAD | 13/16-16 |
| B HEX | 0.938 |
| Q WIDTH | 0.827 |
| MATERIAL | STAINLESS STEEL |
FS0318-10
$6.35Attribute: FS0318-10 (10FS Tube Nut)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B HEX | 1.125 |
| Q WIDTH | 0.925 |
| MATERIAL | STEEL FACE SEAL |
FS0318-10-SS
$142.99Attribute: FS0318-10-SS (10FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 5/8 |
|---|---|
| A THREAD | 1-14 |
| B HEX | 1.125 |
| Q WIDTH | 0.925 |
| MATERIAL | STAINLESS STEEL |
FS0318-12
$9.31Attribute: FS0318-12 (12FS Tube Nut)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1-3/16-12 |
| B HEX | 1.375 |
| Q WIDTH | 1.024 |
| MATERIAL | STEEL FACE SEAL |
FS0318-12-SS
$132.07Attribute: FS0318-12-SS (12FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 3/4 |
|---|---|
| A THREAD | 1 3/16-12 |
| B HEX | 1.375 |
| Q WIDTH | 1.024 |
| MATERIAL | STAINLESS STEEL |
FS0318-14-SS
$261.68Attribute: FS0318-14-SS (14FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 7/8 |
|---|---|
| A THREAD | 1-5/16-12 |
| B HEX | 1.500 |
| Q WIDTH | 1.043 |
| MATERIAL | STAINLESS STEEL |
FS0318-16
$12.26Attribute: FS0318-16 (16FS Tube Nut)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1-7/16-12 |
| B HEX | 1.625 |
| Q WIDTH | 1.095 |
| MATERIAL | STEEL FACE SEAL |
FS0318-16-SS
$203.35Attribute: FS0318-16-SS (16FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 1 |
|---|---|
| A THREAD | 1 7/16-12 |
| B HEX | 1.625 |
| Q WIDTH | 1.095 |
| MATERIAL | STAINLESS STEEL |
FS0318-20
$17.57Attribute: FS0318-20 (20FS Tube Nut)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1 11/16-12 |
| B HEX | 1.875 |
| Q WIDTH | 1.095 |
| MATERIAL | STEEL FACE SEAL |
FS0318-20-SS
$370.95Attribute: FS0318-20-SS (20FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 1-1/4 |
|---|---|
| A THREAD | 1 11/16-12 |
| B HEX | 1.875 |
| Q WIDTH | 1.095 |
| MATERIAL | STAINLESS STEEL |
FS0318-24
$51.83Attribute: FS0318-24 (24FS Tube Nut)
Stock Status: True
| TUBE O.D. | 1-1/2 |
|---|---|
| A THREAD | 2-12 |
| B HEX | 2.250 |
| Q WIDTH | 1.095 |
| MATERIAL | STEEL FACE SEAL |
FS0318-24-SS
$451.43Attribute: FS0318-24-SS (24FS Tube Nut Stnl...)
Stock Status: True
| TUBE O.D. | 1-1/2 |
|---|---|
| A THREAD | 2-12 |
| B HEX | 2.250 |
| Q WIDTH | 1.095 |
| MATERIAL | STAINLESS STEEL |
General Attributes
| Connections | Face Seal |
|---|---|
| Shape | Nut |
PDF Documents
Download CAD and Drawings
Open PDF
