C2706

Attribute: C2706-04-04 (04MP-04BT Blkhd Str...)

Stock Status: True

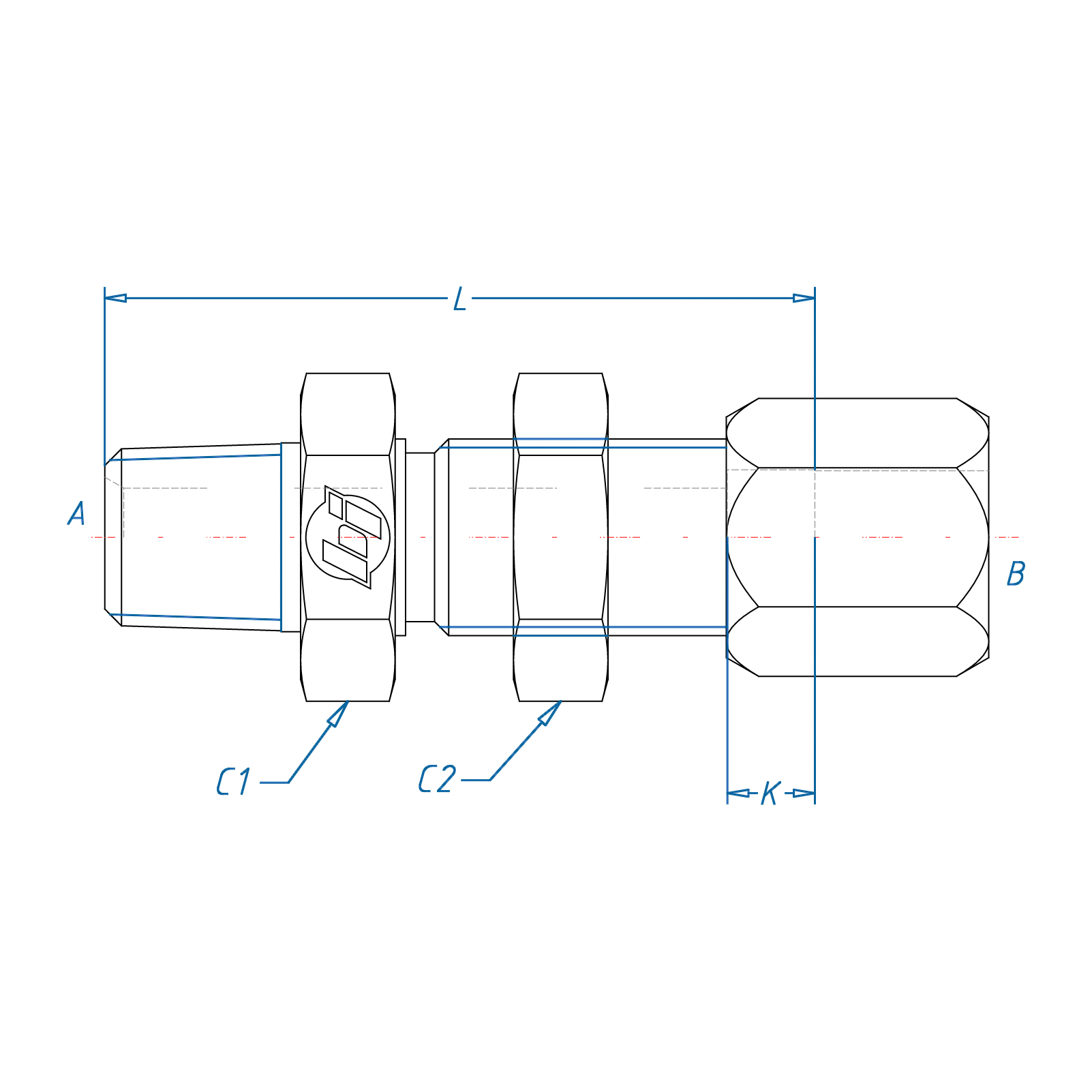

TUBE O.D.	1/4
A NPTF	1/4-18
B THREAD	7/16-20
A DRILL	0.281
B DRILL	0.203
L LGTH	2.080
K DEPTH	0.234
C1 HEX	0.688
C2 HEX	0.750
MATERIAL	STEEL COMPRESSION

Attribute: C2706-04-04-SS (04MP-04BT Blkhd ...)

Stock Status: True

TUBE O.D.	1/4
A NPTF	1/4-18
B THREAD	7/16-20
A DRILL	0.281
B DRILL	0.203
L LGTH	1.98
K DEPTH	0.234
C1 HEX	0.688
C2 HEX	0.688
MATERIAL	STAINLESS STEEL

Attribute: C2706-04-06-SS (04MP-06BT Blkhd ...)

Stock Status: True

TUBE O.D.	3/8
A NPTF	1/4-18
B THREAD	9/16-18
A DRILL	0.281
B DRILL	0.281
L LGTH	2.03
K DEPTH	0.250
C1 HEX	0.812
C2 HEX	0.812
MATERIAL	STAINLESS STEEL

Attribute: C2706-06-06-SS (06MP-06BT Blkhd ...)

Stock Status: True

TUBE O.D.	3/8
A NPTF	3/8-18
B THREAD	9/16-18
A DRILL	0.406
B DRILL	0.281
L LGTH	2.03
K DEPTH	0.250
C1 HEX	0.812
C2 HEX	0.812
MATERIAL	STAINLESS STEEL

Attribute: C2706-08-06-SS (08MP-06BT Blkhd ...)

Stock Status: True

TUBE O.D.	3/8
A NPTF	1/2-14
B THREAD	9/16-18
A DRILL	0.531
B DRILL	0.281
L LGTH	2.28
K DEPTH	0.250
C1 HEX	0.875
C2 HEX	0.875
MATERIAL	STAINLESS STEEL

Attribute: C2706-08-08 (08MP-08BT Blkhd Str...)

Stock Status: True

TUBE O.D.	1/2
A NPTF	1/2-14
B THREAD	3/4-16
A DRILL	0.531
B DRILL	0.422
L LGTH	2.42
K DEPTH	0.305
C1 HEX	1.000
C2 HEX	1.000
MATERIAL	STEEL COMPRESSION

Attribute: C2706-08-08-SS (08MP-08BT Blkhd ...)

Stock Status: True

TUBE O.D.	1/2
A NPTF	1/2-14
B THREAD	3/4-16
A DRILL	0.531
B DRILL	0.422
L LGTH	2.42
K DEPTH	0.305
C1 HEX	1.000
C2 HEX	1.000
MATERIAL	STAINLESS STEEL

Attribute: C2706-12-12 (12MP-12BT Blkhd Str...)

Stock Status: True

TUBE O.D.	3/4
A NPTF	3/4-14
B THREAD	1-1/16-12
A DRILL	0.719
B DRILL	0.656
L LGTH	2.74
K DEPTH	0.350
C1 HEX	1.375
C2 HEX	1.375
MATERIAL	STEEL COMPRESSION

Attribute: C2706-16-16 (16MP-16BT Blkhd Str...)

Stock Status: True

TUBE O.D.	1
A NPTF	1-11-1/2
B THREAD	1-5/16-12
A DRILL	0.938
B DRILL	0.875
L LGTH	2.930
K DEPTH	0.415
C1 HEX	1.625
C2 HEX	1.625
MATERIAL	STEEL COMPRESSION
