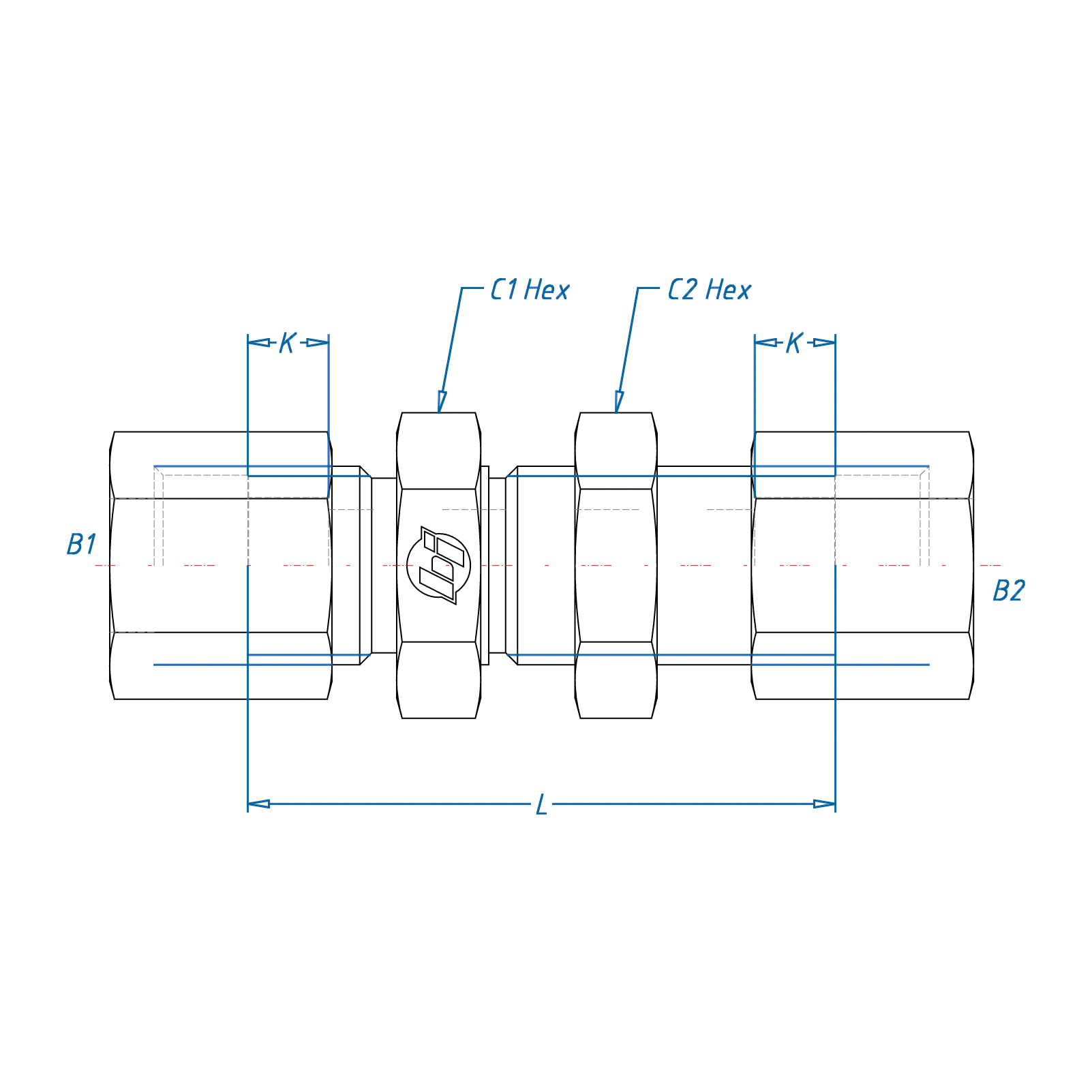

C2700

Attribute: C2700-03-03-SS (03BT-03BT Bulkhe...)

Stock Status: True

TUBE O.D.	3/16
B1 THREAD	3/8-24
A2 THREAD	3/8-24
B1 DRILL	0.125
B2 DRILL	0.125
K DEPTH	0.234
L LGTH	1.800
C1 HEX	0.625
C2 HEX	0.625
MATERIAL	STAINLESS STEEL

Attribute: C2700-04-04 (04BT-04BT Bulkhead ...)

Stock Status: True

TUBE O.D.	1/4
B1 THREAD	7/16-20
A2 THREAD	7/16-20
B1 DRILL	0.203
B2 DRILL	0.203
K DEPTH	0.234
L LGTH	1.89
C1 HEX	0.688
C2 HEX	0.688
MATERIAL	STEEL COMPRESSION

Attribute: C2700-04-04-SS (04BT-04BT Bulkhe...)

Stock Status: True

TUBE O.D.	1/4
B1 THREAD	7/16-20
A2 THREAD	7/16-20
B1 DRILL	0.203
B2 DRILL	0.203
K DEPTH	0.234
L LGTH	1.89
C1 HEX	0.688
C2 HEX	0.688
MATERIAL	STAINLESS STEEL

Attribute: C2700-06-06 (06BT-06BT Bulkhead ...)

Stock Status: True

TUBE O.D.	3/8
B1 THREAD	9/16-18
A2 THREAD	9/16-18
B1 DRILL	0.281
B2 DRILL	0.281
K DEPTH	0.250
L LGTH	1.98
C1 HEX	0.813
C2 HEX	0.812
MATERIAL	STEEL COMPRESSION

Attribute: C2700-06-06-SS (06BT-06BT Bulkhe...)

Stock Status: True

TUBE O.D.	3/8
B1 THREAD	9/16-18
A2 THREAD	9/16-18
B1 DRILL	0.281
B2 DRILL	0.281
K DEPTH	0.250
L LGTH	1.98
C1 HEX	0.813
C2 HEX	0.812
MATERIAL	STAINLESS STEEL

Attribute: C2700-08-08 (08BT-08BT Bulkhead ...)

Stock Status: True

TUBE O.D.	1/2
B1 THREAD	3/4-16
A2 THREAD	3/4-16
B1 DRILL	0.422
B2 DRILL	0.422
K DEPTH	0.305
L LGTH	2.220
C1 HEX	1.000
C2 HEX	1.000
MATERIAL	STEEL COMPRESSION

Attribute: C2700-08-08-SS (08BT-08BT Bulkhe...)

Stock Status: True

TUBE O.D.	1/2
B1 THREAD	3/4-16
A2 THREAD	3/4-16
B1 DRILL	0.422
B2 DRILL	0.422
K DEPTH	0.305
L LGTH	2.220
C1 HEX	1.000
C2 HEX	1.000
MATERIAL	STAINLESS STEEL

Attribute: C2700-10-10-SS (10BT-10BT Bulkhe...)

Stock Status: True

TUBE O.D.	5/8
B1 THREAD	7/8-14
A2 THREAD	7/8-14
B1 DRILL	1.450
B2 DRILL	36.83
K DEPTH	2.480
L LGTH	62.99
C1 HEX	1 1/8
C2 HEX	1.125
MATERIAL	STAINLESS STEEL

Attribute: C2700-12-12 (12BT-12BT Bulkhead ...)

Stock Status: True

TUBE O.D.	3/4
B1 THREAD	1 1/16-12
A2 THREAD	1 1/16-12
B1 DRILL	0.656
B2 DRILL	0.656
K DEPTH	0.350
L LGTH	2.720
C1 HEX	1.375
C2 HEX	1.375
MATERIAL	STEEL COMPRESSION

Attribute: C2700-12-12-SS (12BT-12BT Bulkhe...)

Stock Status: True

TUBE O.D.	3/4
B1 THREAD	1 1/16-12
A2 THREAD	1 1/16-12
B1 DRILL	0.656
B2 DRILL	0.656
K DEPTH	0.350
L LGTH	2.72
C1 HEX	1.375
C2 HEX	1.375
MATERIAL	STAINLESS STEEL

Attribute: C2700-16-16 (16BT-16BT Bulkhead ...)

Stock Status: True

TUBE O.D.	1
B1 THREAD	1 5/16-12
A2 THREAD	1 5/16-12
B1 DRILL	0.875
B2 DRILL	0.875
K DEPTH	0.415
L LGTH	2.72
C1 HEX	1.625
C2 HEX	1.625
MATERIAL	STEEL COMPRESSION

Attribute: C2700-16-16-SS (16BT-16BT Bulkhe...)

Stock Status: True

TUBE O.D.	1
B1 THREAD	1 5/16-12
A2 THREAD	1 5/16-12
B1 DRILL	0.875
B2 DRILL	0.875
K DEPTH	0.415
L LGTH	2.72
C1 HEX	1.625
C2 HEX	1.625
MATERIAL	STAINLESS STEEL
