C2403

C2403-02-02

$44.50

Attribute: C2403-02-02 (02BT-02BT Straight)

Stock Status: True

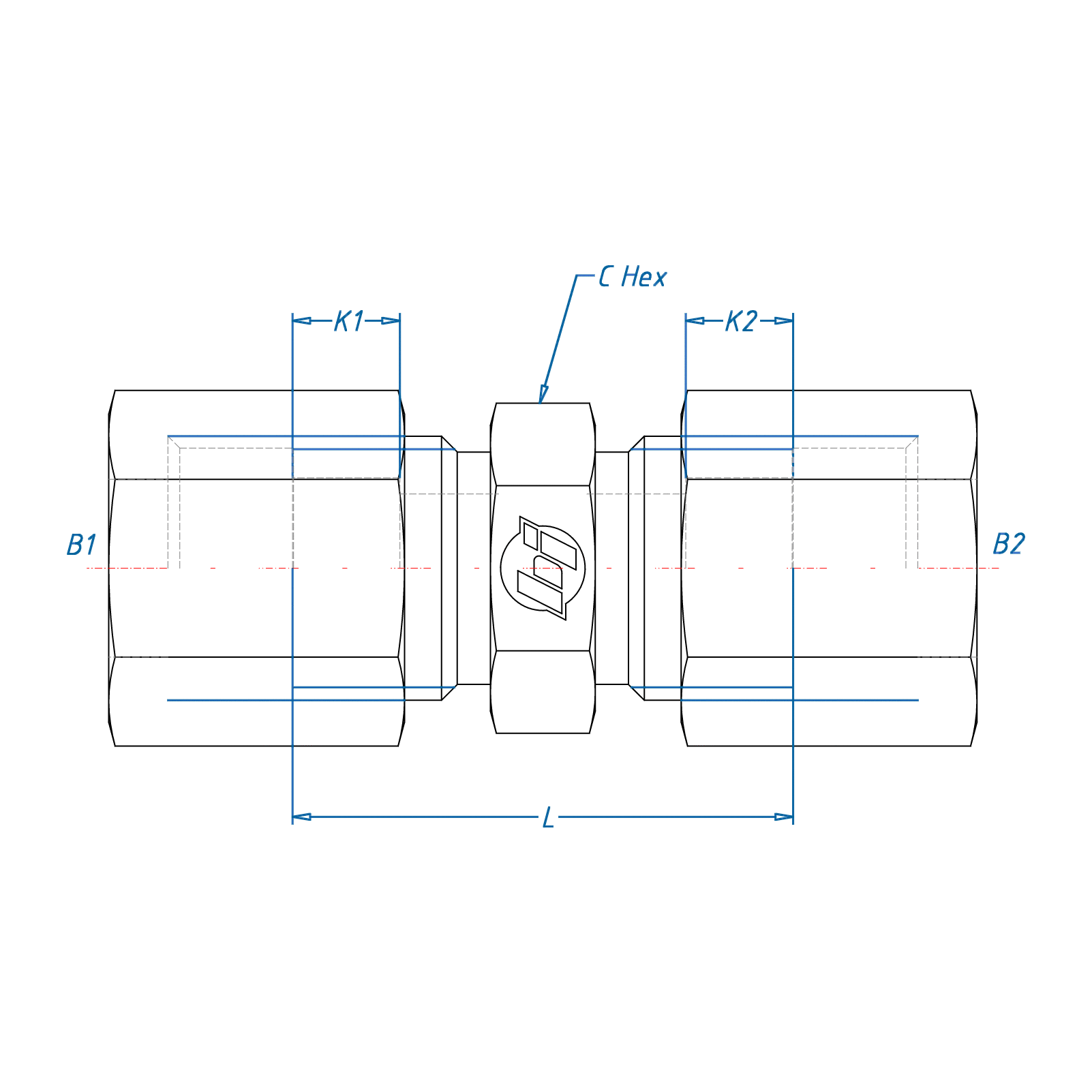

TUBE O.D.	1/8
B1 THREAD	5/16-24
B2 THREAD	5/16-24
B1 DRILL	0.093
B2 DRILL	0.093
L LGTH	1.02
K1 DEPTH	0.188
K2 DEPTH	0.188
C HEX	0.438
MATERIAL	STEEL COMPRESSION

C2403-02-02-SS

$214.42

Attribute: C2403-02-02-SS (02BT-02BT Straig...)

Stock Status: True

TUBE O.D.	1/8
B1 THREAD	5/16-24
B2 THREAD	5/16-24
B1 DRILL	0.093
B2 DRILL	0.093
L LGTH	1.02
K1 DEPTH	0.188
K2 DEPTH	0.188
C HEX	0.438
MATERIAL	STAINLESS STEEL

C2403-03-03

$36.63

Attribute: C2403-03-03 (03BT-03BT Straight)

Stock Status: True

TUBE O.D.	3/16
B1 THREAD	3/8-24
B2 THREAD	3/8-24
B1 DRILL	0.125
B2 DRILL	0.125
L LGTH	1.11
K1 DEPTH	0.234
K2 DEPTH	0.234
C HEX	0.438
MATERIAL	STEEL COMPRESSION

C2403-03-03-SS

$191.68

Attribute: C2403-03-03-SS (03BT-03BT Straig...)

Stock Status: True

TUBE O.D.	3/16
B1 THREAD	3/8-24
B2 THREAD	3/8-24
B1 DRILL	0.125
B2 DRILL	0.125
L LGTH	1.11
K1 DEPTH	0.234
K2 DEPTH	0.234
C HEX	0.438
MATERIAL	STAINLESS STEEL

C2403-04-04

$17.09

Attribute: C2403-04-04 (04BT-04BT Straight)

Stock Status: True

TUBE O.D.	1/4
B1 THREAD	7/16-20
B2 THREAD	7/16-20
B1 DRILL	0.203
B2 DRILL	0.203
L LGTH	1.18
K1 DEPTH	0.234
K2 DEPTH	0.234
C HEX	0.500
MATERIAL	STEEL COMPRESSION

C2403-04-04-SS

$66.79

Attribute: C2403-04-04-SS (04BT-04BT Straig...)

Stock Status: True

TUBE O.D.	1/4
B1 THREAD	7/16-20
B2 THREAD	7/16-20
B1 DRILL	0.203
B2 DRILL	0.203
L LGTH	1.18
K1 DEPTH	0.234
K2 DEPTH	0.234
C HEX	0.500
MATERIAL	STAINLESS STEEL

C2403-05-05

$65.76

Attribute: C2403-05-05 (05BT-05BT Straight)

Stock Status: True

TUBE O.D.	5/16
B1 THREAD	1/2-20
B2 THREAD	1/2-20
B1 DRILL	0.234
B2 DRILL	0.234
L LGTH	1.180
K1 DEPTH	0.250
K2 DEPTH	0.250
C HEX	0.562
MATERIAL	STEEL COMPRESSION

C2403-05-05-SS

$177.45

Attribute: C2403-05-05-SS (05BT-05BT Straig...)

Stock Status: True

TUBE O.D.	5/16
B1 THREAD	1/2-20
B2 THREAD	1/2-20
B1 DRILL	0.234
B2 DRILL	0.234
L LGTH	1.18
K1 DEPTH	0.250
K2 DEPTH	0.250
C HEX	0.562
MATERIAL	STAINLESS STEEL

C2403-06-04

$45.68

Attribute: C2403-06-04 (06BT-04BT Straight)

Stock Status: True

TUBE O.D.	3/8 1/4
B1 THREAD	9/16-18
B2 THREAD	7/16-18
B1 DRILL	0.281
B2 DRILL	0.203
L LGTH	1.220
K1 DEPTH	0.250
K2 DEPTH	0.234
C HEX	0.625
MATERIAL	STEEL COMPRESSION

C2403-06-04-SS

$133.24

Attribute: C2403-06-04-SS (06BT-04BT Straig...)

Stock Status: True

TUBE O.D.	3/8 1/4
B1 THREAD	9/16-18
B2 THREAD	7/16-18
B1 DRILL	0.281
B2 DRILL	0.203
L LGTH	1.22
K1 DEPTH	0.250
K2 DEPTH	0.234
C HEX	0.625
MATERIAL	STAINLESS STEEL

C2403-06-06

$23.73

Attribute: C2403-06-06 (06BT-06BT Straight)

Stock Status: True

TUBE O.D.	3/8
B1 THREAD	9/16-18
B2 THREAD	9/16-18
B1 DRILL	0.281
B2 DRILL	0.281
L LGTH	1.24
K1 DEPTH	0.250
K2 DEPTH	0.250
C HEX	0.625
MATERIAL	STEEL COMPRESSION

C2403-06-06-SS

$111.89

Attribute: C2403-06-06-SS (06BT-06BT Straig...)

Stock Status: True

TUBE O.D.	3/8
B1 THREAD	9/16-18
B2 THREAD	9/16-18
B1 DRILL	0.281
B2 DRILL	0.281
L LGTH	1.24
K1 DEPTH	0.250
K2 DEPTH	0.250
C HEX	0.625
MATERIAL	STAINLESS STEEL

C2403-08-08

$49.82

Attribute: C2403-08-08 (08BT-08BT Straight)

Stock Status: True

TUBE O.D.	1/2
B1 THREAD	3/4-16
B2 THREAD	3/4-16
B1 DRILL	0.422
B2 DRILL	0.422
L LGTH	1.422
K1 DEPTH	0.305
K2 DEPTH	0.305
C HEX	0.813
MATERIAL	STEEL COMPRESSION

C2403-08-08-SS

$156.34

Attribute: C2403-08-08-SS (08BT-08BT Straig...)

Stock Status: True

TUBE O.D.	1/2
B1 THREAD	3/4-16
B2 THREAD	3/4-16
B1 DRILL	0.422
B2 DRILL	0.422
L LGTH	1.42
K1 DEPTH	0.305
K2 DEPTH	0.305
C HEX	0.812
MATERIAL	STAINLESS STEEL

C2403-10-10

$56.80

Attribute: C2403-10-10 (10BT-10BT Straight)

Stock Status: True

TUBE O.D.	5/8
B1 THREAD	7/8-14
B2 THREAD	7/8-14
B1 DRILL	0.500
B2 DRILL	0.500
L LGTH	1.61
K1 DEPTH	0.350
K2 DEPTH	0.350
C HEX	0.937
MATERIAL	STEEL COMPRESSION

C2403-10-10-SS

$220.68

Attribute: C2403-10-10-SS (10BT-10BT Straig...)

Stock Status: True

TUBE O.D.	5/8
B1 THREAD	7/8-14
B2 THREAD	7/8-14
B1 DRILL	0.500
B2 DRILL	0.500
L LGTH	1.61
K1 DEPTH	0.350
K2 DEPTH	0.350
C HEX	0.937
MATERIAL	STAINLESS STEEL

C2403-12-08-SS

$303.71

Attribute: C2403-12-08-SS (12BT-08BT Straig...)

Stock Status: True

TUBE O.D.	3/4
B1 THREAD	1 1/16-12
B2 THREAD	3/4-16
B1 DRILL	0.656
B2 DRILL	0.422
L LGTH	1.690
K1 DEPTH	0.350
K2 DEPTH	0.305
C HEX	1.125
MATERIAL	STAINLESS STEEL

C2403-12-12

$66.69

Attribute: C2403-12-12 (12BT-12BT Straight)

Stock Status: True

TUBE O.D.	3/4
B1 THREAD	1 1/16-12
B2 THREAD	1 1/16-12
B1 DRILL	0.656
B2 DRILL	0.656
L LGTH	1.81
K1 DEPTH	0.350
K2 DEPTH	0.350
C HEX	1.125
MATERIAL	STEEL COMPRESSION

C2403-12-12-SS

$447.55

Attribute: C2403-12-12-SS (12BT-12BT Straig...)

Stock Status: True

TUBE O.D.	3/4
B1 THREAD	1 1/16-12
B2 THREAD	1 1/16-12
B1 DRILL	0.656
B2 DRILL	0.656
L LGTH	1.81
K1 DEPTH	0.350
K2 DEPTH	0.350
C HEX	1.125
MATERIAL	STAINLESS STEEL

C2403-14-14

$255.22

Attribute: C2403-14-14 (14BT-14BT Straight)

Stock Status: True

TUBE O.D.	7/8
B1 THREAD	1 3/16-12
B2 THREAD	1 3/16-12
B1 DRILL	0.719
B2 DRILL	0.719
L LGTH	1.810
K1 DEPTH	0.350
K2 DEPTH	0.350
C HEX	1.250
MATERIAL	STEEL COMPRESSION

C2403-16-16

$93.23

Attribute: C2403-16-16 (16BT-16BT Straight)

Stock Status: True

TUBE O.D.	1
B1 THREAD	1 5/16-12
B2 THREAD	1 5/16-12
B1 DRILL	0.875
B2 DRILL	0.875
L LGTH	1.810
K1 DEPTH	0.415
K2 DEPTH	0.415
C HEX	1.375
MATERIAL	STEEL COMPRESSION

C2403-16-16-SS

$801.37

Attribute: C2403-16-16-SS (16BT-16BT Straig...)

Stock Status: True

TUBE O.D.	1
B1 THREAD	1 5/16-12
B2 THREAD	1 5/16-12
B1 DRILL	0.875
B2 DRILL	0.875
L LGTH	1.810
K1 DEPTH	0.415
K2 DEPTH	0.415
C HEX	1.375
MATERIAL	STAINLESS STEEL

C2403-20-20

$179.22

Attribute: C2403-20-20 (20BT-20BT Straight)

Stock Status: True

TUBE O.D.	1 1/4
B1 THREAD	1 5/8-12
B2 THREAD	1 5/8-12
B1 DRILL	1.093
B2 DRILL	1.093
L LGTH	1.890
K1 DEPTH	0.415
K2 DEPTH	0.415
C HEX	1.688
MATERIAL	STEEL COMPRESSION

C2403-20-20-SS

$1,306.06

Attribute: C2403-20-20-SS (20BT-20BT Straig...)

Stock Status: True

TUBE O.D.	1 1/4
B1 THREAD	1 5/8-12
B2 THREAD	1 5/8-12
B1 DRILL	1.093
B2 DRILL	1.093
L LGTH	1.89
K1 DEPTH	0.415
K2 DEPTH	0.415
C HEX	1.688
MATERIAL	STAINLESS STEEL

C2403-24-24

$418.21

Attribute: C2403-24-24 (24BT-24BT Straight)

Stock Status: True

TUBE O.D.	1 1/2
B1 THREAD	1 7/8-12
B2 THREAD	1 7/8-12
B1 DRILL	1.344
B2 DRILL	1.344
L LGTH	1.960
K1 DEPTH	0.485
K2 DEPTH	0.485
C HEX	2.000
MATERIAL	STEEL COMPRESSION

C2403-24-24-SS

$2,019.43

Attribute: C2403-24-24-SS (24BT-24BT Straig...)

Stock Status: True

TUBE O.D.	1 1/2
B1 THREAD	1 7/8-12
B2 THREAD	1 7/8-12
B1 DRILL	1.344
B2 DRILL	1.344
L LGTH	1.960
K1 DEPTH	0.485
K2 DEPTH	0.485
C HEX	2.000
MATERIAL	STAINLESS STEEL

C2403-32-32

$747.47

Attribute: C2403-32-32 (32BT-32BT Straight)

Stock Status: True

TUBE O.D.	2
B1 THREAD	2-1/2-12
B2 THREAD	2-1/2-12
B1 DRILL	1.813
B2 DRILL	1.813
L LGTH	2.110
K1 DEPTH	0.485
K2 DEPTH	0.485
C HEX	2.625
MATERIAL	STEEL COMPRESSION

C2403-32-32-SS

$3,758.46

Attribute: C2403-32-32-SS (32BT-32BT Straig...)

Stock Status: True

TUBE O.D.	2
B1 THREAD	2 1/2-12
B2 THREAD	2 1/2-12
B1 DRILL	1.813
B2 DRILL	1.813
L LGTH	2.11
K1 DEPTH	0.485
K2 DEPTH	0.485
C HEX	2.625
MATERIAL	STAINLESS STEEL

Connections	Bite Type
Shape	Straight

ID	10155983
Category	Flareless Bite Type
