Flareless Bite Type

C0318

Scraped 2026-02-15 08:27:18

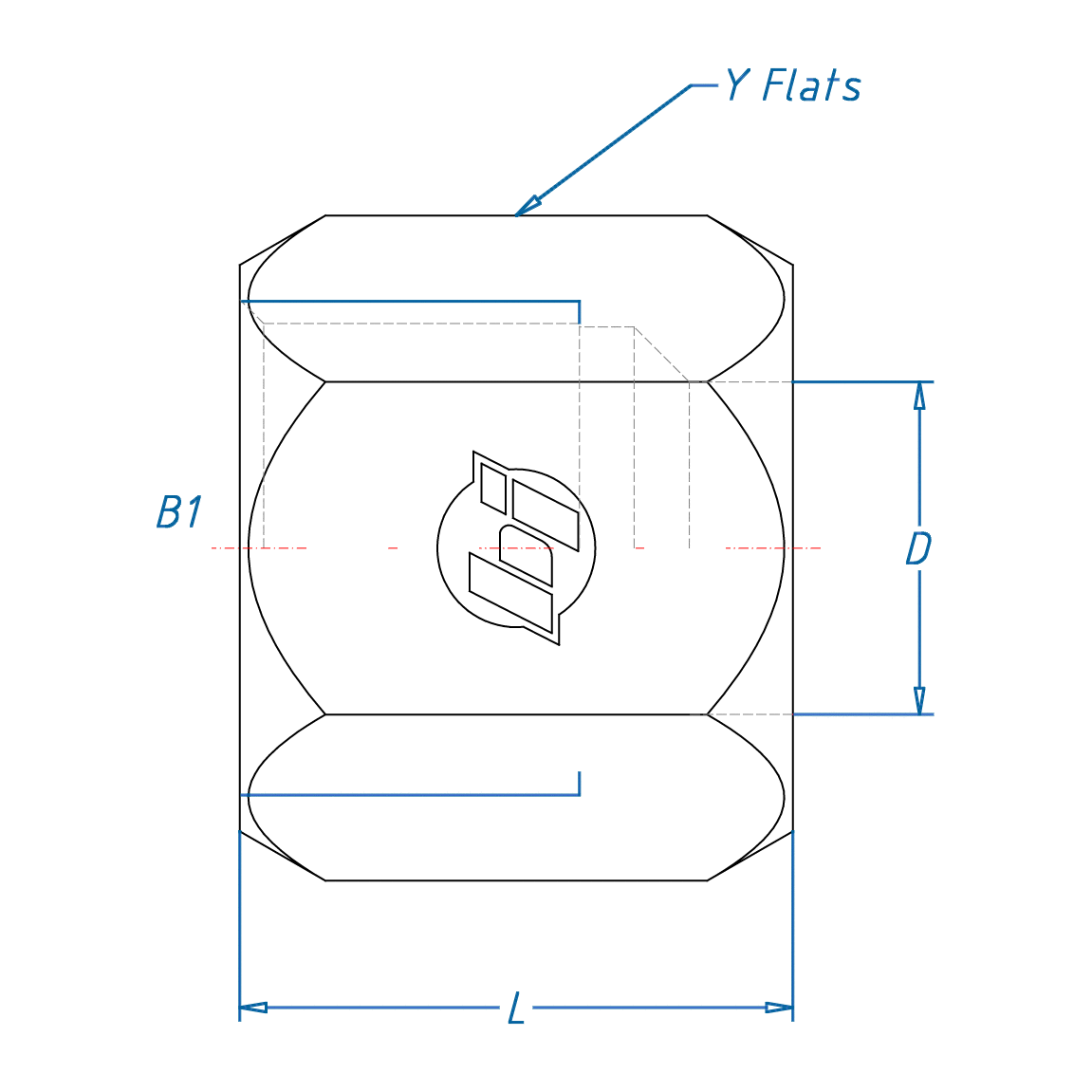

Description

Nut

Variations (26)

C0318-02

$8.08

Attribute: C0318-02 (02BT Tube Nut)

Stock Status: True

TUBE O.D.	1/8
THREAD B1	5/16-24
L LGTH	0.53
D BORE	0.130
C HEX	0.375
MATERIAL	STEEL COMPRESSION

C0318-02-SS

$31.85

Attribute: C0318-02-SS (02BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	1/8
THREAD B1	5/16-24
L LGTH	0.53
D BORE	0.130
C HEX	0.375
MATERIAL	STAINLESS STEEL

C0318-03

$3.10

Attribute: C0318-03 (03BT Tube Nut)

Stock Status: True

TUBE O.D.	3/16
THREAD B1	3/8-24
L LGTH	0.610
D BORE	0.193
C HEX	0.438
MATERIAL	STEEL COMPRESSION

C0318-03-SS

$60.35

Attribute: C0318-03-SS (03BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	3/16
THREAD B1	3/8-24
L LGTH	0.61
D BORE	0.193
C HEX	0.438
MATERIAL	STAINLESS STEEL

C0318-04

$3.74

Attribute: C0318-04 (04BT Tube Nut)

Stock Status: True

TUBE O.D.	1/4
THREAD B1	7/16-20
L LGTH	0.70
D BORE	0.255
C HEX	0.562
MATERIAL	STEEL COMPRESSION

C0318-04-SS

$13.98

Attribute: C0318-04-SS (04BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	1/4
THREAD B1	7/16-20
L LGTH	0.70
D BORE	0.255
C HEX	0.562
MATERIAL	STAINLESS STEEL

C0318-05

$3.80

Attribute: C0318-05 (05BT Tube Nut)

Stock Status: True

TUBE O.D.	5/16
THREAD B1	1/2-20
L LGTH	0.720
D BORE	0.318
C HEX	0.625
MATERIAL	STEEL COMPRESSION

C0318-05-SS

$48.14

Attribute: C0318-05-SS (05BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	5/16
THREAD B1	1/2-20
L LGTH	0.72
D BORE	0.318
C HEX	0.625
MATERIAL	STAINLESS STEEL

C0318-06

$3.15

Attribute: C0318-06 (06BT Tube Nut)

Stock Status: True

TUBE O.D.	3/8
THREAD B1	9/16-18
L LGTH	0.75
D BORE	0.380
C HEX	0.688
MATERIAL	STEEL COMPRESSION

C0318-06-SS

$23.33

Attribute: C0318-06-SS (06BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	3/8
THREAD B1	9/16-18
L LGTH	0.75
D BORE	0.380
C HEX	0.688
MATERIAL	STAINLESS STEEL

C0318-08

$3.84

Attribute: C0318-08 (08BT Tube Nut)

Stock Status: True

TUBE O.D.	1/2
THREAD B1	3/4-16
L LGTH	0.84
D BORE	0.505
C HEX	0.875
MATERIAL	STEEL COMPRESSION

C0318-08-SS

$29.34

Attribute: C0318-08-SS (08BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	1/2
THREAD B1	3/4-16
L LGTH	0.84
D BORE	0.505
C HEX	0.875
MATERIAL	STAINLESS STEEL

C0318-10

$6.60

Attribute: C0318-10 (10BT Tube Nut)

Stock Status: True

TUBE O.D.	5/8
THREAD B1	7/8-14
L LGTH	0.920
D BORE	0.631
C HEX	1.000
MATERIAL	STEEL COMPRESSION

C0318-10-SS

$51.39

Attribute: C0318-10-SS (10BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	5/8
THREAD B1	7/8-14
L LGTH	0.92
D BORE	0.631
C HEX	1.000
MATERIAL	STAINLESS STEEL

C0318-12

$8.66

Attribute: C0318-12 (12BT Tube Nut)

Stock Status: True

TUBE O.D.	3/4
THREAD B1	1 1/16-12
L LGTH	0.970
D BORE	0.756
C HEX	1.250
MATERIAL	STEEL COMPRESSION

C0318-12-SS

$76.34

Attribute: C0318-12-SS (12BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	3/4
THREAD B1	1 1/16-12
L LGTH	0.97
D BORE	0.756
C HEX	1.250
MATERIAL	STAINLESS STEEL

C0318-14

$17.67

Attribute: C0318-14 (14BT Tube Nut)

Stock Status: True

TUBE O.D.	7/8
THREAD B1	1 3/16-12
L LGTH	1.000
D BORE	0.881
C HEX	1.375
MATERIAL	STEEL COMPRESSION

C0318-14-SS

$312.72

Attribute: C0318-14-SS (14BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	7/8
THREAD B1	1 3/16-12
L LGTH	1.00
D BORE	0.881
C HEX	1.375
MATERIAL	STAINLESS STEEL

C0318-16

$17.37

Attribute: C0318-16 (16BT Tube Nut)

Stock Status: True

TUBE O.D.	1
THREAD B1	1-5/16-12
L LGTH	1.050
D BORE	1.006
C HEX	1.500
MATERIAL	STEEL COMPRESSION

C0318-16-SS

$92.54

Attribute: C0318-16-SS (16BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	1
THREAD B1	1 5/16-12
L LGTH	1.05
D BORE	1.006
C HEX	1.500
MATERIAL	STAINLESS STEEL

C0318-20

$25.74

Attribute: C0318-20 (20BT Tube Nut)

Stock Status: True

TUBE O.D.	1 1/4
THREAD B1	1 5/8-12
L LGTH	1.05
D BORE	1.260
C HEX	2.000
MATERIAL	STEEL COMPRESSION

C0318-20-SS

$309.37

Attribute: C0318-20-SS (20BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	1 1/4
THREAD B1	1 5/8-12
L LGTH	1.05
D BORE	1.260
C HEX	2.000
MATERIAL	STAINLESS STEEL

C0318-24

$40.17

Attribute: C0318-24 (24BT Tube Nut)

Stock Status: True

TUBE O.D.	1 1/2
THREAD B1	1 7/8-12
L LGTH	1.050
D BORE	1.510
C HEX	2.250
MATERIAL	STEEL COMPRESSION

C0318-24-SS

$418.80

Attribute: C0318-24-SS (24BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	1 1/2
THREAD B1	1 7/8-12
L LGTH	1.03
D BORE	1.510
C HEX	2.250
MATERIAL	STAINLESS STEEL

C0318-32

$187.20

Attribute: C0318-32 (32BT Tube Nut)

Stock Status: True

TUBE O.D.	2
THREAD B1	2-1/2-12
L LGTH	1.120
D BORE	2.014
C HEX	2.875
MATERIAL	STEEL COMPRESSION

C0318-32-SS

$592.31

Attribute: C0318-32-SS (32BT Tube Nut Stnls)

Stock Status: True

TUBE O.D.	2
THREAD B1	2 1/2-12
L LGTH	1.12
D BORE	2.014
C HEX	2.875
MATERIAL	STAINLESS STEEL

General Attributes

Connections	Other
Shape	Nut

PDF Documents

Download CAD and Drawings Open PDF

Source Links

Brennan product page API JSON for this product

Images

Raw Fields

ID	10155906
Category	Flareless Bite Type
