Description
INS-INS-SCREWED BONNET NEEDLE VAVLE. STRAIGHT FLOW. ONE-LOK SINGLE FERRULE INSTRUMENTATION
Description
Variations (1)
NH-99S-00-SS-HL-V-1/2
$0.00Attribute: NH-99S-00-SS-HL-V-1/2 (08INS-08I...)
Stock Status: True
| SERIES | H-99 |
|---|---|
| MAX WORKING PRESSURE | 10,000PSI |
| MAX WORKING TEMPERATURE | 1,112 DEGREES F |
| BODY RAW MATERIAL | INVESTMENT CASTING |
| STRUCTURE | STANDARD |
| VALVE TYPE | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| END CONNECTION TYPE | ONE-LOK INS |
| STEM | V STEM |
| INLET CONNECTION (1) | 1/2″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ ONE-LOK INS |
| PACKING | PTFE |
| TREATMENT | STANDARD |
| HANDLE TYPE | METAL BAR (316SS) |
| ORIFICE | 5.0 |

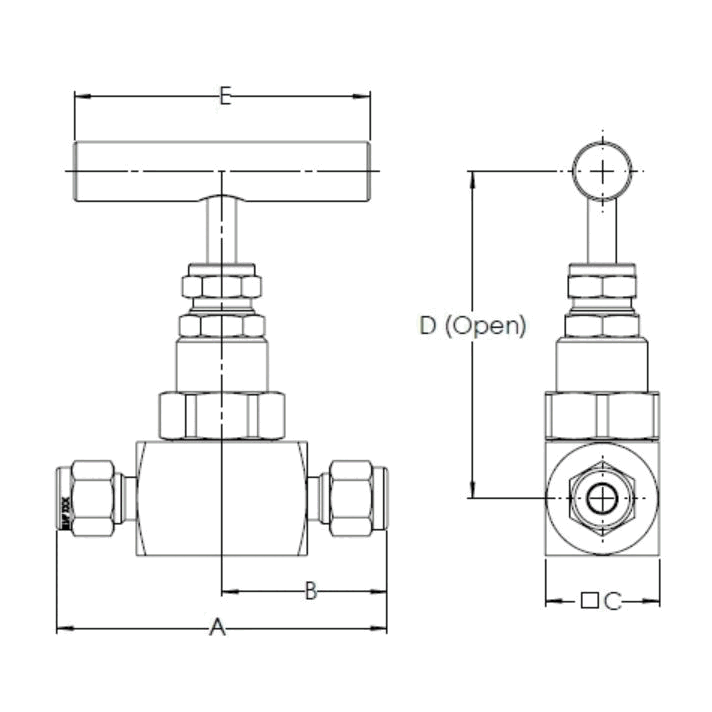

| A (MM) | 78.3 |
| B (MM) | 39.2 |
| C (MM) | 25.0 |
| D (MM) | 75.0 |
| E (MM) | 50.0 |
| REPLACEMENT SEAL KIT | NZ-99-SK-1/2-PT |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Straight |
