NH-911-95

Attribute: NH-911-95-SS-NL-1/2 (08MP-08INS-...)

Stock Status: True

SERIES	H-911-95
MAXIMUM WORKING PRESSURE	6000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT / LET-LOK INS
END CONNECTION SIZE	1/2″
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
O-RING SEAT MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD

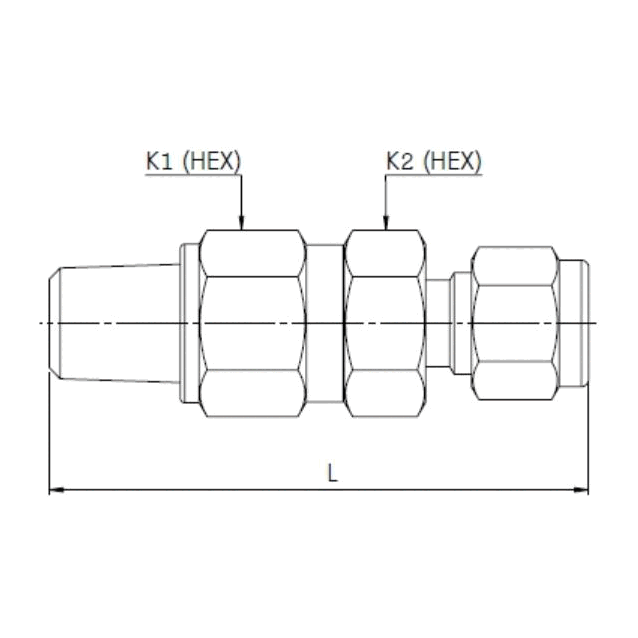

L OVERALL LENGTH (MM)	72.4
K1 HEX (IN)	1″
K2 HEX (IN)	1″
