NH-911-80

Attribute: NH-911-80-SS-N-1/4 (04MP-04MP-EX...)

Stock Status: True

SERIES	H-911-80
MAXIMUM WORKING PRESSURE	6000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	MALE NPT
END CONNECTION SIZE	1/4″
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
O-RING SEAT MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD

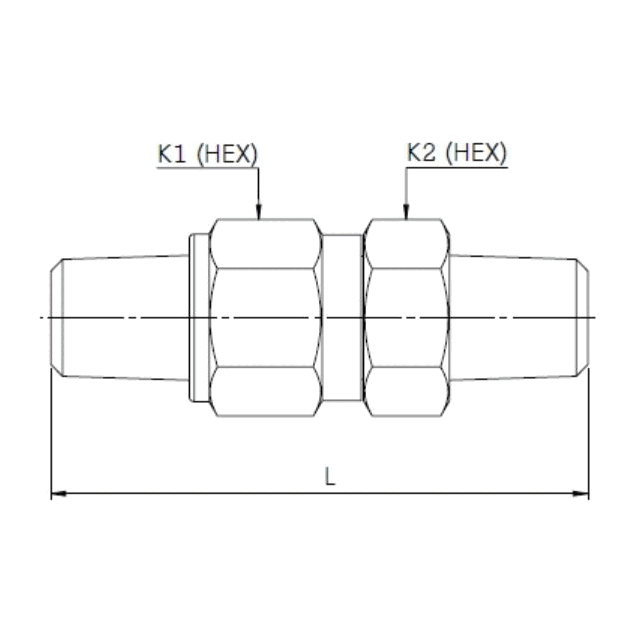

L OVERALL LENGTH (MM)	55.1
K1 HEX (IN)	11/16″
K2 HEX (IN)	11/16″
