NH-880-ANGLE

Attribute: NH-880M-SS-N-1/4-A (04MP-04MP-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-880 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	MALE NPT
BODY SIZE	MEDIUM
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTIN (2)	1/4″ MALE NPT
VALVE PATTERN	90
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.75

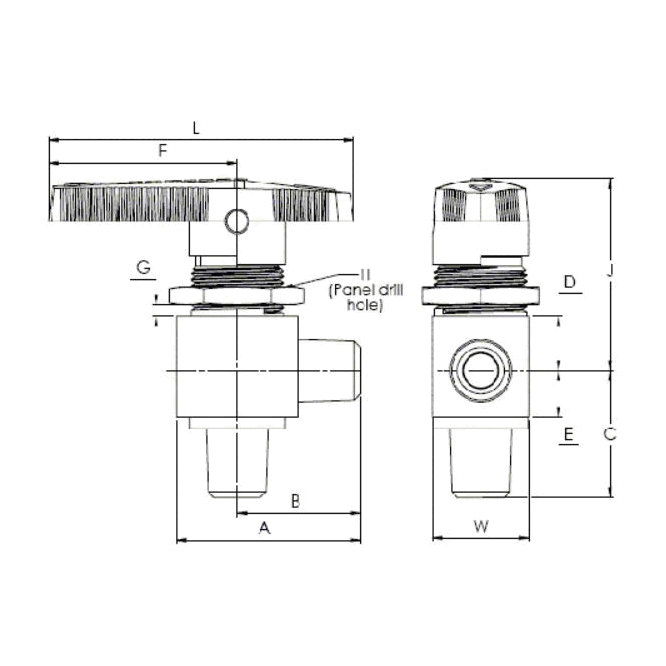

A (MM)	50.8
B (MM)	25.4
C (MM)	26.2
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8
