Description
MP-MP-BALL VALVE STRAIGHT FLOW
Description
Variations (1)
NH-880M-SS-N-1/4
$0.00Attribute: NH-880M-SS-N-1/4 (04MP-04MP-BALL...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-880 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | MALE NPT |
| BODY SIZE | MEDIUM |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTIN (2) | 1/4″ MALE NPT |
| VALVE PATTERN | STRAIGHT |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.2 |

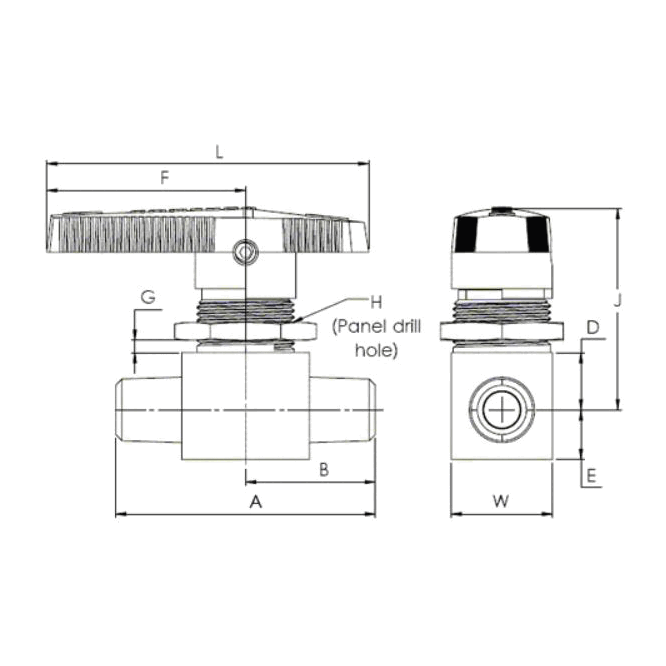

| A (MM) | 50.8 |
| B (MM) | 25.4 |
| C (MM) | 26.2 |
| D (MM) | 11.2 |
| E (MM) | 9.7 |
| F (MM) | 38.9 |
| L (MM) | 63.0 |
| G (MM) | 4.8 |
| H (MM) | 19.8 |
| J (MM) | 37.3 |
| W (MM) | 19.8 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
